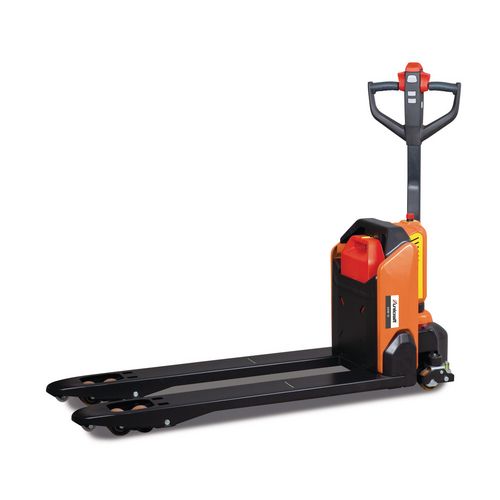

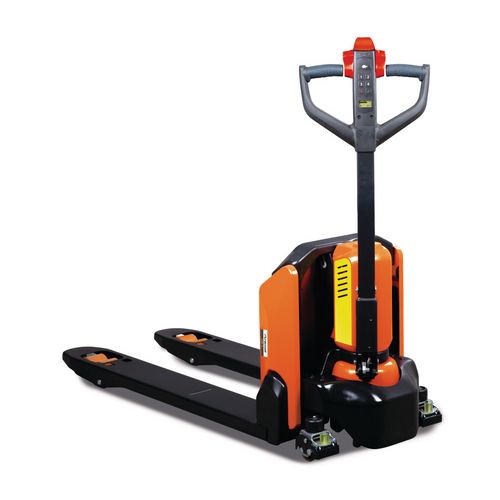

    Electric pallet truck

    EHW 15

    All-electric version with lithium-ion battery

    2.329,00 EUR excl. Tax / pc(s).
    2.794,80 EUR incl. 20% Tax / pc(s).
    Promotional price *
    2.199,00 EUR excl. Tax / pc(s).
    2.638,80 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Safetydatasheet

    Art.-No. 6160115

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

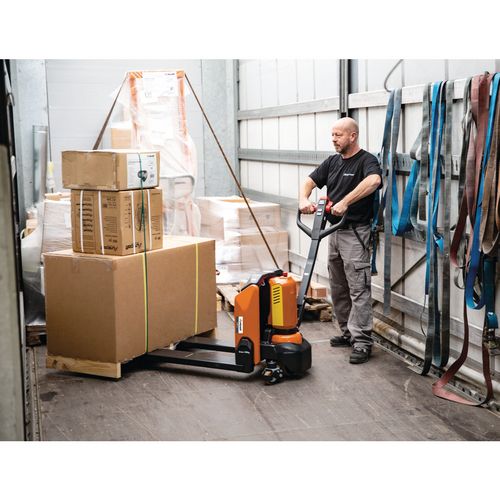

    • Very manoeuvrable and low overall weight, also suitable for use in confined spaces, on the lifting platform or as a take-away device on trucks
    • Stepless, comfortable control of the driving speed via rocker button
    • Low-speed function allows slow manoeuvring with vertical drawbar – perfect in confined spaces!

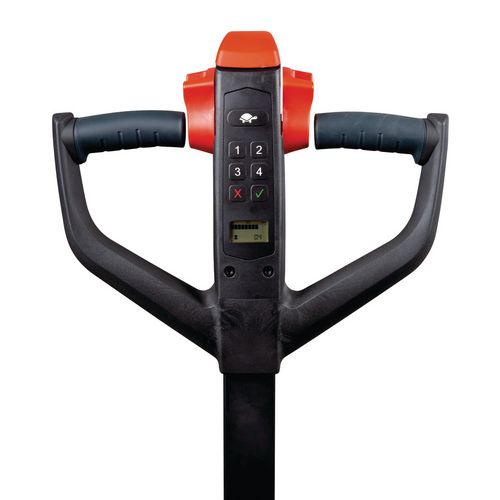

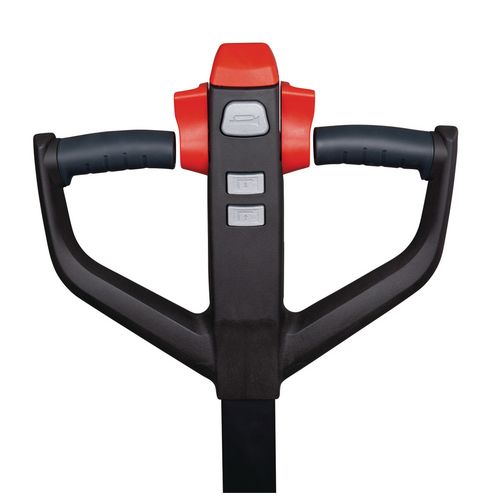

    • Ergonomic drawbar head for high operating comfort
    • Powerful and maintenance-free lithium-ion battery
    • High availability thanks to very short charging time of only two and a half to three hours and possibility of intermediate charging during breaks or during downtimes
    • Integrated battery management system ensures long-term maintenance and safety during charging
    • Battery discharge indicator on the drawbar
    • Battery easy to remove and use
    • CAN-Bus interface and Curtis maintenance control for easy and fast diagnostics (external diagnostic software required)



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Safetydatasheet
    Load capacity1.5 t
    Load-bearing width540 mm
    Fork width160 mm
    Fork length1150 mm
    Lifting range80 – 195 mm
    Lifting speed0.02 m/s
    Travel speed4.6 km/h
    Turning radius1330 mm
    Max. grade ability loaded6 %
    Max. grade ability unloaded16 %
    VPE1
    Dimensions and weights

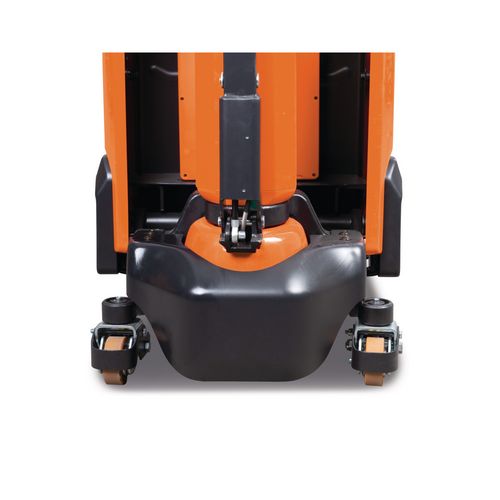

    Steering rollers diameter210 mm
    Steering rollers width70 mm
    Fork roller diameter80 mm
    Fork roller width93 mm
    Length approx.1530 mm
    Width/depth approx.540 mm
    Height approx.1160 mm
    Weight approx.123 kg
    Electrical Data
    Power drive motor0.65 kW
    Lifting motor output0.5 kW
    Battery voltage24 V
    Battery capacity20 Ah
    Unit: pc(s).
    Packaging unit: 1



    Side support rollers included



    Steering rollers materialPolyurethane
    Fork roller materialPolyurethane
    Fork roller designTandem
    Battery discharge indicatorLCD
    Low-speed function✔
    Unlockwith pin code
    Hour meter✔
    Lateral support rollers✔
