    Sliding table band saws

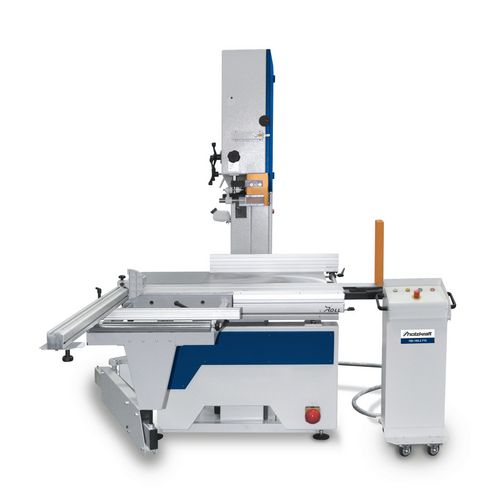

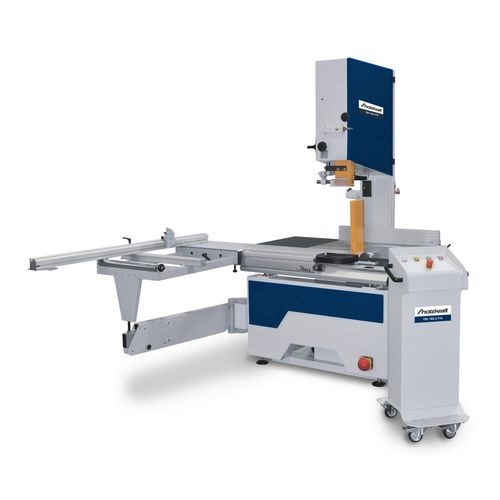

    FBS 940-3 F15

    With sliding carriage and boom for cutting beams, blocks and insulating material

    32.390,00 EUR excl. Tax / pc(s).
    38.868,00 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5152916

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Particularly quiet and precise running thanks to torsion-resistant machine housing
    • Massive cast iron flywheels and chip wipers
    • Cast iron saw table with ground and polished surface
    • Smooth-running aluminum sliding carriage with telescopic crosscut fence with folding stops
    • Aluminum parallel fence with round rod guide
    • High operating comfort due to mobile control panel which can move along in the working radius
    • Special saw band guide at the top and bottom
    • Saw band tension indicator
    • Integrated lubrication system with felt glides

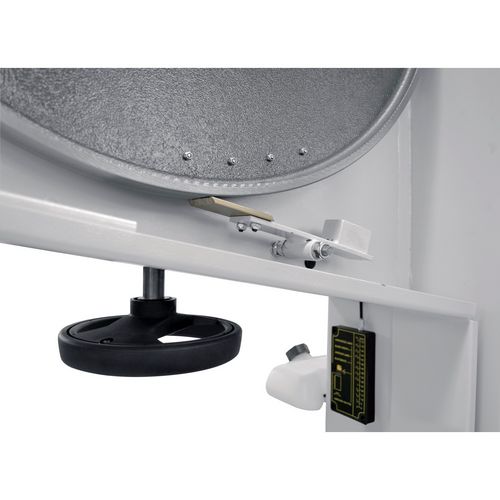

    • Precise cutting height adjustment via toothed rack with millimetre scale
    • Self-braking motor
    • Automatic star-delta start



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Cutting ranges
    Max. cutting height 90°560 mm
    Max. cutting width910 mm
    Dimensions and weights
    Weight approx.1000 kg
    Electrical Data
    Delivery power11 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter2 x 140 mm
    Saw band
    Speed(s)1500 m/min
    Length6670 mm
    Work top(s)
    Sliding carriage length1500 mm
    Sliding carriage width330 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1
