Sliding table band saws

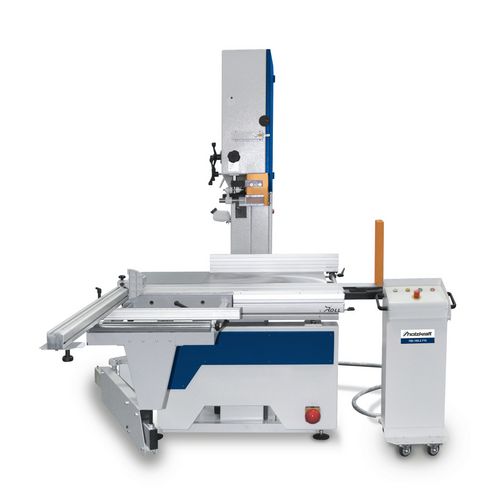

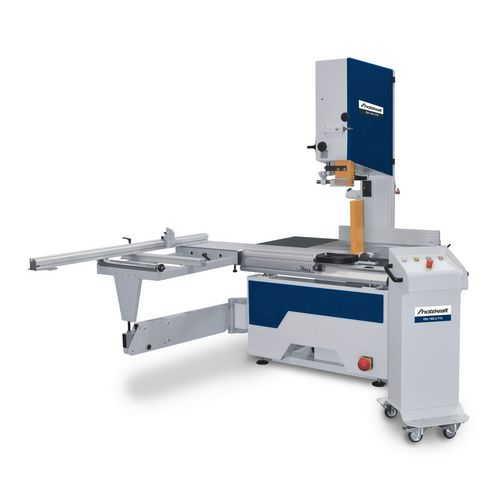

FBS 940-2 F32
With sliding carriage and boom for cutting beams, blocks and insulating material
32.550,00
EUR excl. Tax / pc(s).
39.060,00
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5152932
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Particularly quiet and precise running thanks to torsion-resistant machine housing
- Massive cast iron flywheels and chip wipers
- Cast iron saw table with ground and polished surface
- Smooth-running aluminum sliding carriage with telescopic crosscut fence with folding stops
- Aluminum parallel fence with round rod guide
- High operating comfort due to mobile control panel which can move along in the working radius
- Special saw band guide at the top and bottom
- Saw band tension indicator
- Integrated lubrication system with felt glides
- Precise cutting height adjustment via toothed rack with millimetre scale
- Self-braking motor
- Automatic star-delta start
| Cutting ranges | |
|---|---|
| Max. cutting height 90° | 560 mm |
| Max. cutting width | 910 mm |
| Dimensions and weights | |
|---|---|
| Weight approx. | 1030 kg |
| Electrical Data | |
|---|---|
| Delivery power | 11 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter | 2 x 140 mm |
| Saw band | |
|---|---|
| Speed(s) | 1500 m/min |
| Length | 6670 mm |
| Work top(s) | |
|---|---|
| Sliding carriage length | 3200 mm |
| Sliding carriage width | 330 mm |
| VPE | 1 |
