    Brandimage to Product LLB 30

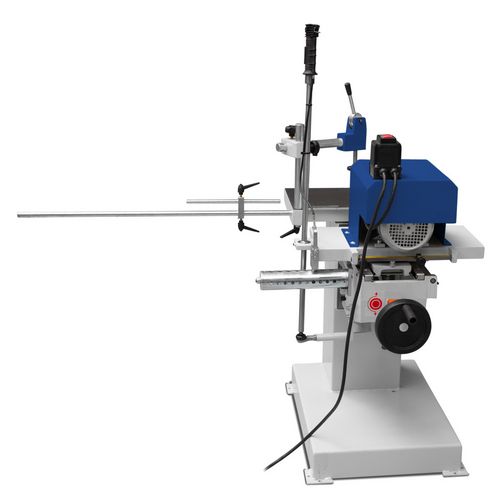

    Slot mortising machine

    LLB 30

    Entry level machine for long hole drilling

    3.799,00 EUR excl. Tax / pc(s).
    4.558,80 EUR incl. 20% Tax / pc(s).
    Promotional price *
    3.199,00 EUR excl. Tax / pc(s).
    3.838,80 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Art.-No. 5320030

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Easy to use via one-handed levers for quick and accurate work
    • Drill head stored on hardened prism guides with ball contact system

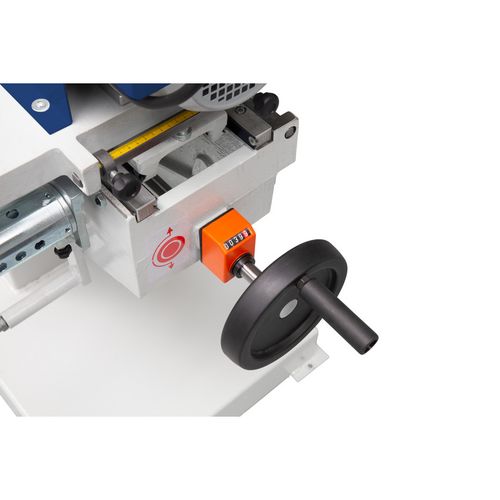

    • Height adjustment of the drill head via hand wheel with numerical display
    • Manual centre spanner as standard
    • Stable steel grey casting construction
    • Powerful engine
    • Standard dowel boring device with grid 16/22/25/32
    • Clamp strikes allow the drilling head range to be adjusted easily and quickly



    • Simple one-handed lever control
    • Dowel boring device
    • Drill head height adjustable



    Drilling width250 mm
    Max. drilling depth at 90°170 mm
    Work table length580 mm
    Work table width300 mm
    Drill head height adjustment200 mm
    Tool clamping diameter0 – 20 mm
    Spindle speed(s)2800 min¯¹
    VPE1
    Dimensions and weights
    Length approx.1500 mm
    Width/depth approx.920 mm
    Height approx.1400 mm
    Weight approx.160 kg
    Electrical Data
    Drive motor output2,2 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

    • Manual eccentric clamp



    Stürmer Maschinen GmbH
    Dr.-Robert-Pfleger-Str. 26
    96103 Hallstadt
    Deutschland / Germany
    info@stuermer-maschinen.de

    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.

    Optional parts

    Optional parts can not be retrofitted and are available only when ordering new machines.
