| Cutting ranges | |
|---|---|
| 0° round (pipe) | 350 mm |
| 0° round (full material) | 350 mm |
| 0° rectangle horizontal (hollow) | 500 x 340 mm |
| 0° rectangle horizontal vertical cut | 500 x 340 mm |
| 0° bundle (pipe) | 500 x 180 mm |
| -45° round (pipe) | 350 mm |
| -45° round (full material) | 350 mm |
| -45° rectangle horizontal (hollow) | 380 x 340 mm |
| -60° round (pipe) | 230 mm |
| -60° round (full material) | 130 mm |
| -60° rectangle horizontal (hollow) | 220 x 340 mm |
| +45° round (pipe) | 350 mm |
| +45° round (full material) | 350 mm |
| +45° rectangle horizontal (hollow) | 350 x 340 mm |

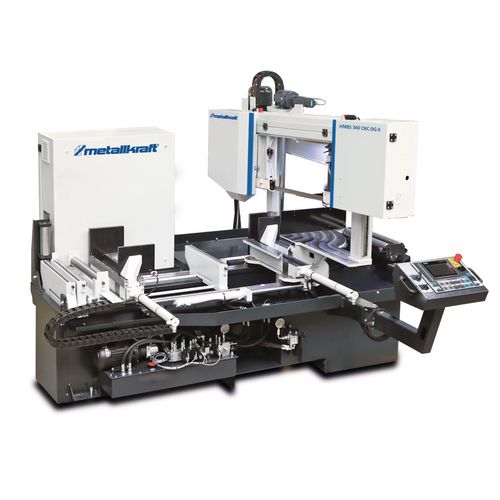

Fully automatic two-column horizontal metal band saw
HMBS 340 CNC-DG-X
With ARP system for miter cuts from +60 ° to -45 ° and material feed with 1000 mm length
47.850,00
EUR excl. Tax / pc(s).
57.420,00 EUR incl. 20% Tax / pc(s).
57.420,00 EUR incl. 20% Tax / pc(s).
Promotional price *
46.999,00 EUR excl. Tax / pc(s).56.398,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 3691341
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Designed for industrial use
- Extremely stable and robust design
- Saw band drive via low-maintenance, oil-lubricated worm gear unit
- With SIEMENS Simatic control and SIEMENS electrics

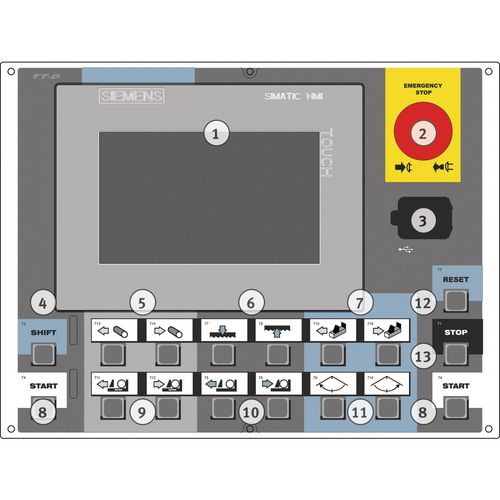

- Operation on modern and powerful Siemens HMI multi-touch panel
- Control of material and saw feed via recirculating ball screws
- Robust three-phase motor equipped with overload protection
- Frequency converter as standard for infinitely variable adjustment of the saw band speed from 20 - 100 m/min
- Saw band guide with adjustable carbide tips for a precise cut
- Hydraulic band tensioning device
- Saw arm can be tilted from -45 to +60 degrees
- Fully automatic miter adjustment on both sides
- Swiveling control panel

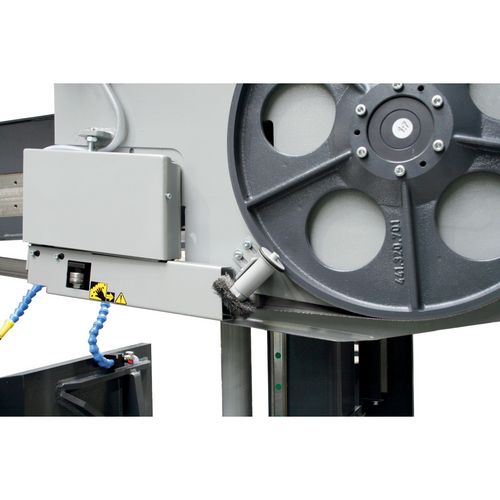

- Chip clearing brush for optimal cleaning and maintenance of the saw band
- 64-bit control system
- Automatic material feed of 970 mm
- Pressure reducer vice
| Dimensions and weights | |
|---|---|
| Max. length | 3050 mm |
| Max. width/depth | 3050 mm |
| Max. height | 2100 mm |
| Length approx. | 3030 mm |
| Width/depth approx. | 3150 mm |
| Height approx. | 2000 mm |
| Weight approx. | 2150 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 3.0 kW |
| Engine power hydraulic pump | 0.6 kW |
| Engine power coolant pump | 0.12 kW |
| Absorbed power | 4.5 kW |
| Total connected load | 8.5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine data | |
|---|---|
| Saw band speed(s) | 20 – 100 m/min |
| Speed levels | worm gear |
| Saw band length | 4780 mm |
| Saw band width | 34 mm |
| Saw band thickness | 1.1 mm |
| Cutting angle | 4 ° |
| Feed | ball screw |
| Lifting the saw bow | 350 mm |
| Material feed | |
|---|---|
| Speed | 3.82 m/min |
| Material feed max. at 1 x feed rate | 1000 mm |
| Material feed max. | 9999 mm |
| Material feed min. | 1 mm |
| Table height material feed | 800 mm |
| Cut-off length min. | 1 mm |
| Material diameter min. | 30 mm |
| Min. remaining workpiece length 30° | 310 mm |
| Min. residual workpiece length 45° | 750 mm |
| Min. residual workpiece length | 100 mm |
| Min. remaining workpiece length automatic | 310 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Saw band
- Coolant pump
- Operating tool
- Workplace lighting
- Safety light barrier
