| Circular saw unit | |
|---|---|
| Max. cutting width with rip fence | 1300 mm |
| Max. cross cut width left from saw blade | 3200 mm |
| Saw blade angle | 90 – 45 ° |
| Max. cutting height 90° | 140 mm |
| Max. cutting height 45° | 100 mm |
| (Main) saw blade diameter | 400 mm |
| (Main) saw blade speed | 3500/4500 min¯¹ |

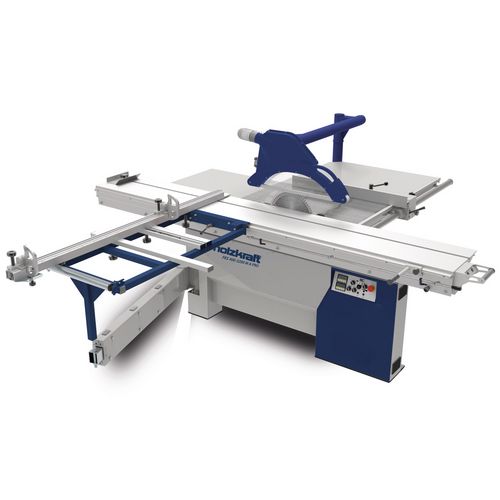

Sliding table saw
FKS 400-3200 M A PRO
Heavy-duty sliding table saw with scoring unit and motorized saw blade adjustment
15.850,00
EUR excl. Tax / pc(s).
19.020,00
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5200402
Are you interested in this product?
Put a request
Find Trader
Productdetails

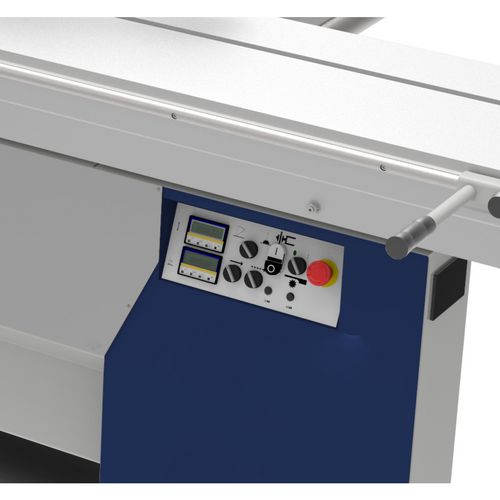

- Saw blade tilt and height adjustment motorized and with digital display

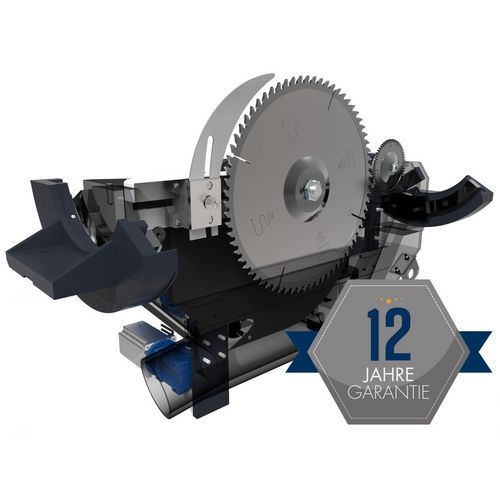

- Main saw blade with belt drive and speeds of 3500/4500 min¯¹
- High dead weight ensures vibration-free operation

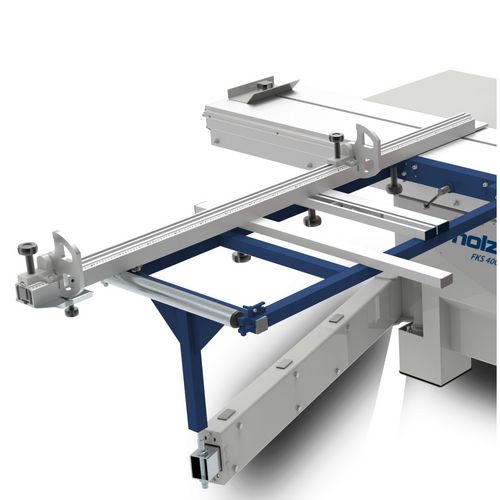

- Large outrigger table with material roller

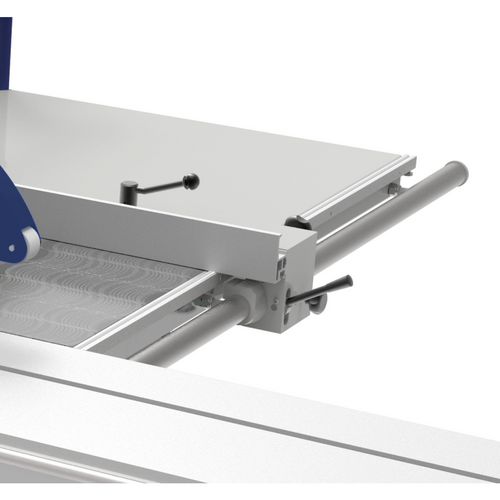

- Rip fence with round bar guide and digital position indicator
- Extendable aluminum longitudinal fence with two folding fences

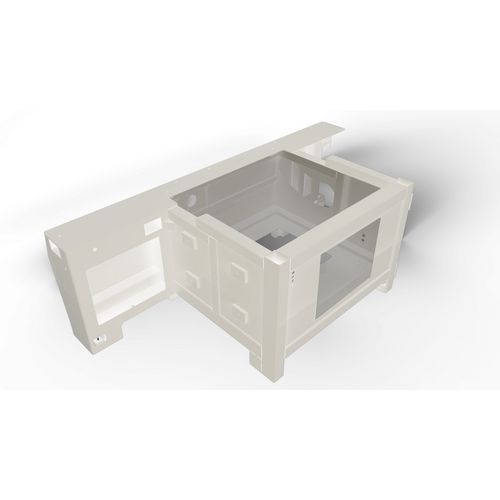

- 7.5 kW main motor mounted on a robust cast iron frame

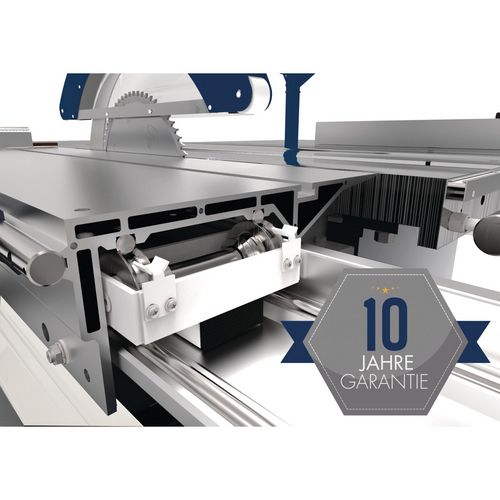

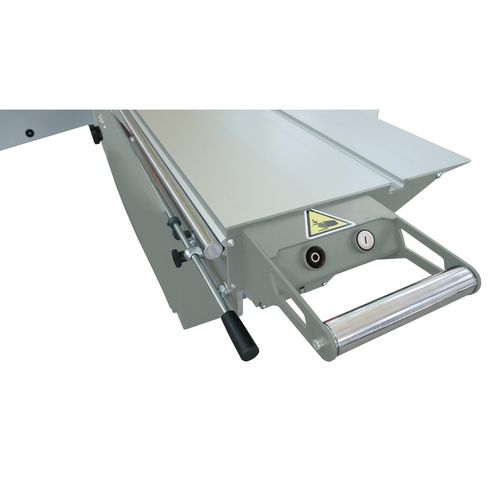

- Format slide carriage with four bearings made of anodized aluminium with high torsional rigidity
- Table extension and table extension made of strong sheet metal as standard

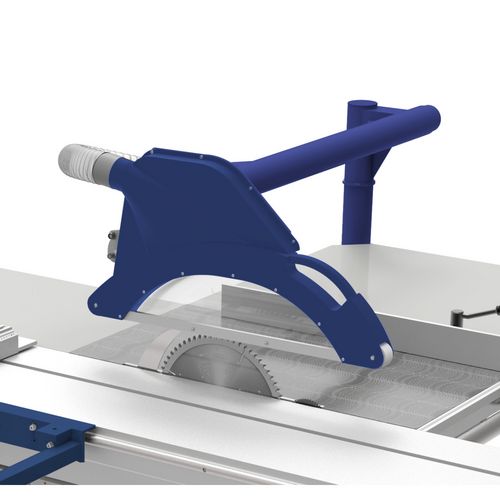

- Large pendulum guard can be conveniently raised using a gas pressure spring

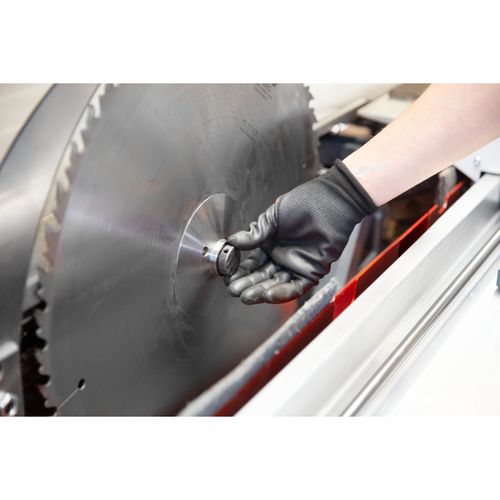

- Quick and easy saw blade change thanks to Rapid clamping system
- Multiple locking mechanism on the sliding table
| Dimensions and weights | |
|---|---|
| Length approx. | 3386 mm |
| Width/depth approx. | 3600 mm |
| Height approx. | 1310 mm |
| Weight approx. | 850 kg |
| Electrical Data | |
|---|---|
| Absorbed power drive motor | 7.5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter bottom | 120 mm |
| Saw blade protection extraction port diameter | 80 mm |
| Noise emission | |
|---|---|
| Sound pressure level | 96.5 dB(A) |
| Pre-scoring unit | |
|---|---|
| Scoring saw blade speed | 8000 min¯¹ |
| Sliding carriage and table | |
|---|---|
| Sliding carriage length | 3200 mm |
| Sliding carriage width | 416 mm |
| Sliding carriage height | 890 mm |
| Table length | 1008 mm |
| Table width | 554 mm |
| Work height | 885 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Scoring saw unit | with separate scoring motor |
| Anodised aluminium sliding sizing carriage | ✔ |
| Handle for sliding carriage | ✔ |
| Claming frame | with extendable aluminum longitudinal stop |
| Material roll on claming frame | ✔ |
| Saw rip fence | with round rod guide |
| Stops | Two professional folding stops |
| Table broadening | ✔ |
| Table lengthening | ✔ |
| Saw blade cover | ✔ |
| Height adjustment and tilting of the saw unit | motorized, with digital display |
