| Cutting ranges | |
|---|---|
| 0° round (pipe) | 460 mm |
| 0° round (full material) | 460 mm |
| 0° rectangle horizontal (hollow) | 600 x 460 mm |
| 0° bundle (pipe) | 600 x 250 mm |
| -45° round (pipe) | 460 mm |
| -45° round (full material) | 460 mm |
| -45° rectangle horizontal (hollow) | 470 x 240 mm |
| -60° round (pipe) | 320 mm |
| -60° round (full material) | 320 mm |
| -60° rectangle horizontal (hollow) | 330 x 180 mm |
| +45° round (pipe) | 460 mm |
| +45° round (full material) | 460 mm |
| +45° rectangle horizontal (hollow) | 470 x 250 mm |
| +60° round (pipe) | 320 mm |
| +60° round (full material) | 320 mm |
| +60° rectangle horizontal (hollow) | 320 x 240 mm |

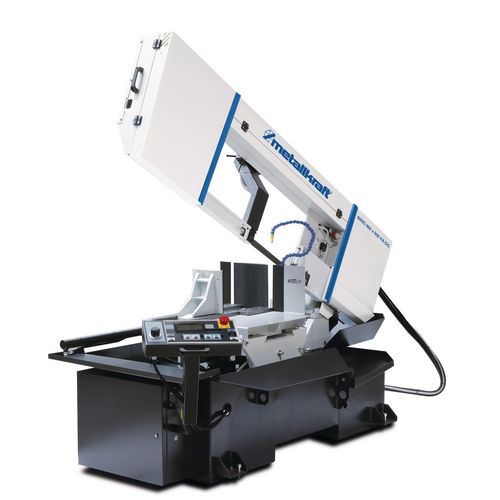

Semi-automatic swing frame metal band saw
BMBS 460 x 600 HA-DG
For miter cuts from + 60 ° to -60 ° with frequency converter
22.950,00
EUR excl. Tax / pc(s).
27.540,00 EUR incl. 20% Tax / pc(s).
27.540,00 EUR incl. 20% Tax / pc(s).
Promotional price *
20.999,00 EUR excl. Tax / pc(s).25.198,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 3690067
Are you interested in this product?
Put a request
Find Trader
Productdetails
- For sawing tubes and solid materials made of steel, stainless steel, tool steel, non-ferrous metals and plastics
- With fully hydraulic controlled sawing functions
- Saw blade drive with low-maintenance, oil-lubricated worm gear
- With robust three-phase motor with overload protection

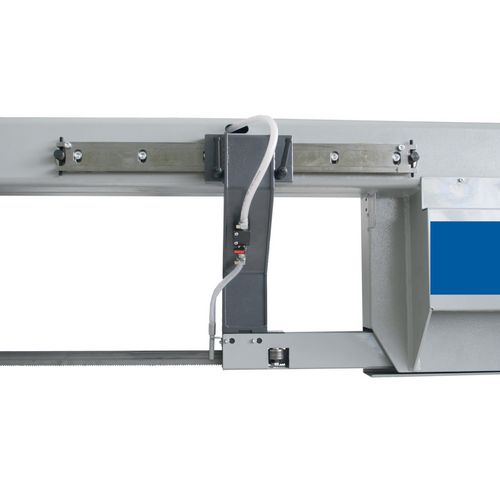

- Saw band guide with adjustable carbide plates for a precise cut
- With chip removal brush for optimal cleaning and maintenance of the saw blade
- Cooling system directly on saw blade guides
- The vice is equipped as standard with a long-stroke hydraulic cylinder, eliminating the need to pre-set on the material to be sawn material cross section
- The jaws can move on the entire clamping range
- BRP saw blade monitoring
- Standard frequency converter for infinitely variable adjustment of the saw band speed from 20 to 100 m/min
- With STOP function - sawing can be interrupted at any time by pressing a switch. The tape continues running while the arm moves out of the cutting channel

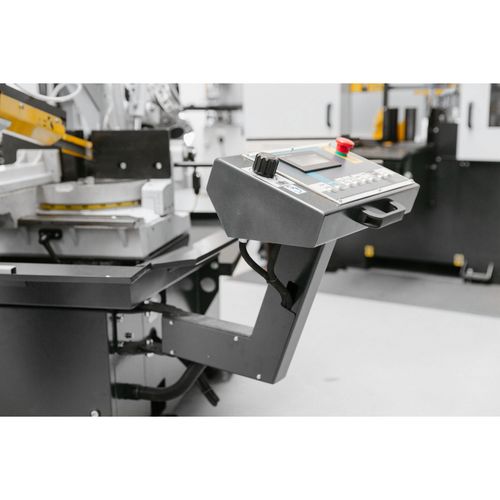

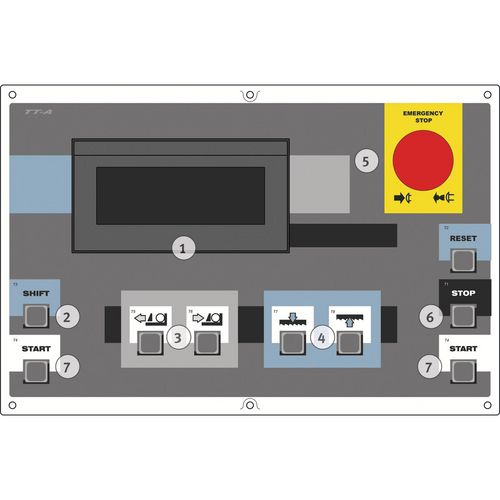

- Swivel control panel
- Digital angle display
| Dimensions and weights | |
|---|---|
| Length approx. | 3200 mm |
| Width/depth approx. | 1140 mm |
| Height approx. | 2660 mm |
| Weight approx. | 1195 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 4 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine data | |
|---|---|
| Saw band speed(s) | 20 – 100 m/min |
| Speed levels | stepless |
| Saw band length | 5380 mm |
| Saw band width | 41 mm |
| Saw band thickness | 1.3 mm |
| Material feed | |
|---|---|
| Table height material feed | 800 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Saw band
- Operating tool
- Coolant pump
