| Cutting ranges | |
|---|---|
| 0° round (pipe) | 300 mm |
| 0° round (full material) | 180 mm |
| 0° rectangle horizontal (hollow) | 320 x 290 mm |
| 0° bundle (pipe) | 320 x 160 mm |
| -45° round (pipe) | 300 mm |
| -45° round (full material) | 110 mm |
| -45° rectangle horizontal (hollow) | 300 x 280 mm |
| -60° round (pipe) | 200 mm |
| -60° round (full material) | 80 mm |
| -60° rectangle horizontal (hollow) | 190 x 200 mm |
| +45° round (pipe) | 270 mm |
| +45° round (full material) | 110 mm |
| +45° rectangle horizontal (hollow) | 270 x 200 mm |

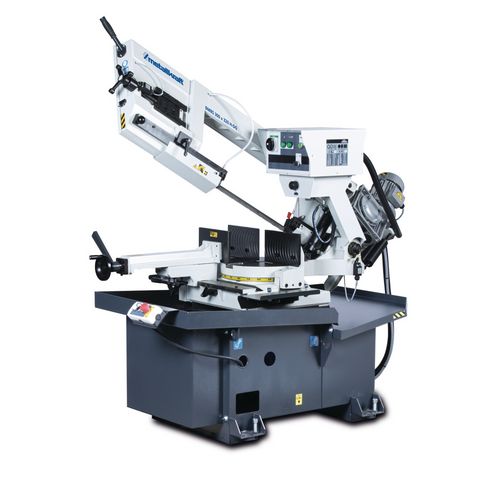

Hydraulic swing frame metal band saw
BMBS 300 x 320 H DG
For miter cuts from + 60 ° to -45 °
6.990,00
EUR excl. Tax / pc(s).
8.388,00 EUR incl. 20% Tax / pc(s).
8.388,00 EUR incl. 20% Tax / pc(s).
Promotional price *
6.199,00 EUR excl. Tax / pc(s).7.438,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 3680012
Are you interested in this product?
Put a request
Find Trader
Productdetails
- For sawing hollow sections and solid materials made of steel, stainless steel, tool steel, non-ferrous metals and plastics
- Sawing functions hydraulically controlled
- Wired remote control to start the machine and to lower the saw arm
- Saw arm tilted by 25°, thus longer blade life
- Swiveling saw arm from + 60° to -45°
- Saw blade drive with low-maintenance, oil-lubricated worm gear
- Robust three-phase motor equipped with overload protection

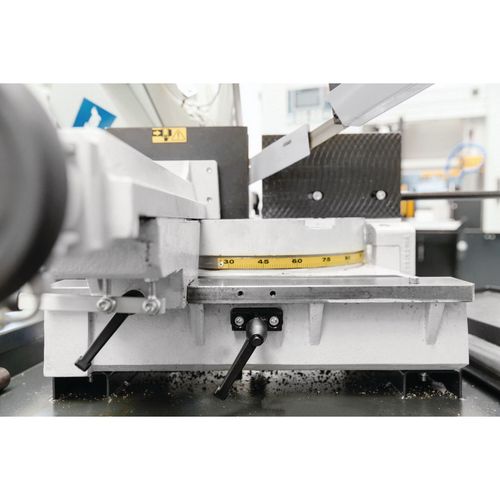

- Bearing mounted turntable
- Chip removal brush for optimal cleaning and maintenance of the saw blade
- Tensioning vice with manual quick release device of the material and quick release device for lateral adjustment of the vise

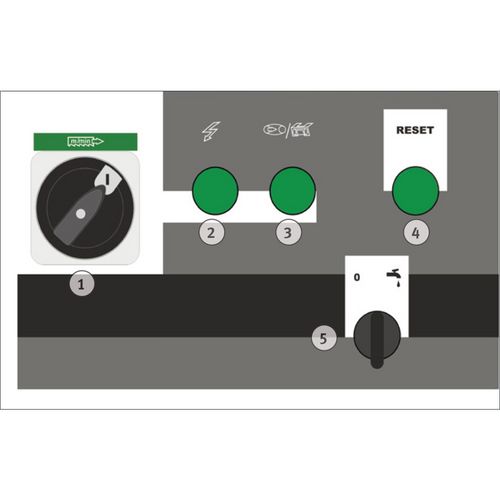

- Swivel control panel
- With belt tension monitoring
- Robust belt guides with adjustable carbide plates for a precise cut
| Dimensions and weights | |
|---|---|
| Length approx. | 2050 mm |
| Width/depth approx. | 1170 mm |
| Height approx. | 2040 mm |
| Weight approx. | 605 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1.3/1.8 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine data | |
|---|---|
| Saw band speed(s) | 35 / 70 m/min |
| Speed levels | 2 |
| Saw band length | 3660 mm |
| Saw band width | 27 mm |
| Saw band thickness | 0.9 mm |
| Material feed | |
|---|---|
| Table height material feed | 800 mm |
| Min. residual workpiece length | 30 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Saw band
- Operating tool
- Length stop 1 meter
- Coolant pump
