| Cutting ranges | |
|---|---|
| 0° round (pipe) | 230 mm |
| 0° round (full material) | 150 mm |
| 0° rectangle horizontal (hollow) | 280 x 220 mm |
| 0° bundle (pipe) | 280 x 120 mm |
| -45° round (pipe) | 190 mm |
| -45° round (full material) | 110 mm |
| -45° rectangle horizontal (hollow) | 180 x 170 mm |
| -60° round (pipe) | 120 mm |
| -60° round (full material) | 80 mm |
| -60° rectangle horizontal (hollow) | 120 x 90 mm |
| +45° round (pipe) | 185 mm |
| +45° round (full material) | 110 mm |
| +45° rectangle horizontal (hollow) | 180 x 120 mm |

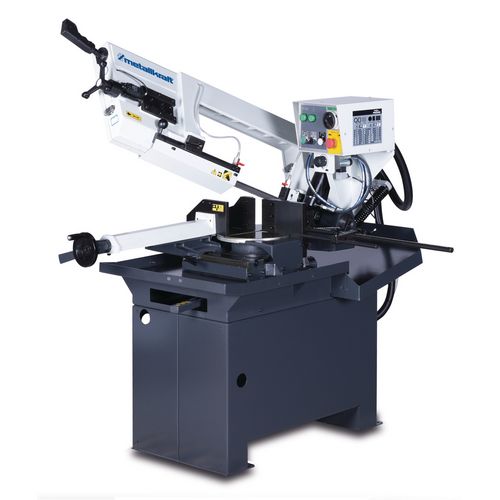

Hydraulic swing frame metal band saw
BMBS 230 x 280 H-DG
For miter cuts from + 60 ° to -45 °
4.850,00
EUR excl. Tax / pc(s).
5.820,00 EUR incl. 20% Tax / pc(s).
5.820,00 EUR incl. 20% Tax / pc(s).
Promotional price *
3.999,00 EUR excl. Tax / pc(s).4.798,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 3680013
Are you interested in this product?
Put a request
Find Trader
Productdetails
- For sawing hollow profiles and solid materials made of steel, stainless steel, tool steel, non-ferrous metals and plastic
- Mitre adjustment from the front for better handling with attached roller conveyor
- Robust band guides with adjustable carbide plates for a precise cut
- Saw blade guides with cooling system
- Electromechanical monitoring of the saw blade tension via microswitch
- With chip clearing brush for optimum cleaning and maintenance of the saw blade
- When the saw arm is raised, the lowering cylinder locks automatically in the upper position - no additional locking on the cylinder is required
- Saw arm tilted by 25°, thus extending the service life of the saw blade
- The saw blade stops automatically at the end of the cutting process
- Lowering of the saw arm by gravity or manually (H-DG)
- Turntable with swiveling cutting gap: No cutting into the saw table, therefore always a flat contact surface and therefore greater cutting accuracy

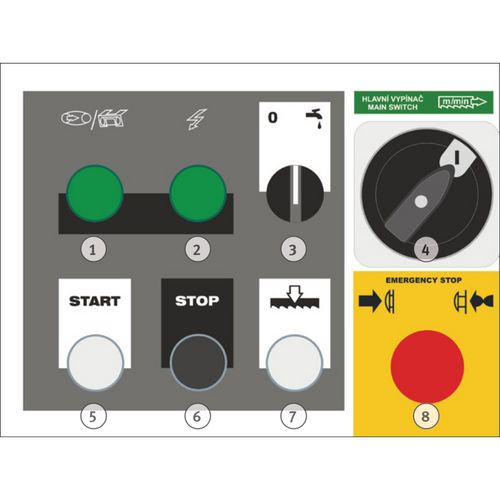

- Ergonomic operating concept
- Clamping lever for angle adjustment from the front: faster adjustment of the cutting angle
- Mounting adapter for roller conveyors included in the scope of delivery
- Vice with quick clamping device
| Dimensions and weights | |
|---|---|
| Length approx. | 1610 mm |
| Width/depth approx. | 890 mm |
| Height approx. | 1950 mm |
| Weight approx. | 320 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 0.9 / 1.4 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine data | |
|---|---|
| Saw band speed(s) | 35 / 70 m/min |
| Speed levels | 2 |
| Saw band length | 2720 mm |
| Saw band width | 27 mm |
| Saw band thickness | 0.9 mm |
| Material feed | |
|---|---|
| Table height material feed | 787 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Bandsaw
- Coolant pump
- Operating tool
| Coolant pump | ✔ |
| Saw feed | By own weight |
| Saw return stroke | manual |
| Chip clearing brush | ✔ |
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
96103 Hallstadt
Deutschland / Germany
info@stuermer-maschinen.de
Dr.-Robert-Pfleger-Str. 26
96103 Hallstadt
Deutschland / Germany
info@stuermer-maschinen.de
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Optional parts
Optional parts can not be retrofitted and are available only when ordering new machines.
