    Brandimage to Product TKS-Z 400

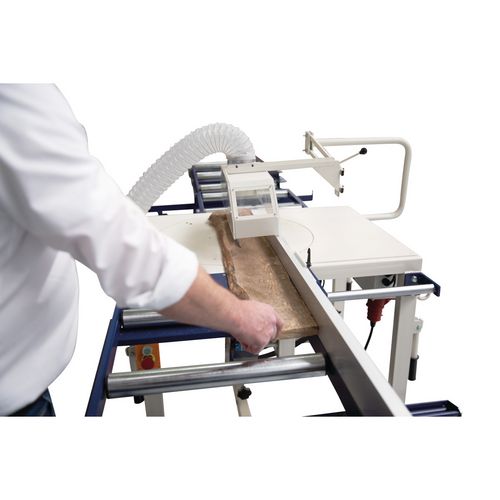

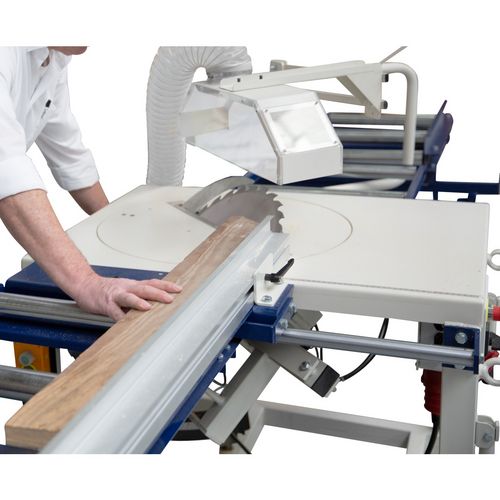

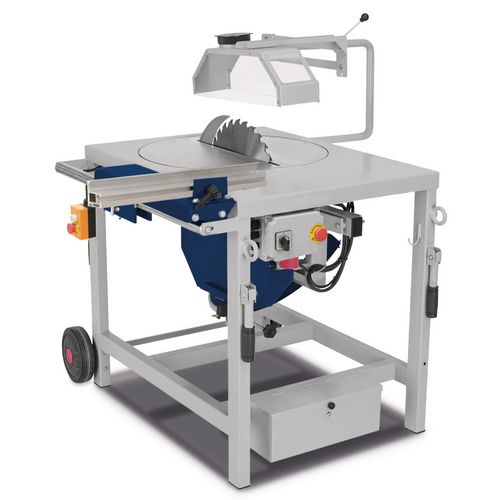

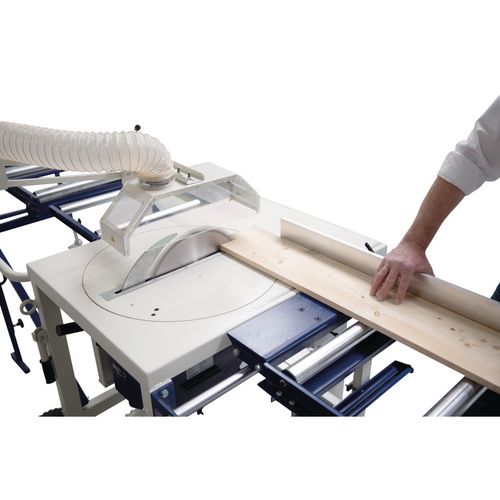

    Carpentry table saw

    TKS-Z 400

    Ideal for longitudinal cuts, chop cuts and miter cuts on larger wooden beams

    1.659,00 EUR excl. Tax / pc(s).
    1.990,80 EUR incl. 20% Tax / pc(s).
    Promotional price *
    1.499,00 EUR excl. Tax / pc(s).
    1.798,80 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5741400

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Saw blade can be swivelled up to 45° and rotated by up to 90°
    • Tilt of the sawing unit via hand lever and scale
    • Guidance of the sawing unit for cut cuts from bottom to top via a lever
    • Suitable for creating throat and burr rafters as well as eaves and wedge planks
    • Parallel stop with scale
    • Saw blade cover and working unit with suction connection 100 mm
    • Toolbox on the machine frame for clean storage of the tool
    • Chassis and hand lever facilitate transport
    • Boom set available as an accessory to greatly facilitate work with long workpieces



    • Saw blade swiveling up to 45° and rotation up to 90°
    • Choping cuts by lifting the saw unit
    • Chassis included



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Circular saw unit
    Max. cutting width with rip fence640 mm
    Max. cross cut width left from saw blade410 mm
    Saw blade angle90 – 45 °
    Max. cutting height 90°120 mm
    Max. cutting height 45°90 mm
    (Main) saw blade diameter400 mm
    (Main) saw blade speed2800 min¯¹
    Dimensions and weights
    Length approx.1350 mm
    Width/depth approx.1100 mm
    Height approx.1180 mm
    Weight approx.131 kg
    Electrical Data
    Drive motor output2,2 kW
    Absorbed power drive motor2,8 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter bottom100 mm
    Saw blade protection extraction port diameter100 mm
    Noise emission
    Sound pressure level80.7 dB(A)
    Sound power level96,7 dB(A)
    Sliding carriage and table
    Sliding table length560 mm
    Sliding table height140 mm
    Sliding table width40 mm
    Table length945 mm
    Table width715 mm
    Work height845 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Carbide saw blade 400 x 4.0 x 30 mm, Z 28
    • Saw blade guard with suction port
    • Chassis
    • Tool box
    • Push stick
    • Operating tool
