    Double mitre metal band saw

    OPTIsaw SD 500

    with versatile application possibilities in trade and industry

    8.765,00 EUR excl. Tax / pc(s).
    10.518,00 EUR incl. 20% Tax / pc(s).
    Promotional price *
    8.399,00 EUR excl. Tax / pc(s).
    10.078,80 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3292380

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Heavy industrial version
    • Quiet running
    • High cutting accuracy due to vibration-free running
    • Mitration adjustment -45° to 60° by swivelling the entire saw bow
    • Serially with high-quality bi-metalSaw band
    • Micro switch for automatic limit switch
    • Coolant pump

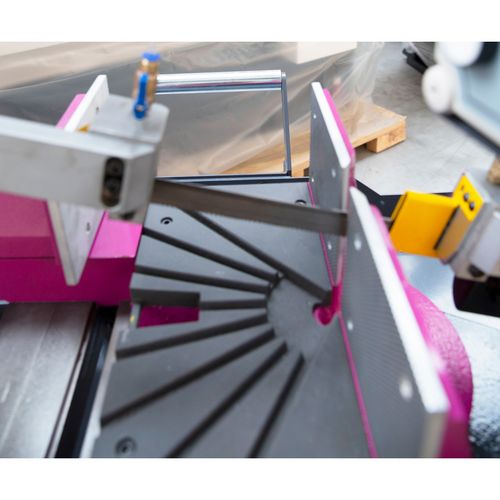

    • Ball bearing saw band guide with carbide plates for optimum cutting results
      • li>Simple adjustment of lowering speed by means of feed control valve in control panel
    • Large dimensioned quick-action vice laterally movable
    • Clear control panel



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Cutting ranges
    0° round (full material)355 mm
    0° quadratic (full material)280 mm
    0° rectangle upright (full material)280 x 490 mm
    -45° round (full material)290 mm
    -45° quadratic (full material)250 mm
    -45° rectangle upright (full material)250 x 250 mm
    +45° round (full material)355 mm
    +45° quadratic (full material)280 mm
    +45° rectangle upright (full material)280 x 340 mm
    +60° round (full material)230 mm
    +60° quadratic (full material)180 mm
    +60° rectangle upright (full material)180 x 220 mm
    Explanation Cutting rangeCutting range determined on the basis of the saw bow weight with aluminum. May vary when using different materials and may be smaller under certain circumstances (not cutting capacity).
    Dimensions and weights
    Length approx.2122 mm
    Width/depth approx.1046 mm
    Height approx.1497 mm
    Weight approx.552 kg
    Electrical Data
    Drive motor output2.2 kW
    Engine power coolant pump0.1 kW
    Total connected load3.8 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Machine data
    Saw band speed(s)35 / 70 m/min
    Saw band length3770 mm
    Saw band width34 mm
    Saw band thickness1.1 mm
    Cutting angle from to-45 – 60 °
    FeedHydraulic via lowering cylinder
    Lifting the saw bowManual
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Material stop
    • Bi-metal saw band 4-6 ZpZ M42
    • Machine substructure
    • Coolant pump
