| Cutting ranges | |
|---|---|
| 0° round (full material) | 255 mm |
| 0° quadratic (full material) | 255 mm |
| 0° rectangle upright (full material) | 200 x 270 mm |
| -45° round (full material) | 190 mm |
| -45° quadratic (full material) | 140 mm |
| -45° rectangle upright (full material) | 140 x 210 mm |
| -60° round (full material) | 110 mm |
| -60° quadratic (full material) | 110 mm |
| -60° rectangle upright (full material) | 110 x 210 mm |
| +45° round (full material) | 190 mm |
| +45° quadratic (full material) | 160 mm |
| +45° rectangle upright (full material) | 160 x 160 mm |
| Explanation Cutting range | Cutting range determined on the basis of the saw bow weight with aluminum. May vary when using different materials and may be smaller under certain circumstances (not cutting capacity). |
Metal band saw
OPTIsaw SD 310V
with Siemens Inventer Drive for infinitely adjustable saw blade speed
7.499,00
EUR excl. Tax / pc(s).
8.998,80 EUR incl. 20% Tax / pc(s).
8.998,80 EUR incl. 20% Tax / pc(s).
Promotional price *
6.899,00 EUR excl. Tax / pc(s).8.278,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 3290340
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Quiet running
- Heavy cast iron version
- High cutting accuracy due to vibration-free running
- Ball-bearing saw blade guide
- EMV class C2
- Twin-channel safety chain with quick stop in case of emergencyStop
- Chips brush
- Microswitch for automatic limit switch
- Push button - Manual saw band run - the hand lever switches the saw band run on and off
- Serially with high-quality bi-metal saw band
- Material stop with scaling
- Quick clamping vice adjustable via hand wheel. Clamping the workpiece with a handy quick-action clamping lever
- Stable machine base
- End stops adjustable to the degree
- Steplessly adjustable saw blade speed 15 - 90 m/min
- Double miter

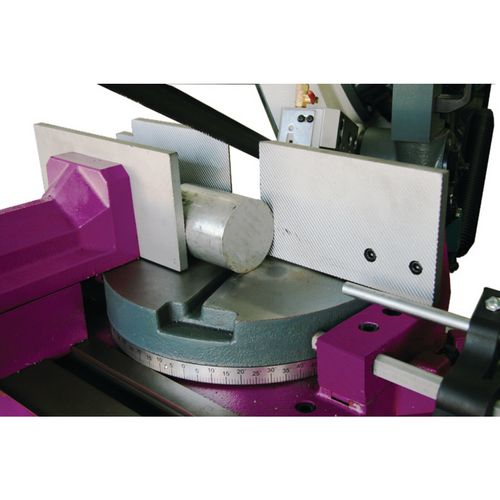

- Turntable: Any angle between 45° and -60° can be sawed as the cutting gap swivels with the saw arm

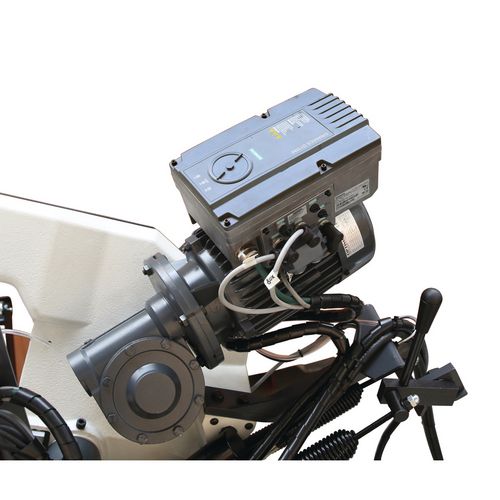

Converter
- Siemens Sinamics G110M
| Dimensions and weights | |
|---|---|
| Width without material stop approx. | 700 mm |
| Width with material stop approx. | 1300 mm |
| Height lower end position approx. | 1600 mm |
| Height upper end position approx. | 2000 mm |
| Length approx. | 1850 mm |
| Weight approx. | 380 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1,5 kW |
| Engine power coolant pump | 0.1 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine data | |
|---|---|
| Saw band speed(s) | 15 – 100 m/min |
| Saw band length | 2750 mm |
| Saw band width | 27 mm |
| Saw band thickness | 0.9 mm |
| Cutting angle from to | 45 – -60 ° |
| Feed | Hydraulic via lowering cylinder |
| Lifting the saw bow | Manual |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- material stop
- Bi-metal saw band
- substructure
- Coolant pump
