| Cutting ranges | |
|---|---|
| 0° round (full material) | 180 mm |
| 0° quadratic (full material) | 180 mm |
| 0° rectangle upright (full material) | 180 x 240 / 50 x 300 mm |
| +45° round (full material) | 110 mm |
| +45° quadratic (full material) | 150 mm |
| +45° rectangle upright (full material) | 110 x 170 mm |
| Explanation Cutting range | Cutting range determined on the basis of the saw bow weight with aluminum. May vary when using different materials and may be smaller under certain circumstances (not cutting capacity). |

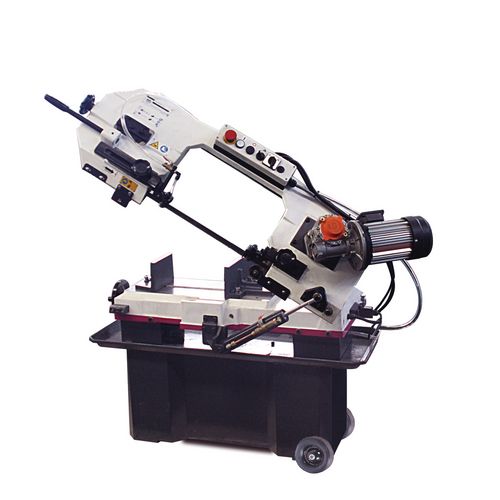

Gear metal band saw
OPTIsaw SD 200G
For advanced sawing
1.785,00
EUR excl. Tax / pc(s).
2.142,00 EUR incl. 20% Tax / pc(s).
2.142,00 EUR incl. 20% Tax / pc(s).
Promotional price *
1.679,00 EUR excl. Tax / pc(s).2.014,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 3300200
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Silent run
- Stable cast execution
- Lowering of the saw arm via hydraulic cylinder with throttle valve infinitely adjustable
- Micro switch for automatic limit switch
- Easy to read scale for angle adjustment
- As standard with high-quality bi-metal saw band
- Saw band tension adjustable on the front side via handwheel

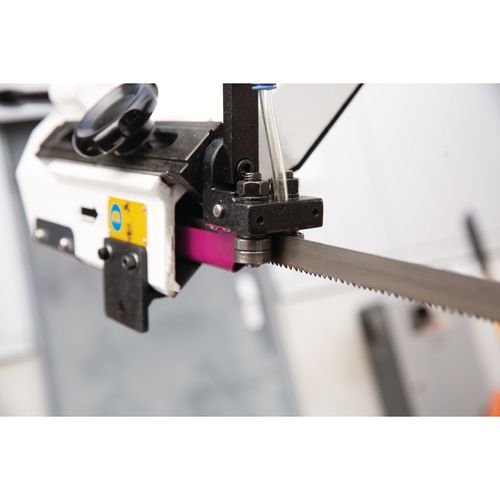

- Ball bearing saw band guide
- Robust machine base with large wheels and handy transport handle for easy location change of the machine
- Adjustable material stop for serial work
- Circuit breaker for the saw band cover
- Fully equipped, allowing the user to be productive immediately after commissioning
| Dimensions and weights | |
|---|---|
| Width without material stop approx. | 475 mm |
| Width with material stop approx. | 535 mm |
| Height lower end position approx. | 790 mm |
| Height upper end position approx. | 1200 mm |
| Work table height | 530 mm |
| Length approx. | 1295 mm |
| Weight approx. | 130 kg |
| Electrical Data | |
|---|---|

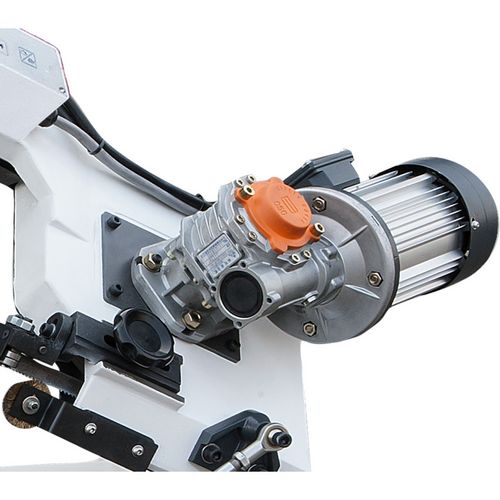

| Drive motor output | 0.55 / 0.75 kW |
| Engine power coolant pump | 0.1 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine data | |
|---|---|
| Saw band speed(s) | 44 / 88 m/min |
| Saw band length | 2360 mm |
| Saw band width | 19 mm |
| Saw band thickness | 0.9 mm |
| Cutting angle from to | 0 – 45 ° |
| Feed | infinitely variable |
| Lifting the saw bow | Manual |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Material stop
- Bi-metal saw band
- Machine base
| Coolant pump | ✔ |
