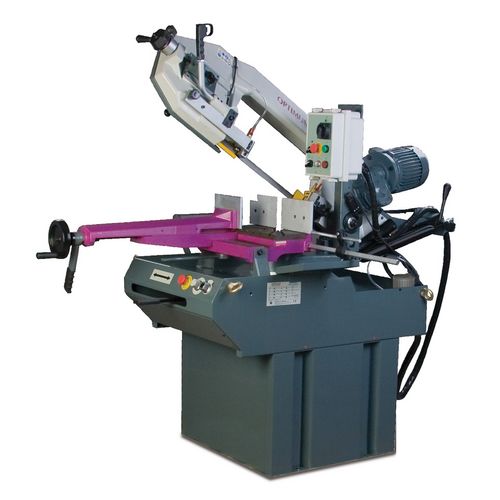

    Metal band saw

    OPTIsaw S 300DG

    Band saw for metalworking with swivel saw bow.

    4.765,00 EUR excl. Tax / pc(s).
    5.718,00 EUR incl. 20% Tax / pc(s).
    Promotional price *
    4.599,00 EUR excl. Tax / pc(s).
    5.518,80 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3290290

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Quiet running
    • Heavy casting
    • High cutting accuracy due to vibration-free running
    • Ball-bearing saw band guide
    • Chip brush
    • Microswitch for automatic limit switch
    • Pushbutton - Manual saw band - on the hand lever switches the saw blade running on and off
    • As standard with high-quality bi-metal saw band
    • Material stop with scaling
    • Quick release vice adjustable via Handwheel. Clamping the workpiece with a handy quick-release lever
    • Stable machine base
    • Adjustable limit stops
    • Double miter
    • With gear transmission



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Cutting ranges
    0° round (full material)255 mm
    0° quadratic (full material)190 mm
    0° rectangle horizontal (full material)190 x 310 mm
    -45° round (full material)220 mm
    -45° quadratic (full material)190 mm
    -45° rectangle horizontal (full material)135 x 190 mm
    -60° round (full material)135 mm
    -60° quadratic (full material)135 mm
    -60° rectangle horizontal (full material)135 x 135 mm
    +45° round (full material)215 mm
    +45° quadratic (full material)190 mm
    +45° rectangle horizontal (full material)190 x 200 mm
    Explanation Cutting rangeCutting range determined on the basis of the saw bow weight with aluminum. May vary when using different materials and may be smaller under certain circumstances (not cutting capacity).
    Dimensions and weights
    Max. width/depth1300 mm
    Max. height1850 mm
    Length approx.1680 mm
    Width/depth approx.700 mm
    Height approx.1600 mm
    Weight approx.335 kg
    Electrical Data
    Drive motor output1,5 kW
    Engine power coolant pump0,1 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Machine data
    Saw band speed(s)35 / 70 m/min
    Saw band length2750 mm
    Saw band width27 mm
    Saw band thickness0.9 mm
    Cutting angle from to-60 – 45 °
    Feedinfinitely variable
    Lifting the saw bowManual
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • material stop
    • Bi-metal saw band
    • substructure
    • Coolant pump
