| Table diameter | 320 mm |
| Centre height table vertical | 210 mm |
| Horizontal table height | 240 mm |
| Total vertical height | 380 mm |
| Explanation Total vertical height | without motor cover |
| Through hole | 110 mm |
| T-slot width | 14 mm |
| Slot width | 18 mm |
| Servo motor type | Siemens 1FK7083 |
| Transmission ratio | 1:180 |
| Minimum step size | 0,001 ° |
| Maximum speed | 11.1/22.2 min¯¹ |
| Parts accuracy | 15 " |
| Unidirectional repeatability | 4 " |
| Bidirectional repeatability | 50 " |
| Max. tool weight vertical | 175 kg |
| Max. tool weight horizontal | 350 kg |
| VPE | 1 |

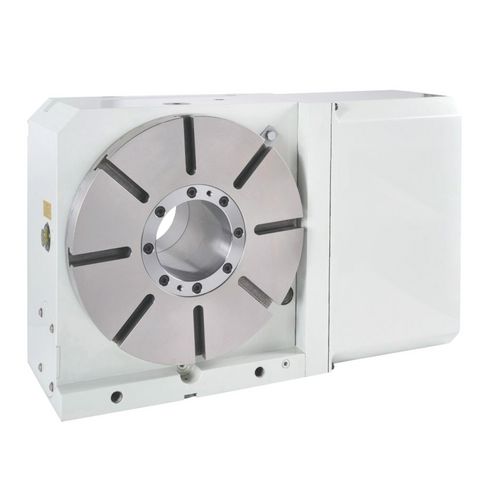

4-axis rotary dividing table
OPTImill F 610HSC
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3511290212
Are you interested in this product?
Put a request
Find Trader
Productdetails
| Dimensions and weights | |
|---|---|
| Weight approx. | 210 kg |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Three-jaw lathe chuck Ø 320 mm
- Table diameter 320 mm
- Tailstock
- SIEMENS motor
- Assembly
