| Max. turning diameter | 457 mm |
| Speeds | 50 - 900, 100 - 1850, 200 - 3850 min-¹ |
| Speed stages | 3 |
| Speed control | Electronically variable |
| Tailstock thread | Trapezoid |
| Tailstock stroke | 115 mm |
| Bearing distance | 144 mm |
| Spindle cone | MT2 |
| Partial installation | 24 Steps |
| VPE | 1 |

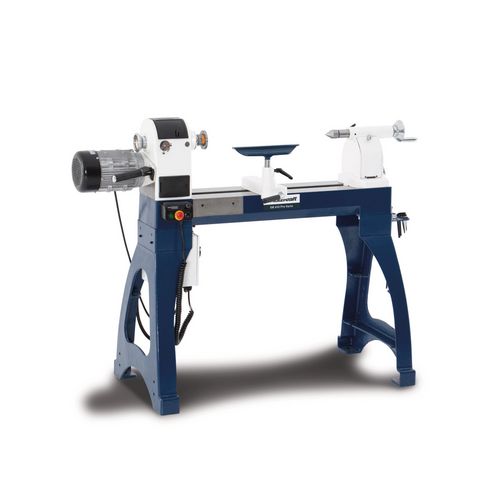

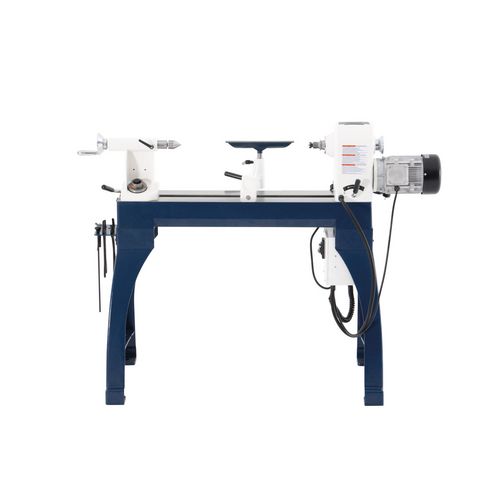

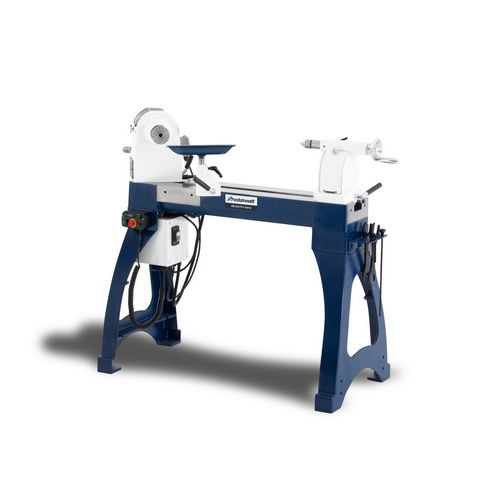

Woodturning lathe
DB 610 Pro Vario
Solid floor-standing lathe with variable speed adjustment and rotating headstock
1.949,00
EUR excl. Tax / pc(s).
2.338,80
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5822061
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Solid cast iron bench bed for extremely smooth running
- ASR run-off protection groove for maximum safety when fastening clamping devices

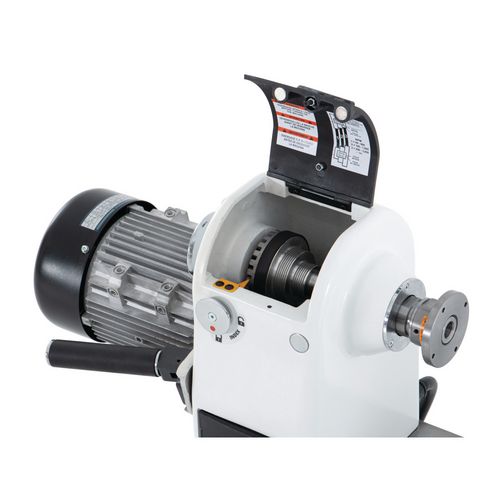

- Comfortable working thanks to infinitely variable speed adjustment via frequency converter

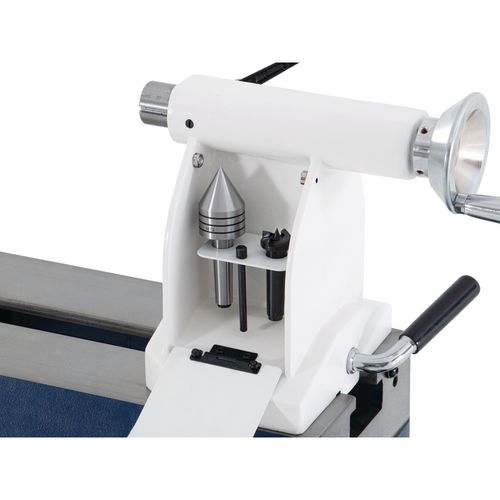

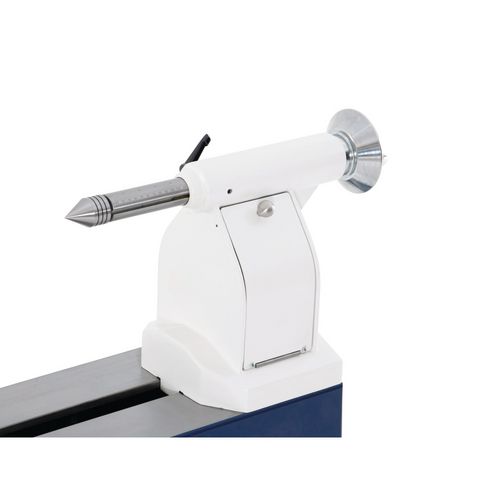

- Robust tailstock with trapezoidal thread and 115 mm quill travel

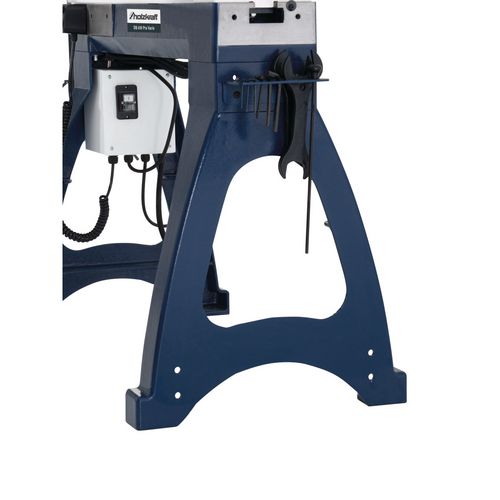

- Flexible working thanks to mobile control box with magnetic holder, can be positioned as required
- Digital speed display and right/left rotation changeover via the control box

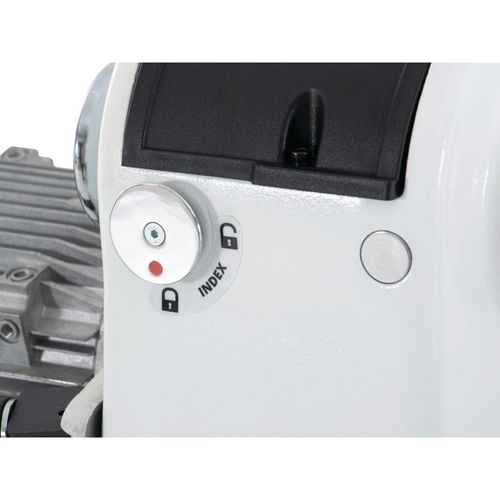

- Practical 24-step spindle dividing device for precise positioning of e.g. drill holes or milling operations

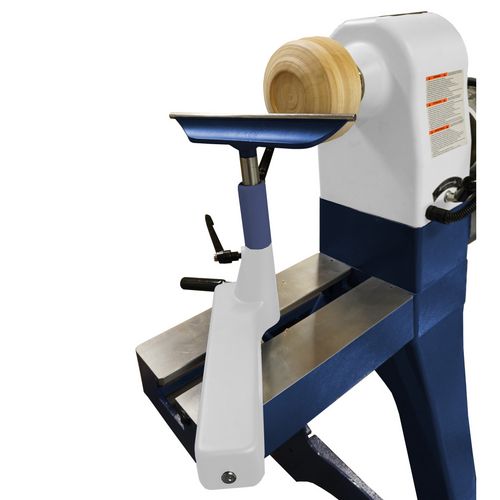

- Rotatable headstock for maximum flexibility - ideal for use as an external turning device with optional additional bed
- ASR run-off protection groove for maximum safety when fastening clamping devices
- Comfortable working thanks to infinitely variable speed adjustment via frequency converter
- Robust tailstock with trapezoidal thread and 115 mm quill travel
- Digital speed display and right/left rotation changeover via the control box
- Practical 24-step spindle part adjustment for precise positioning of e.g. drill holes or milled holes
| Dimensions and weights | |
|---|---|
| Length approx. | 1600 mm |
| Width/depth approx. | 620 mm |
| Height approx. | 1200 mm |
| Weight approx. | 170 kg |
| Electrical Data | |
|---|---|
| Motor power input | 1,84 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

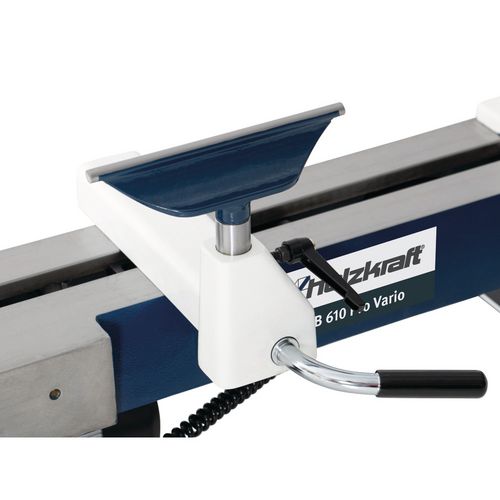

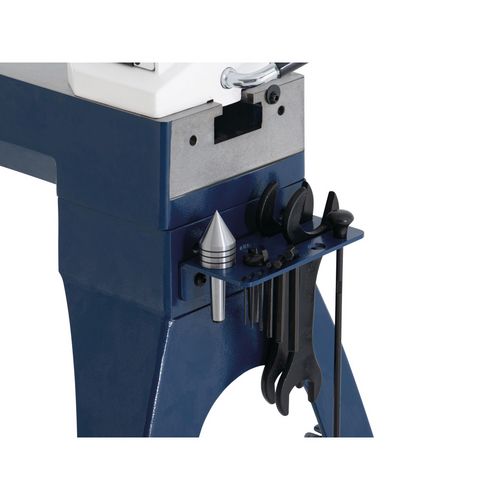

- Tool rest 300 mm
- Face plate 80 mm
- Four-point driver
- center punch
- long ejector rod
- short ejector rod
- 2 x clamping wrench 46mm / 38mm
- Clamping wrench 8mm / 10mm
- Tension wrench 17mm / 19mm
- Allen key (2.5mm, 3mm, 4mm, 5mm, 8mm, 10mm)
| Right-left run | ✔ |
| Rotatable spindle head | ✔ |
| Frequency inverter | ✔ |
| Mobile control panel | ✔ |
