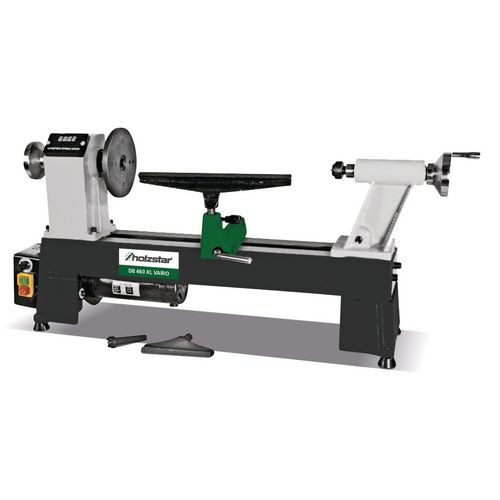

Woodturning lathe
DB 460 XL Vario
Compact design with continuously variable speed control
429,00
EUR excl. Tax / pc(s).
514,80 EUR incl. 20% Tax / pc(s).
514,80 EUR incl. 20% Tax / pc(s).
Promotional price *
339,00 EUR excl. Tax / pc(s).406,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 5920462
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Variable speed regulation in three speed stages: 650 - 1430; 1240 - 2790; 1600 - 3800
- Integrated digital speed display
- Large turning diameter of 305 mm
- Machine bed made of torsion-free grey cast iron for smooth running and great precision
- The tailstock and headstock are made of stable grey cast iron
- Tailstock quill with bore hole for machining longer workpieces
- The tailstock is easily and quickly clamped on the machine bed thanks to single lever clamping
- Bed extension for 550 mm max. width available as accessory
- Variable speed regulation in three speed stages: 650 - 1430; 1240 - 2790; 1600 - 3800
- Integrated digital speed display
- Large turning diameter of 305 mm
- Machine bed made of torsion-free grey cast iron for smooth running and great precision
- Tailstock quill with bore hole for machining longer workpieces
- The tailstock is easily and quickly clamped on the machine bed thanks to single lever clamping
| Max. turning diameter | 305 mm |
| Speeds | 650 – 1430, 1240 – 2790, 1600 – 3800 min¯¹ |
| Speed stages | 3 |
| Speed control | Electronically variable |
| Travel of tailstock sleeve | 55 mm |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 900 mm |
| Width/depth approx. | 340 mm |
| Height approx. | 410 mm |
| Weight approx. | 38 kg |
| Electrical Data | |
|---|---|
| Motor power input | 0.55 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- 1 x Turning tool support 150 mm
- 1 x Turning steel support 300 mm
- 1 x Clamping disc 145 mm
- 1 x Four-spur drive centre
- 1 x Travelling centre
