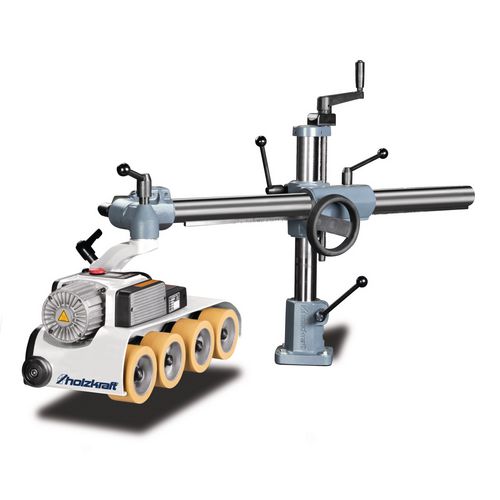

Feeder
VSA 400 DC
With stepless speed regulation
1.455,00
EUR excl. Tax / pc(s).
1.746,00 EUR incl. 20% Tax / pc(s).
1.746,00 EUR incl. 20% Tax / pc(s).
Promotional price *
1.279,00 EUR excl. Tax / pc(s).1.534,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 5110403
Are you interested in this product?
Put a request
Find Trader
Productdetails
- For horizontal and vertical use

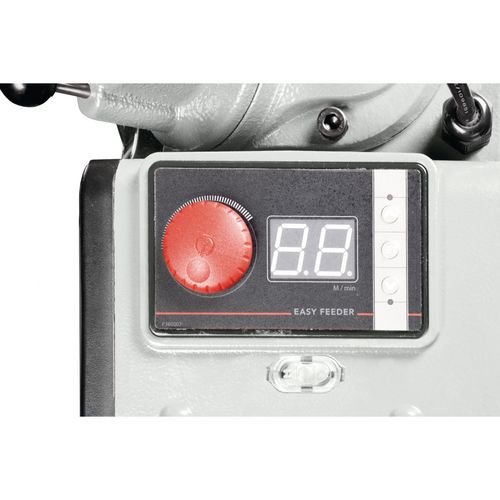

- Feed rate stepless - also possible under load
- Standard with right / left rotation
- Durable polyurethane feed rollers
- Tripod standard with extended extension arm
- Metal housing
Equipment details
- With right-left rotation

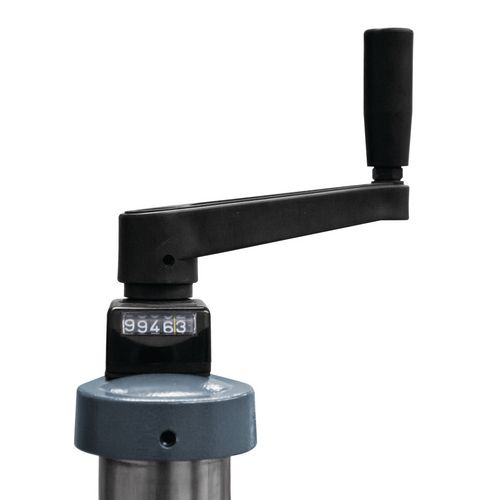

- Feeders as standard with counter for height adjustment
- Quick clamping lever

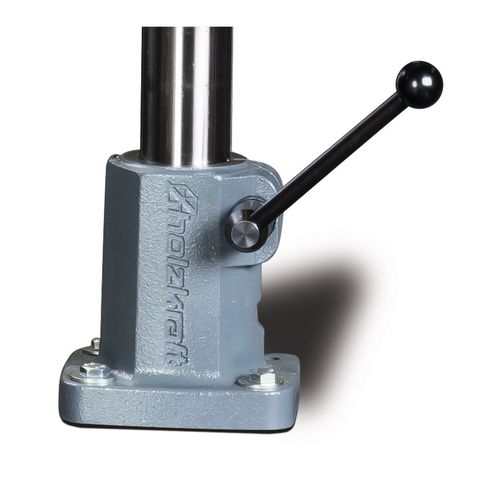

- With particularly robust and solid tripod clamping for maximum stability in daily use (VSA 300 DC, VSA 400 DC)
- Swivel device Working with the machine
- The feeder is mounted on an extension arm, which can be swiveled as required.
- By swinging away the boom arm on the right side, the entire work surface of the machine can be used without having to disassemble the feed unit consuming.
| Number of feed rollers | 4 |
| Feed speed | 2 22 m/min |
| Gears | stepless |
| Max. extension | 1050 mm |
| Roller diameter | 120 mm |
| Roller width | 60 mm |
| Spring stroke of rollers | 18 mm |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Weight approx. | 67.5 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 0.375 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
