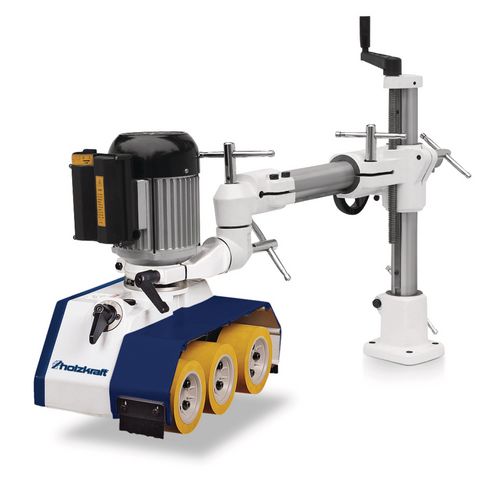

    Feeder

    VSA 38 EL

    Quality from the world's largest manufacturer

    1.045,00 EUR excl. Tax / pc(s).
    1.254,00 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5114501

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Uniform feed rate without loss of power

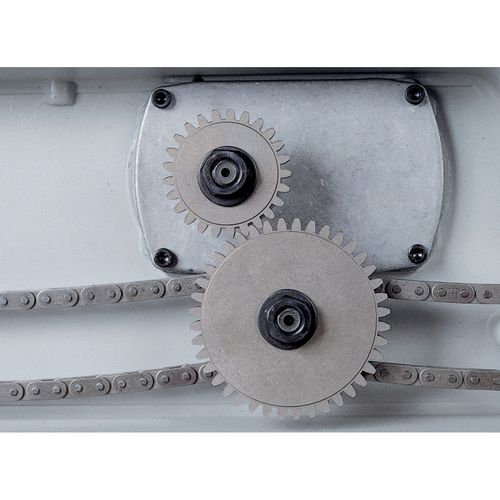

    • Metal gears with hardened gears
    • Right and left rotation
    • Powerful motors
    • Durable PU feed rollers
    • Stand as standard with extended extension arm for all feeders
    • Individually swiveling and adjustable for horizontal and vertical use
    • With counter



    Room amenities

    • All feed units as standard with counter for height adjustment (except for VSA 32 and VSA 308)
    • Improved quick-release lever

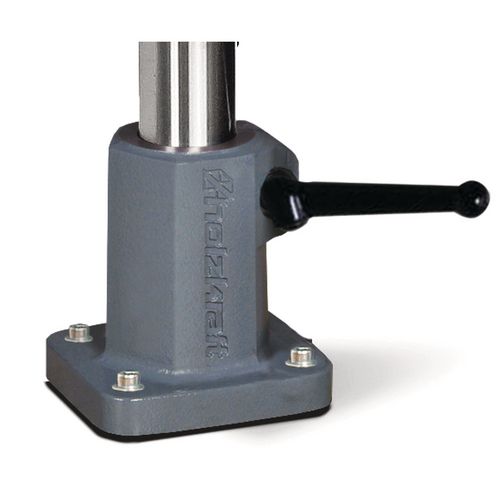

    • With particularly robust and solid tripod clamping for maximum stability in daily use (VSA 38L / 48L)
    • Standard right-left rotation with two speeds
    • Two speeds via two-step transmission (VSA 38EL / 38L / 48EL / 48L)
    • Four other speeds through change gearbox
    • Pivot means
    • Individual adjustment options in horizontal and vertical position for optimum feed



    Special features

    • Three feed rollers
    • Eight speeds
    • 750 W / 400V
    • 2-speed gearbox
    • metal housing



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Number of feed rollers3
    Feed speed2 30 m/min
    Gears2 / 4 / 5 / 6 / 10 / 12 / 15 / 30 m/min
    Max. extension1050 mm
    Roller diameter120 mm
    Roller width60 mm
    Spring stroke of rollers25 mm
    VPE1
    Dimensions and weights
    Weight approx.65 kg
    Electrical Data
    Drive motor output0.75 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1
