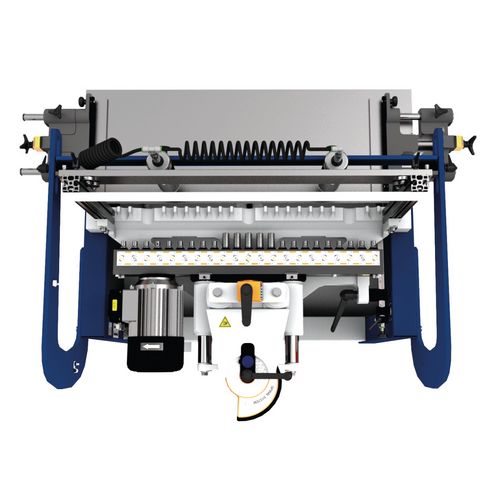

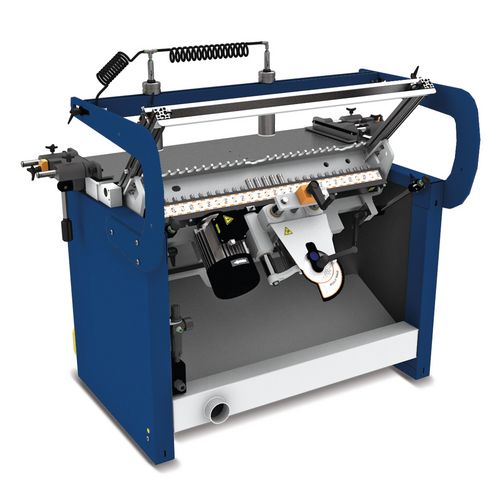

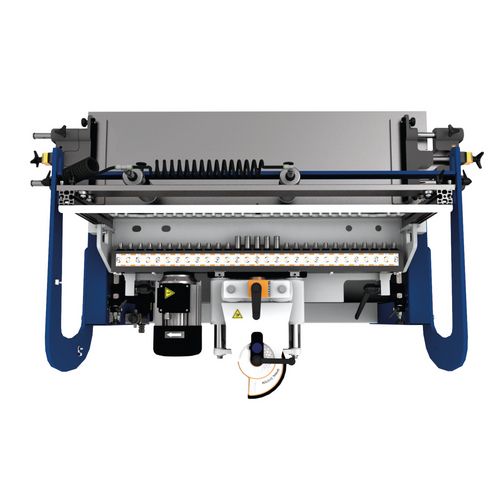

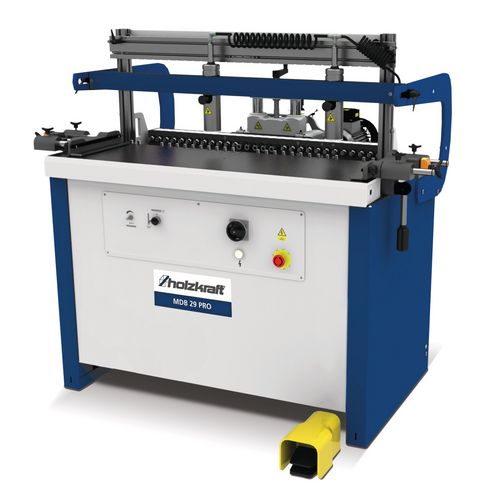

Semi automatic multi spindle drilling machine
MDB 29 PRO
Horizontal and vertical drilling for making furniture
7.699,00
EUR excl. Tax / pc(s).
9.238,80 EUR incl. 20% Tax / pc(s).
9.238,80 EUR incl. 20% Tax / pc(s).
Promotional price *
7.449,00 EUR excl. Tax / pc(s).8.938,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 5301029
Are you interested in this product?
Put a request
Find Trader
Productdetails
- 29 drilling spindles with quick-release system and five quick-action chucks included
- Solid steel work table
- Patented system for quick and easy drilling depth adjustment via spiral disc
- Pneumatic drill head tilting, for drilling in any position between 0° and 90°
- Double guided cast iron side stops precisely adjustable via rotary wheel with counter
- Drill head adjustment via counter
- Two positionable pneumatic clamping cylinders
- Thanks to 896 mm distance between the axis, it is even possible to machine 2 work pieces with a width of 444 mm each
- 29 drilling spindles with quick-release system
- Solid work table made of steel
- Patented system for quick and easy drilling depth adjustment via spiral disc
- Pneumatic drill head pivoting, for drilling in any position between 0° and 90
- Double guided cast iron side stops
- Two positionable pneumatic clamping cylinders
| Dimensions and weights | |
|---|---|
| Work table length | 1141 mm |
| Work table width | 338 mm |
| Length approx. | 1480 mm |
| Width/depth approx. | 950 mm |
| Height approx. | 1300 mm |
| Weight approx. | 290 kg |
| Electrical Data | |
|---|---|
| Drive motor input | 1,5 kW |
| Drive motor output | 1,1 kW |
| Nominal operating mode drive motor | S3 |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction | |
|---|---|
| Extraction port diameter | 80 mm |
| Pneumatic connection | |
|---|---|
| Working pressure | 6 – 8 bar |
| Spindle | |
|---|---|
| Max. drilling width | 896 mm |
| Drilling depth max. at 90° | 65 mm |
| Number of spindles | 29 |
| Distance between spindles | 32 mm |
| Spindle distance first to last | 896 mm |
| Spindle distance sufficient for | Two workpieces, each 348 mm in width |
| Spindle speed(s) | 2800 min¯¹ |
| Swivel of drill unit | 0 – 90 ° |
| Max. height of workpiece | 130 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Two pneumatic pressure cylinders
- Two fence jaws, each 1.5 m long
- Four folding stops for the fence jaws
- One setting gauge for fine adjusting the folding stops on the fence jaws
| Side stop | made of cast iron, double guided - precise adjustment via rotary wheel with counter |
