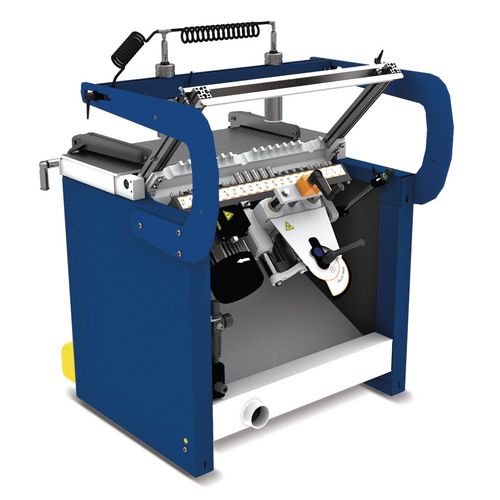

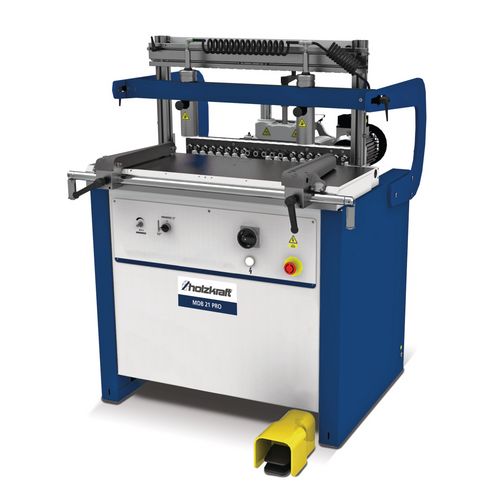

Semi automatic multi spindle drilling machine
MDB 21 PRO
Horizontal and vertical drilling for making furniture
5.499,00
EUR excl. Tax / pc(s).
6.598,80 EUR incl. 20% Tax / pc(s).
6.598,80 EUR incl. 20% Tax / pc(s).
Promotional price *
5.299,00 EUR excl. Tax / pc(s).6.358,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 5301021
Are you interested in this product?
Put a request
Find Trader
Productdetails

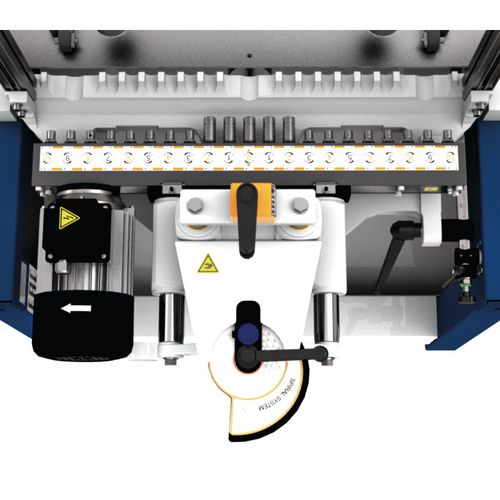

- Drilling spindles with quick-release system and five quick-action chucks included
- Solid steel work table
- Patented system for quick and easy drilling depth adjustment via spiral disc

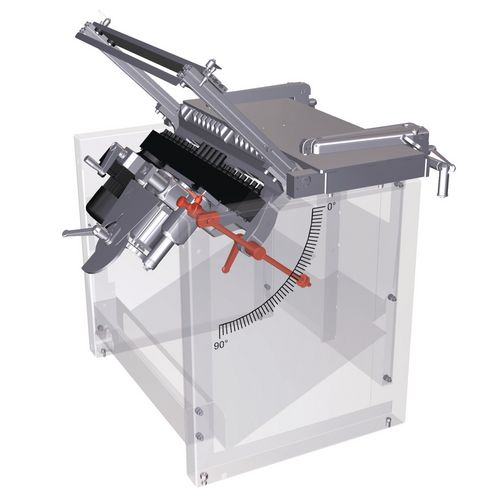

- Pneumatic drill head tilting, for drilling in any position between 0° and 90°
- Fold-away cast iron side stops with round bar guide
- Side stops easily adjustable with help of a magnifying glass and millimetre scale
- Drill head adjustment via counter
- Two positionable pneumatic clamping cylinders
- Thanks to 640 mm distance between the axis, it is even possible to machine 2 work pieces with a width of 316 mm each
- 21 drilling spindles with quick-release system
- Solid work table made of steel
- Patented system for quick and easy drilling depth adjustment via spiral disc
- Pneumatic drill head pivoting, for drilling in any position between 0° and 90
- Fold-away cast iron side stops with tie-rod guide
- Two positionable pneumatic clamping cylinders
| Dimensions and weights | |
|---|---|
| Work table length | 885 mm |
| Work table width | 332 mm |
| Length approx. | 1015 mm |
| Width/depth approx. | 990 mm |
| Height approx. | 1270 mm |
| Weight approx. | 260 kg |
| Electrical Data | |
|---|---|
| Drive motor input | 1,5 kW |
| Drive motor output | 1,1 kW |
| Nominal operating mode drive motor | S3 |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction | |
|---|---|
| Extraction port diameter | 80 mm |
| Pneumatic connection | |
|---|---|
| Working pressure | 6 – 8 bar |
| Spindle | |
|---|---|
| Max. drilling width | 640 mm |
| Drilling depth max. at 90° | 65 mm |
| Number of spindles | 21 |
| Distance between spindles | 32 mm |
| Spindle distance first to last | 640 mm |
| Spindle distance sufficient for | Two workpieces, each 316 mm in width |
| Spindle speed(s) | 2800 min¯¹ |
| Swivel of drill unit | 0 – 90 ° |
| Max. height of workpiece | 130 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Two pneumatic pressure cylinders
- Two fence jaws, each 1.5 m long
- Four folding stops for the fence jaws
- One setting gauge for fine adjusting the folding stops on the fence jaws
| Side stop | made of cast iron, fold-away and with tie-rod guide - easily adjustable with help of a magnifying glass and millimetre scale |
