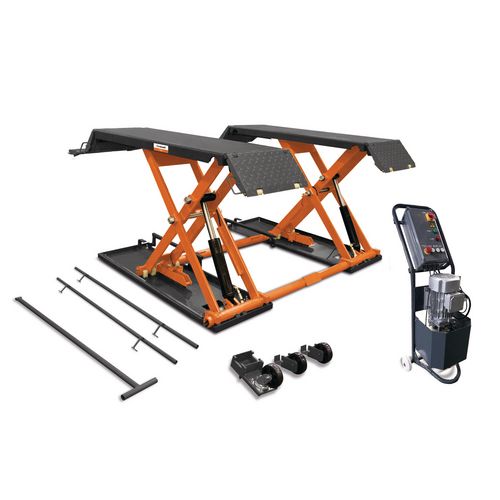

    Hydraulic scissor lift

    SHB 3

    stable scissor construction, suitable for loads of up to three tons

    2.799,00 EUR excl. Tax / pc(s).
    3.358,80 EUR incl. 20% Tax / pc(s).
    Promotional price *
    2.399,00 EUR excl. Tax / pc(s).
    2.878,80 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 6240030

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Two powerful hydraulic cylinders lift up to three tons of load
    • Operation via mobile control panel
    • Low platform with low passage height
    • Drive-up flaps anti-slip, corrugated and lockable
    • Rubber pads as anti-slip protection
    • Automatic locks secure the lifting platform at several operating heights
    • Foot trap protection on both sides for easy access to the platformr additional safety
    • chassis for easy positioning of the lifting platform in the workshop included in delivery



    • Two powerful hydraulic cylinders lift up to three tons of load
    • Operation via mobile control panel
    • Low platform with low crossing height



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Load capacity3 t
    Min. platform height110 mm
    Max. platform height1000 mm
    Lifting time platform height min. to max.30 s
    Min. height110 mm
    Max. height1000 mm
    Lifting time height min. to max.30 s
    Load lifting speed33 mm/s
    VPE1
    Dimensions and weights
    Platform length1420 mm
    Platform width460 mm
    Platform length1420 mm
    Platform width460 mm
    Ramp length261 mm
    Ramp width460 mm
    Length approx.1943 mm
    Width/depth approx.1954 mm
    Height approx.125 mm
    Weight approx.470 kg
    Electrical Data
    Drive motor output2,2 kW
    Input power2.2 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Pneumatic connection
    Operating pressure8 bar
    Unit: pc(s).
    Packaging unit: 1

    • Transport roller set
    • Transport lever rod
    • Two foot protection rods
    • Rubber pads
