| Clamp length | 244 / 253 mm |
| Clamp pressure direction | vertical / horizontal |
| Clamp holding force | 3,0 kN |
| Height compensation max. | 40 / 0 mm |
| Stroke compensation max. | 0 / 35 mm |
| Stroke compensation automatic | 35 / 13 mm |
| Clamp fixation | Perforated grid Ø20 mm |
| Clamping bolt diameter | 20 mm |
| Adapter plate diameter | 140 mm |
| VPE | 1 |
Clamping system
for hole grid Ø 20 mm Set 2
605,00
EUR excl. Tax / pc(s).
726,00
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 6112019
Are you interested in this product?
Put a request
Find Trader
Productdetails

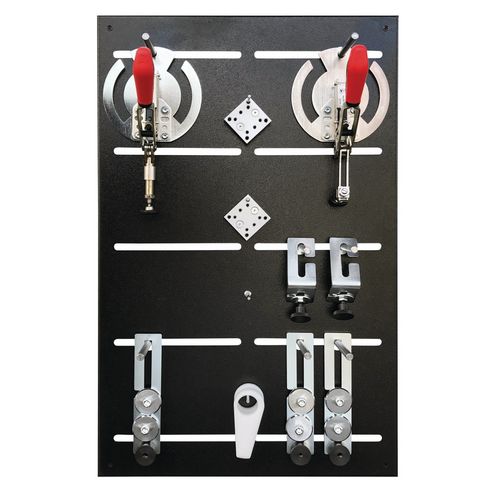

- Starter Kit with various clamps and anchoring elements
- Suitable for a wide range of lifting and clamping situations
- Everything handy and tidy on the wall panel
- Wall panel expandable
| Dimensions and weights | |
|---|---|
| Length approx. | 450 mm |
| Height approx. | 700 mm |
| Weight approx. | 10.2 kg |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- 1 sheet steel storage panel, powder-coated 700 x 450 mm with locating pins
- 1 round adapter plate with horizontal clamp
- 1 round adapter plate with vertical clamp
- 6 clamping bolts ø20 mm with washer
- 4 plates open 180 x 40 with thread
- 4 swivel bearings with grub screw for eccentric clamp
- 4 eccentric clamps plastic
- 2 angles open 80 x 40 x 60
- 2 stop screws
- 2 adapter blocks to raise the clamps on the round adapter plate
