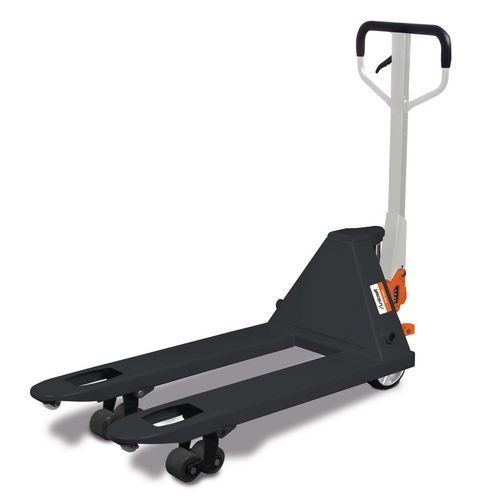

Hand pallet trucks
PHW 2508 K
Comfortable to operate, resilient and maneuverable
459,00
EUR excl. Tax / pc(s).
550,80 EUR incl. 20% Tax / pc(s).
550,80 EUR incl. 20% Tax / pc(s).
Promotional price *
379,00 EUR excl. Tax / pc(s).454,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 6152513
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Lifting, lowering and neutral position can be operated via one-hand lever

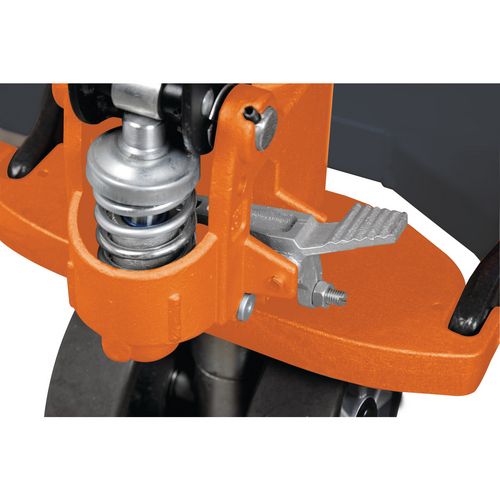

- Foot lowering lever as standard, allowing flexible lowering of loaded pallets with the foot
- Smooth-running hydraulic pump with hard-chrome plated piston and pressure relief valve
- Lowering speed infinitely adjustable via sensitive lowering valve
- Easy movement even of heavy loads thanks to extra-light aluminum swivel castors with solid rubber treads and tandem fork rollers made of polyurethane
- Robust ball bearings in all wheels and rollers
- Steel frame and fork in very stable and torsion-resistant shell construction
- Ergonomically shaped tiller with plastic sheathing on the handle
- Available with different fork lengths
| Load capacity | 2.5 t |
| Load-bearing width | 540 mm |
| Fork width | 160 mm |
| Fork length | 800 mm |
| Lifting range | 85 – 200 mm |
| Turning radius | 835 mm |
| VPE | 0 |
| Dimensions and weights | |
|---|---|
| Steering rollers diameter | 200 mm |
| Steering rollers width | 50 mm |
| Fork roller diameter | 80 mm |
| Fork roller width | 70 mm |
| Length approx. | 1200 mm |
| Width/depth approx. | 540 mm |
| Height approx. | 1235 mm |
| Weight approx. | 60 kg |
Unit: pc(s).
| Steering rollers material | Aluminum, Polyamide |
| Fork roller material | Polyurethan |
| Fork roller design | Tandem |
