PHW 2508 EF

comfortable to operate, resilient and maneuverable

435,00 EUR excl. Tax / pc(s).
522,00 EUR incl. 20% Tax / pc(s).

Promotional price *

349,00 EUR excl. Tax / pc(s).
418,80 EUR incl. 20% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.

Safety and warning notices

Art.-No. 6152525

Are you interested in this product?

Put a request

Find Trader

Productdetails

Lifting, lowering and neutral position can be operated via one-hand lever
With a foot lowering lever as standard, which enables the loaded pallets to be lowered flexibly with the foot

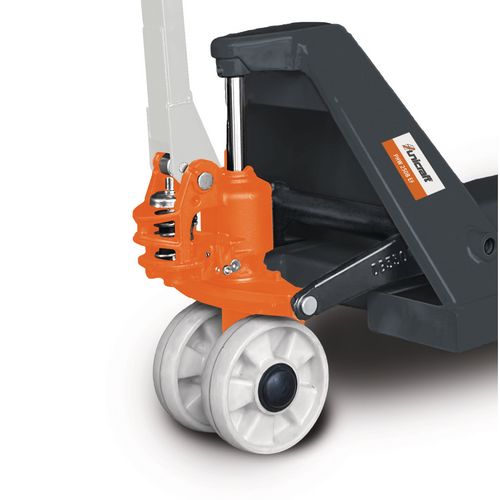

Smooth-running hydraulic pump with hard chrome-plated piston and pressure relief valve
Infinitely adjustable lowering speed via sensitive lowering valve
Easy movement of even heavy loads thanks to nylon swivel castors and single nylon fork rollers
Robust ball bearings in all wheels and castors
Steel frame and fork in very stable and torsion-resistant shell construction

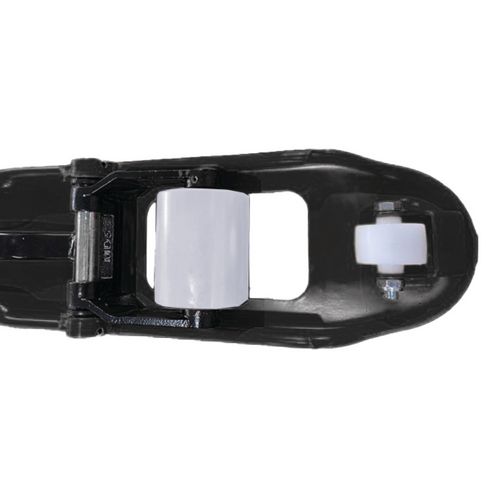

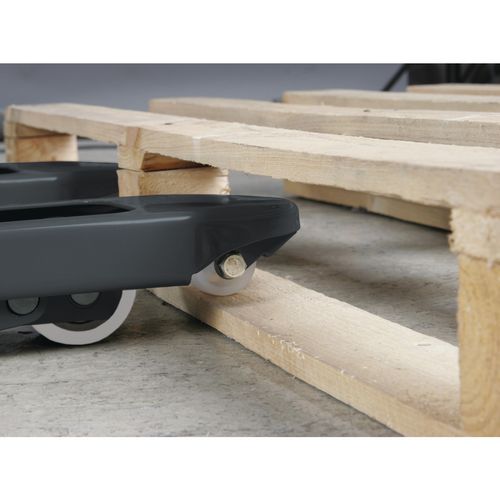

Infeed rollers for easy entry into pallets
Ergonomically shaped drawbar

Lifting, lowering and neutral position can be operated via one-hand lever
With a foot lowering lever as standard, which enables the loaded pallets to be lowered flexibly with the foot
Infinitely adjustable lowering speed via sensitive lowering valve
Easy movement of even heavy loads thanks to nylon swivel castors and single nylon fork rollers
Robust ball bearings in all wheels and castors
Steel frame and fork in very stable and torsion-resistant shell construction
Infeed rollers for easy entry into pallets

Data sheets
Safety and warning notices

Load capacity	2 t
Load-bearing width	550 mm
Fork width	160 mm
Fork length	1150 mm
Lifting range	75 – 190 mm
Turning radius	1281 mm
VPE	0

Dimensions and weights
Steering rollers diameter	160 mm
Steering rollers width	50 mm
Fork roller diameter	70 mm
Fork roller width	80 mm
Length approx.	1540 mm
Width/depth approx.	550 mm
Height approx.	1175 mm
Weight approx.	52 kg

Unit: pc(s).

Steering rollers material	Nylon
Fork roller material	Nylon
Fork roller design	Single
