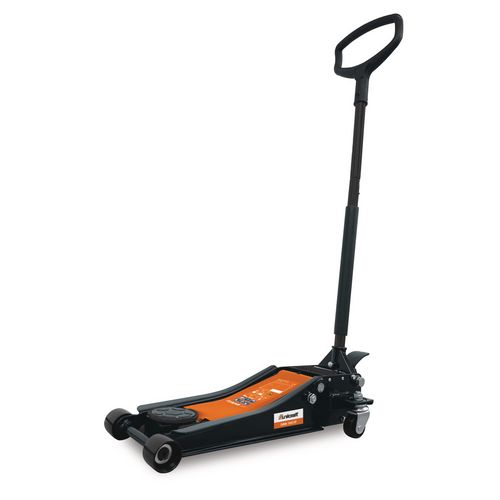

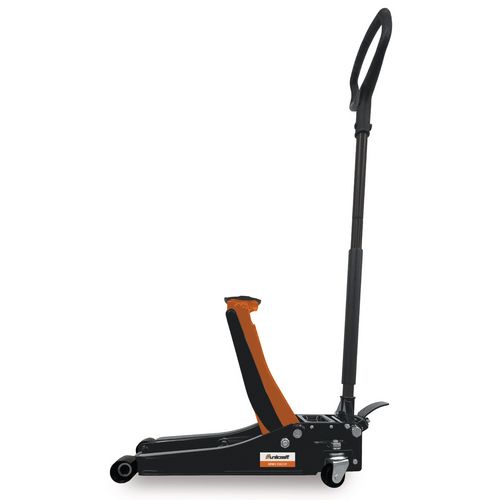

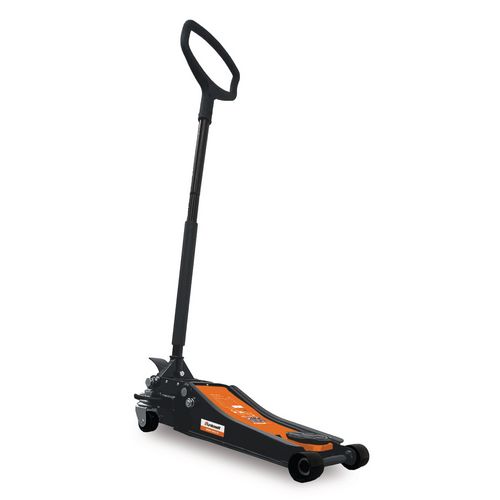

Trolley jack
SRWH 3003 EF
Extra flat design especially for lowered and sporty flat vehicles
199,00
EUR excl. Tax / pc(s).
238,80 EUR incl. 20% Tax / pc(s).
238,80 EUR incl. 20% Tax / pc(s).
Promotional price *
189,00 EUR excl. Tax / pc(s).226,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 6201124
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Two-piece pump lever with ergonomic handle ensures a firm grip and easy handling
- Valve control via rotating pump lever
- Quick-lift foot pedal for fast bridging of the empty stroke
- Cast iron load and swivel castors

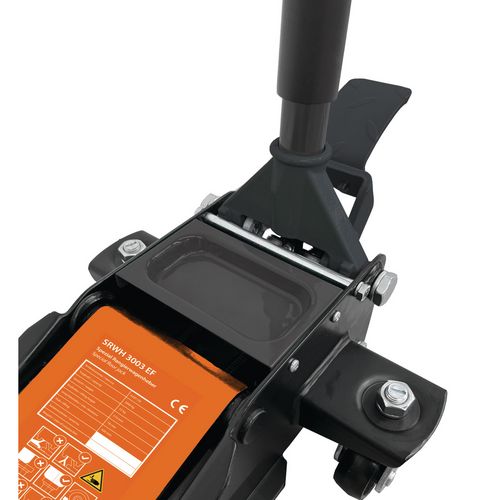

- Practical tool rest

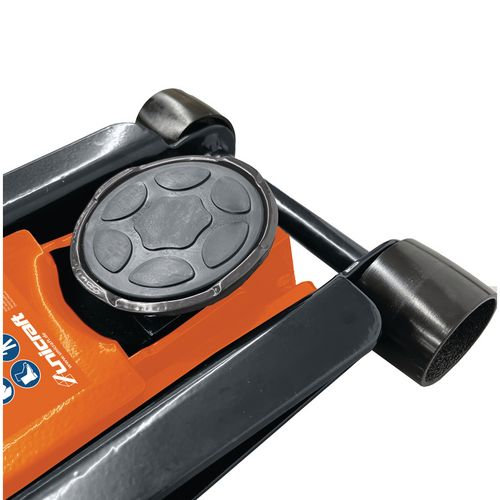

- Extra wide surface of the support plate with rubber pad
- With double piston, therefore fewer pumping operations required up to the maximum end height
- Two-piece pump lever with ergonomic handle ensures a firm grip and easy handling
- Valve control via rotating pump lever
- Quick-lift foot pedal for fast bridging of the empty stroke
- With double piston, so fewer pumping operations are required up to the maximum end height
| Load-bearing capacity | 3 t |
| Lifting | 420 mm |
| Lifting height | 510 mm |
| Min. clearance | 78 mm |
| Max. clearance | 150 mm |
| Inside width | 262 mm |
| Outside width | 344 mm |
| Max. length | 1810 mm |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 685 mm |
| Width/depth approx. | 344 mm |
| Height approx. | 223 mm |
| Weight approx. | 33 kg |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Foot pedal | ✔ |
| Handle | round |
| Double pump | ✔ |
| Surface | rubber |
| Handle foam | ✔ |
| Tool tray | ✔ |
