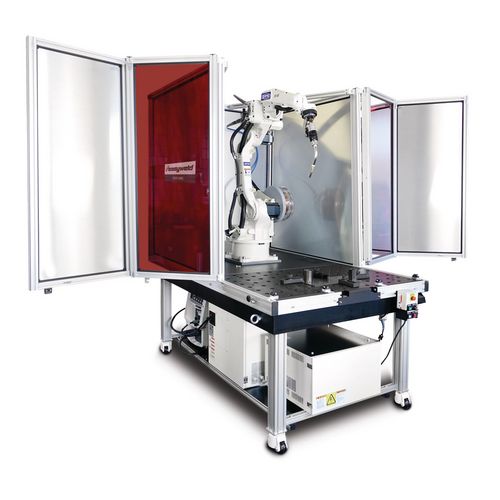

MIG/MAG welding robot station
01.04 FD-B6 Welbee P500L, water cooled, option 03
The mobile welding cell for the craftsman's workshop: simple, inexpensive, safe
76.340,00
EUR excl. Tax / pc(s).
91.608,00
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1850015
Are you interested in this product?
Put a request
Find Trader
Productdetails
Basic Features
Method
- 131/135
Sheet thicknesses
- 1 – 15
Base materials
- DIN-CEN ISO/TR 15608
Typical applications
- Plant construction
- Series manufacturing
- Pipeline construction
Description
Shortage of skilled labour? Optimized production! Production costs under pressure?
The EASY-ARC welding robot is the answer
Compact, mobile and quickly ready for use
- Cost-effective to purchase
- Ready assembled and documented
- Space-saving and flexible
Time-saving operation
- Simple creation of the welding program via the OTC Easy Teach control system
- No extensive training necessary
Stable, precise welding robot
- Physical relief for employees
- Optimized, consistent welding quality
Safe operation
- Protection against access and glare by electrically monitored lightweight protective housing
- Safety engineering with Monitoring Unit (RMU)
| Cooling | |
|---|---|
| Cooling type | AF |
| Device data | |
|---|---|
| Pulse rate | 0,1 - 999 Hz |
| Ignition | high frequency |
| Torch cooling | water |
| Volume gas cylinder max. | 50 l |
| Dimensions and weights | |
|---|---|
| Power source weight | 80 kg |
| Power source length | 710 mm |
| Power source width | 395 mm |
| Power source height | 762 mm |
| Length approx. | 2140 mm |
| Width/depth approx. | 1380 mm |
| Height approx. | 2400 mm |
| Weight approx. | 1350 kg |
| Duty cycle | |
|---|---|
| at Imax. 40°C TIG DC | 30 % |
| Current at 100% DC 40°C TIG DC | AC 270 / DC 300 A |
| Duty cycle at Imax. 40°C | 50 % |
| Current at 60% DC 40°C | 500 A |
| Current at 100% DC 40°C | 410 A |
| Electrical connections | |
|---|---|
| Input current | 22.9 kVA |
| Electrical Data | |
|---|---|
| Current consumption TIG AC | 18,5 A |
| Input current TIG DC | 19 A |
| Input current electrode AC | 24 A |
| Current consumption electrode DC | 24,5 A |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Horizontal rotary positioner | |
|---|---|
| Maximum load capacity | 250 kg |
| Rotation speed | 26 °/s |
| Torque | 205 Nm |
| Repetition accuracy | ± 0,1 mm |
| Power consumption | |
|---|---|
| TIG DC | 12,2 kVA |
| MIG/MAG | 25 kVA |
| Setting range | |
|---|---|
| TIG DC | 5 350 A |
| MIG/MAG | 20 – 500 A |
| Switching stages | continuously variable |
| Standards and certifications | |
|---|---|
| Standard | 2006/42/EG |
| Torch | |
|---|---|
| Cooling | water |
| Torch neck | 45 ° |
| Original equipment contact tip | steel 1.2 mm |
| Maximum load | 500 A |
| Collision protection | B-type integrated |
| Welding robot | |
|---|---|
| Type | FD-B6 |
| Kinematics | vertically articulated robot |
| Number of axes | 6 |
| Working range max. | 1445 mm |
| Maximum load capacity | 6 kg |
| Repetition accuracy | ± 0,08 mm |
| Ambient temperature | 0 – 45 °C |
| Air humidity | 20 – 80 % |
| Welding table | |
|---|---|
| Length | 2000 mm |
| Width | 1200 mm |
| Load capacity approx. | 1000 kg |
| Bore diameter | 28 mm |
| Bore distance | 100 mm |
| Table top material | Steel S355J2+N, plasma nitrided and BAR-coated |
| Table top surface hardness approx. | 450 – 750 Vickers |
| Wire feed | |
|---|---|
| weldable wires steel | DIN EN ISO 14341-A |
| weldable wires stainless steel | DIN EN ISO 14343-A |
| weldable wires aluminium | DIN EN ISO 18273 |
| weldable wires CuSi 3 | DIN EN ISO 24373 |
| weldable wires flux core wire | DIN EN ISO 17632-A |
| Wire feet unit | 4 Rollers |
| Speed | 0 – 22 m/min |
| Wire feed rolls/driven | 2 Rollers |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Cooling | Water |

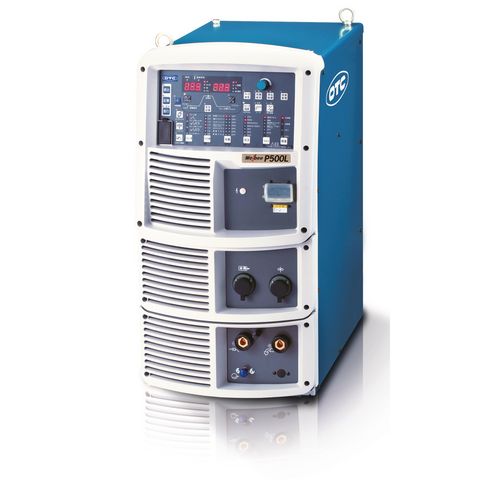

| Welding device | Welbee P500L (water-cooled inverter pulse power source |

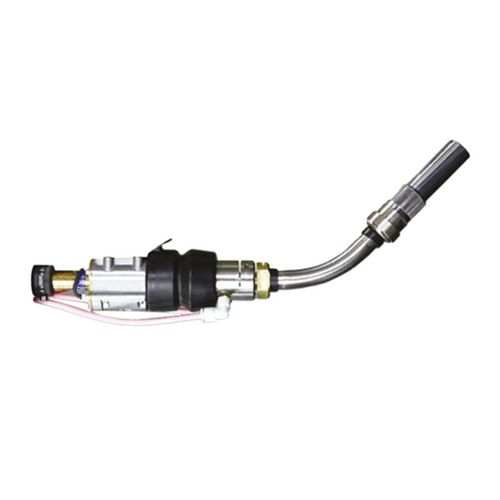

| Torch | RTW5000H, robot welding torch with forced shut-off |

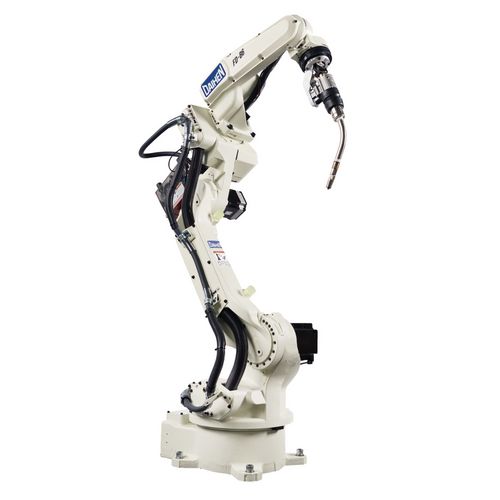

| Welding Robot | Six-axis robot FD-B6 with integrated cable routing for optimum accessibility |

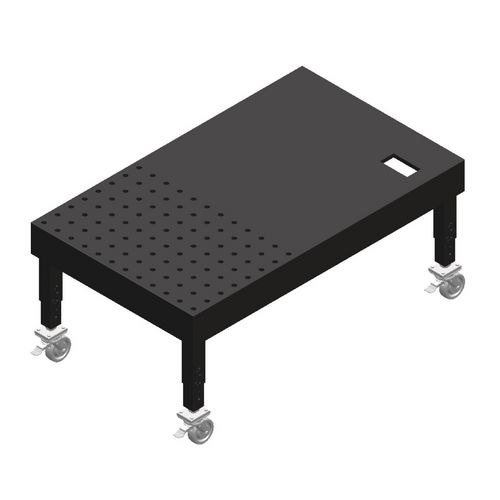

| Welding table | 2000 x 1200 mm, 3D welding table with intelligent system grids for clamping and positioning workpieces |

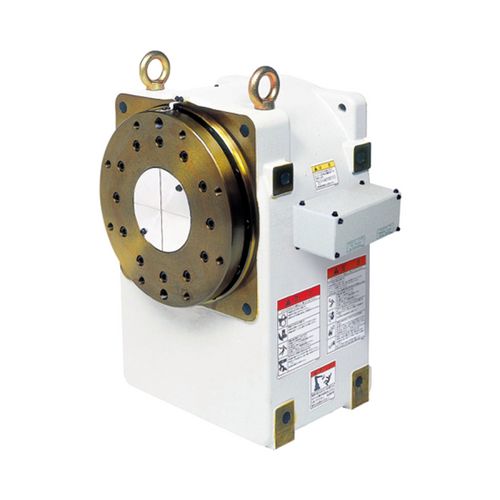

| Positioner | Horizontal rotary positioner A2-1PB250 incl. Synchromotion- Software and integration into the Easy Teach control system |
