- Best cutting results at high cutting speed
- High efficiency due to less rework and reduced consumption of wear parts
- Suitable for a wide range of applications, including standard, extended and gouging
- Excellent cooling of wear parts leads to long tool life

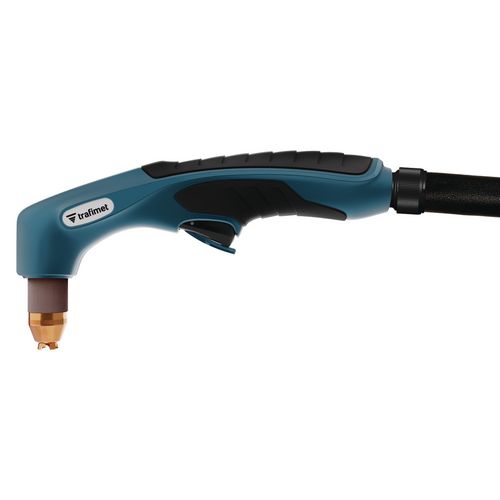

- Special handle shape with rubberized surface provides optimal ergonomics and prevents the cutting torch from twisting in the hand
- Newly developed microswitch torch button for more precision and comfort. A small finger pressure is all that is needed for actuation.
- Torch switch with IP67 protection class

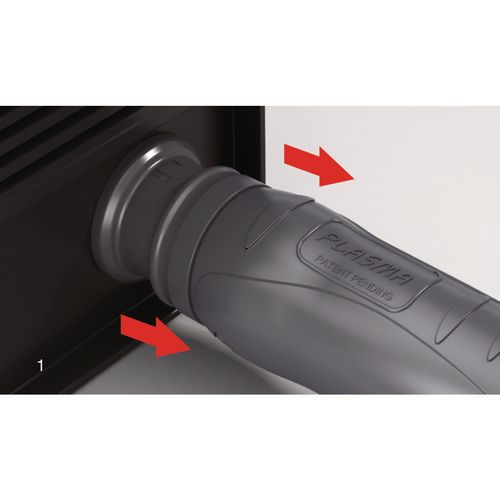

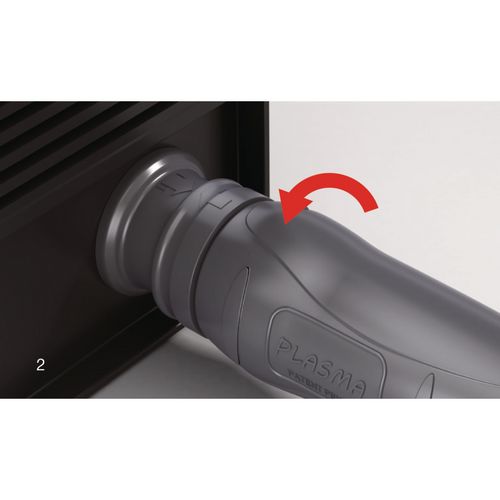

- Unique transformer connector can be connected or disconnected from the machine with one hand
Length hose pack | 6 m |
Specification | flexible hose package |
Equipment as factory default | Initial equipment wear parts |
Connection | Trafimector connection |
Welding current DC max. | 85 A |
Air pressure from to | 4.5 – 5 bar |
Compressed air consumption | 225 l/min |
VPE | 1 |
Dimensions and weights |
---|
Weight approx. | 2.7 kg |
Unit: pc(s).
Packaging unit: 1
