Plasma cutting equipment

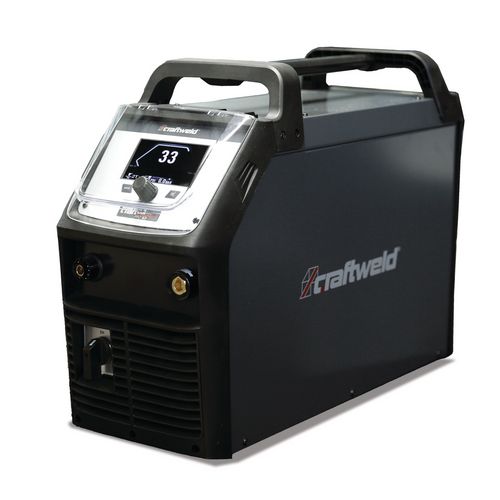

CRAFT-CUT PRO 63
For the strictest requirements
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1365063
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Suitable for use on the generator e.g. in operating workshops, ports, chemical plants, schools, metal construction, on construction sites, ships or for farmers
- Quiet running fans with good heat dissipation for high duty cycles
- For stainless steel, aluminum, steel, non-ferrous metals also with painted surface
- From thin sheets to heavy plates
- Pilot ARC-Controller: Only after ignition of the arc the set welding current is released
- With 2- and 4-stroke function
- CRAFT-CUT PRO 41P with power factor correction PFC for trouble-free use also on cable drum
- Precise setting and display of welding parameters via LC display
- Integrated filter pressure regulator for setting the cutting pressure
| Cutting performance | |
|---|---|
| Quality cutting steel (ST37) max. | 25 mm |
| Separating cut steel (ST37) max. | 30 mm |
| Quality cutting stainless steel max. | 25 mm |
| Separating cut stainless steel max. | 30 mm |
| Quality cutting aluminium max. | 20 mm |
| Separating cut aluminium max. | 22 mm |
| Device data | |
|---|---|
| Air consumption | 140 l/min |
| Pressure | 5 bar |
| Dimensions and weights | |
|---|---|
| Length approx. | 740 mm |
| Width/depth approx. | 260 mm |
| Height approx. | 484 mm |
| Weight approx. | 26.5 kg |
| Duty cycle | |
|---|---|
| Duty cycle plasma | 90 % |
| Current at 100% DC 40°C Plasma | 61 A |
| Electrical connections | |
|---|---|
| Input current | 16.7 A |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50/60 Hz |
| Setting range | |
|---|---|
| Adjusting range plasma approx. | 20 – 65 A |
| Standards and certifications | |
|---|---|
| Standard | EN 60974-1:2012, EN 60974-10:2014 |
| EMC class | A |
| Explanation EMC class | This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system. |
| Marking | CE |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Plasma torch Pluscut 63 6m
- Ground cable 4 m, 8 mm² with ground clamp 300 A
| LC display | 5 " |
| Pilot ARC control | ✔ |
| 2-stroke function | ✔ |
| 4-stroke function | ✔ |
