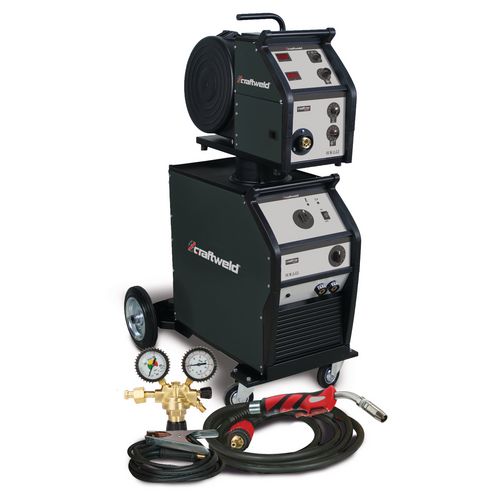

MIG/MAG inert gas welding machine
CRAFT-MAG 353-4S
the inexpensive entry-level class for do-it-yourselfers and semi-professionals
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1361136
Are you interested in this product?
Put a request
Find Trader
Productdetails
Basic Features
Method
- MIG/MAG
Sheet thicknesses
- from 0.8 to 10 mm
Base materials
- Steel
- Stainless steel
- Aluminium
Typical applications
- Body repairs / Reconditioning
- Agriculture
- Tack welds
Description
- For steel and stainless steel welding
- Typical applications: Body repairs/repairs, agriculture, tack welding
- Base materials: structural steels, CrNi steels ferritic/austenitic and duplex steels
- Steplessly adjustable wire feeder
- S sign: Approved for welding at narrow welding locations with increased electrical hazard
- Easy operation and adjustment
- The soft and stable arc guarantees low-spatter welding results
- Practical gas cylinder holder
- Three-year Schweißkraft guarantee
- Quality - Made in Europe
- For steel and stainless steel welding
- Base materials: structural steels, CrNi steels ferritic/austenitic and duplex steels
- Steplessly adjustable wire feed
- Authorized for welding at narrow welding locations with increased electrical hazard
| Cooling | |
|---|---|
| Cooling type | AF |
| Torch cooling | gas |
| Dimensions and weights | |
|---|---|
| Length approx. | 935 mm |
| Width/depth approx. | 550 mm |
| Height approx. | 1240 mm |
| Weight approx. | 138 kg |
| Duty cycle | |
|---|---|
| Duty cycle at Imax. 40°C | 60 % |
| Current at 60% DC 40°C | 350 A |
| Current at 100% DC 40°C | 260 A |
| Electrical connections | |
|---|---|
| Input current | 19 A |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Power consumption | |
|---|---|
| MIG/MAG | 13.2 kVA |
| Efficiency | 80 % |
| Setting range | |
|---|---|
| MIG/MAG | 30 – 350 A |
| Switching stages | 21 (3x7) |
| Standards and certifications | |
|---|---|
| Standard | EN 60974-1, -10 |
| EMC class | A |
| Explanation EMC class | This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system. |
| Marking | CE, S |
| Wire feed | |
|---|---|
| weldable wires steel | 0,8 - 1,2 mm |
| weldable wires stainless steel | 0,8 - 1,2 mm |
| weldable wires aluminium | 1.0 – 1.2 mm |
| weldable wires flux core wire | 1.0 – 1.2 mm |
| Wire feet unit | 4 Rollers |
| Speed | 1 – 23 m/min |
| Wire feed rolls/driven | 4 Rollers |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Torch SMB 36, 4 m
- Basket spool adapter
- Feed roller 1.0 - 1.2 mm
- Gas hose 1,5 m
- Pressure reducer large
- Ground cable 3 m, 50 mm²
- Intermediate hose package 5 m
| Type of construction | with case |
