Laser welder
Craft-Laser 1500 S
Device with wire feed case, large LCD display and trolley
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1390015
Are you interested in this product?
Put a request
Find Trader
Productdetails
Basic Features
Method
Sheet thicknesses
Description
- Innovative welding process with high-precision and powerful laser beam
- Problem-free welding of steel, stainless steel, aluminium, brass etc.
- Machine can also handle laser cleaning up to 100 mm scan width
- Great savings potential thanks to three to four times faster welding and maximum potential reduction in the error rate
- Extremely fine and clean welding seams are possible in spite of significantly higher welding speeds compared with conventional welding processes
- Low heat input into the workpiece
- With wobble function
- Simple operation with laser welding gun and automatic wire feed. High-quality welding seams, even with minimal welding experience
- Two-channel safety circuit: contact clamp for workpiece and monitoring of the door contact switch
- Wire feed unit included
- On/off switch for the wire feed directly on the laser gun

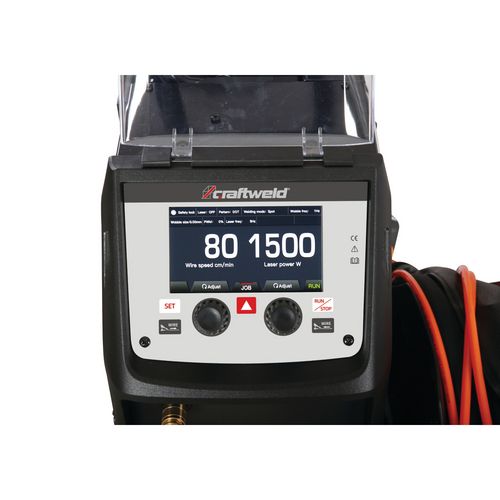

- Easy operation thanks to large colour display and simple control buttons
- Machine can be operated from the wire feed case as well as from the machine - maximum flexibility!
- Advantages of laser welding compared to conventional welding processes: less material distortion, cleaner welding results, more cost-efficient, wobble technology for wide welding seams
- Problem-free processing of steel, stainless steel, aluminum, brass
- Machine can also handle laser cleaning up to 100 mm scan width
- Great savings potential thanks to three to four times faster processing and a reduction in the error rate
- Low heat input into the workpiece
- With wobble function
- Simple operation with laser welding gun and automatic wire feed: High-quality weld seams, even without many years of welding experience
- On/off switch for the wire feed directly on the laser gun
| Cooling | |
|---|---|
| Cooling type | air-cooled |
| Dimensions and weights | |
|---|---|
| Weight power source | 53 kg |
| Weight wire feed case | 11.5 kg |
| Length approx. | 750 mm |
| Width/depth approx. | 600 mm |
| Height approx. | 1000 mm |
| Weight approx. | 130 kg |
| Electrical connections | |
|---|---|
| Input Power | 4.8 kW |
| Output Power | 1.5 kW |
| Electrical Data | |
|---|---|
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Laser | |
|---|---|
| Wobble | 0 – 5 mm |
| Spectrum width | 3 – 4 nm |
| Red guide laser power | 200 µW |
| Max. Average power Visible radiation | 0.2 mW |
| Max. Average power Invisible radiation | 1500 W |
| Wavelength range Visible radiation | 640±10 nm |
| Wavelength range Invisible radiation | 1080±10 nm |
| Laser class Visible radiation | 2 |
| Laser class Invisible radiation | 4 |
| Setting range | |
|---|---|
| Setting range for 230 V | 5 – 1500 W |
| Weldable material thickness | |
|---|---|
| weldable material thickness steel | 0.8 – 6 mm |
| weldable material thickness stainless steel | 0.8 – 6 mm |
| weldable material thickness aluminum | 0.8 – 4 mm |
| Wire feed | |
|---|---|
| weldable wires steel | 0.6 – 1.6 mm |
| weldable wires stainless steel | 0.6 – 1.6 mm |
| weldable wires aluminium | 1.0 – 1.6 mm |
| Wire feet unit | 4 Rollers |
| Wire feed speed | 0.25 – 6 m/min |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

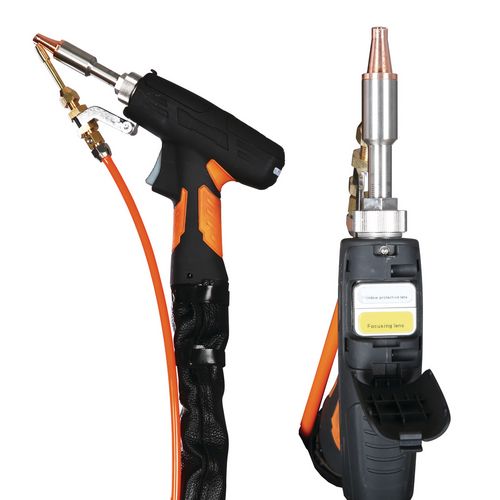

- Welding gun
- Gas hose 4 m
- 5 protective glasses for laser welding gun
- 2 conveyor rollers 0.8 / 1.0 V-groove
- 2 conveyor rollers 1.0 / 1.2 V-groove
- 2 conveyor rollers 1.2 / 1.6 V-groove
- 2 conveyor rollers 0.8 / 1.0 U-groove
- 2 conveyor rollers 1.0 / 1.2 U-groove
- 2 conveyor rollers 1.2 / 1.6 U-groove
- 3 nozzles AS-12 for laser welding gun
- 3 nozzles ES-12 for laser welding gun
- 3 BS-16 nozzles for laser welding gun
- 3 cutting nozzles
- Laser cleaning accessories
- Filter pressure regulator 1/4" 16 bar
- Plug nipple with external thread 1/4" AG
- Double nipple G 1/4" x G 1/4"
- Faceshield FS 1 (golden visor)
