| Connecting thread | 1/4 " |
| Adjustment range | 0.6 – 16 bar |
| Max. operating pressure | 16 bar |
| Min. inlet pressure | 1,5 bar |
| Max. inlet pressure | 16 bar |
| Condensate vessel volume | 28 cm³ |
| Operating temperature min. | -10 °C |
| Operating temperature max. | +50 °C |
| Condensate drain | semiautomatic |
| Container | Polycarbonate container with polyamide protection cage |
| Filter fineness | 5 μm |
| Medium | Compressed air, neutral gases |
| Connection pressure gauge | 1/4 " |
| VPE | 1 |

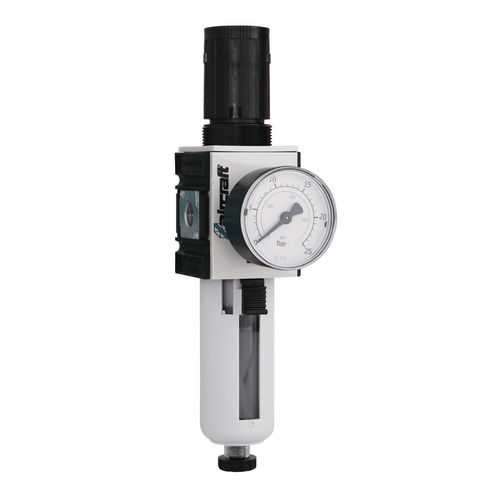

Filter pressure regulator
1/4" 16 bar
38,90
EUR excl. Tax / pc(s).
46,68
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2317110
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Sintered filter with centrifugal principle and diaphragm pressure regulator with secondary venting
- For compressed air and neutral gases
- Inlet pressure 1.5 - 16 bar
- Suitable for temperatures from -10 to +50°C
- Semi-automatic condensate drain
- Safety via lockable handwheel
- For vertical installation
- Sintered filter with centrifugal principle and diaphragm pressure regulator with secondary venting
- For compressed air and neutral gases
- Inlet pressure 1.5 - 16 bar
- Suitable for temperatures from -10 to +50°C
- Semi-automatic condensate drain
- Secured by lockable handwheel
- For vertical installation
| Dimensions and weights | |
|---|---|
| Length approx. | 52 mm |
| Width/depth approx. | 54 mm |
| Height approx. | 226 mm |
| Weight approx. | 0.3077 kg |
Unit: pc(s).
Packaging unit: 1
