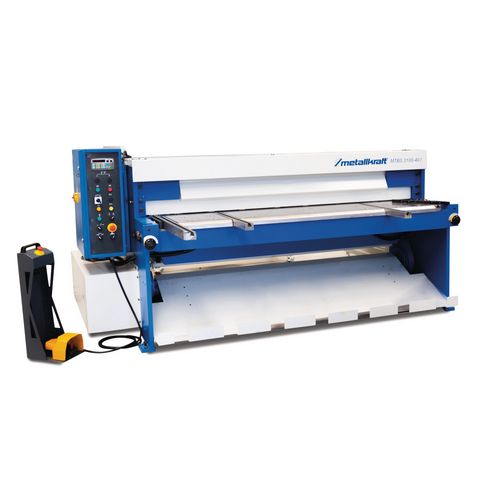

MTBS 3130-40 T

With NC-controlled backgauge, front and rear ejection and manual gap adjustment

51.990,00 EUR excl. Tax / pc(s).
62.388,00 EUR incl. 20% Tax / pc(s).

Promotional price *

45.999,00 EUR excl. Tax / pc(s).
55.198,80 EUR incl. 20% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 3815631

Are you interested in this product?

Put a request

Find Trader

Productdetails

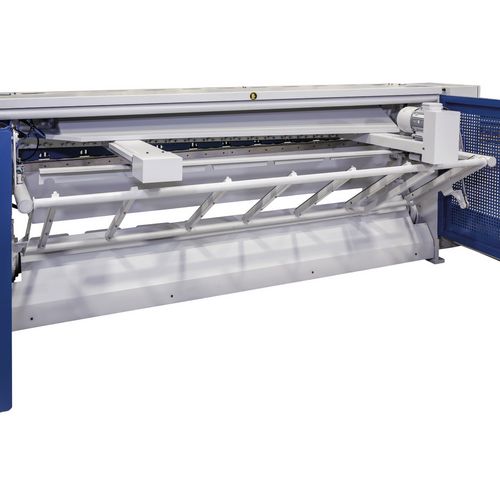

Pneumatic sheet support, sheet ejection to the front or rear controllable via toggle switch
Backgauge 750 mm guided on round shafts and driven via ball screw
Stainless steel table supports with transfer balls for comfortable material handling

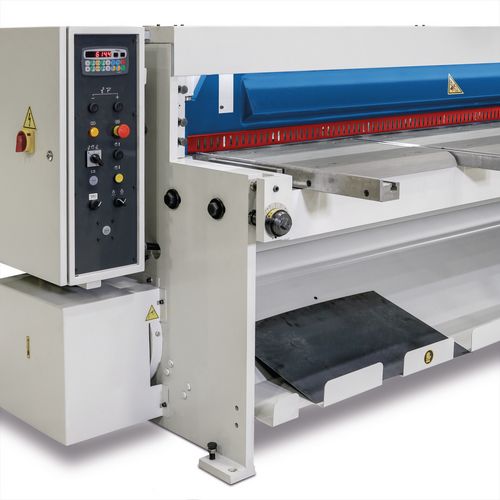

Positioning control of the backgauge Maper HT071 with digital dimension display
Heavy and robust steel construction in welded design
Constant, low cutting angle for optimum cutting results
Side fence 1000 mm with scale and T-slot
Two material support arms 500 mm with T-slot
Balls in the support table for easier material transport
Cutting gap adjustment by means of vernier rings
High quality blade suitable for stainless steel
LED illumination of the cutting area
Continuous finger protection device
Mobile foot pedal with emergency stop switch
All moving parts with low-maintenance bearings

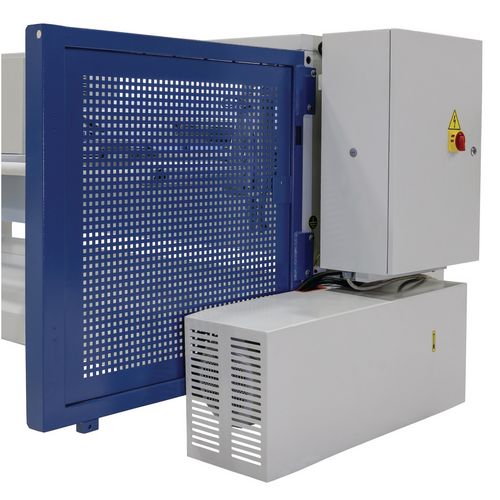

Electrical system from Siemens and Schneider

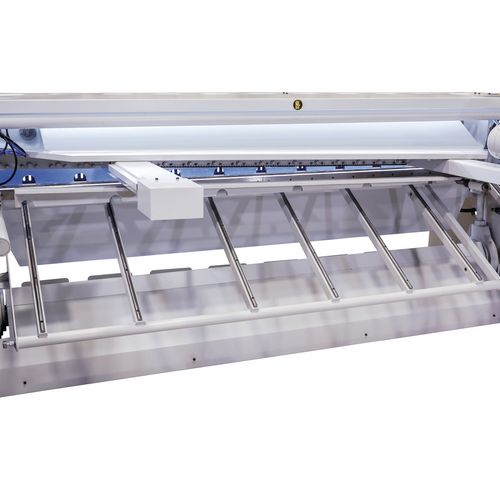

Thin sheets are supported in order to be able to apply dimensionally to the backgauge

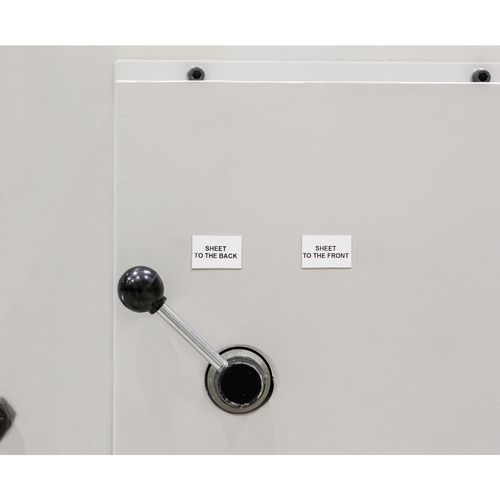

pneumatic sheet holding device with selector lever for the direction of the sheet metal chute
Operator can choose if the section falls into the back room or the operator side

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

Working width	3050 mm
Cutting performance material tensile strength 400 N/mm²	4 mm
Cutting performance material tensile strength 450 N/mm²	4 mm
Cutting performance material tensile strength 700 N/mm²	2.5 mm
Number of sheet support arms	3 St
Rear stop adjustment range up to	750 mm
Rear stop speed	28 mm/s
Side stop length	1000 mm
Motor output rear stop	0.37 kW
Cutting angle	1,5 °
Max. strokes for full cutting length	38 /min
Cutting kerf adjustment min.	0.05 mm
Cutting kerf adjustment max.	0.4 mm
VPE	1

Dimensions and weights
Table length	3400 mm
Table depth	530 mm
Table height	900 mm
Machine body depth	1080 mm
Length approx.	3910 mm
Width/depth approx.	2500 mm
Height approx.	1500 mm
Weight approx.	5000 kg

Electrical Data
Absorbed power drive motor	8.45 kW
Total rated value	9 kW
Supply voltage	400 V
Mains frequency	50 Hz

Unit: pc(s).
Packaging unit: 1

Table support made of stainless steel	✔
Star-delta start-up	✔
