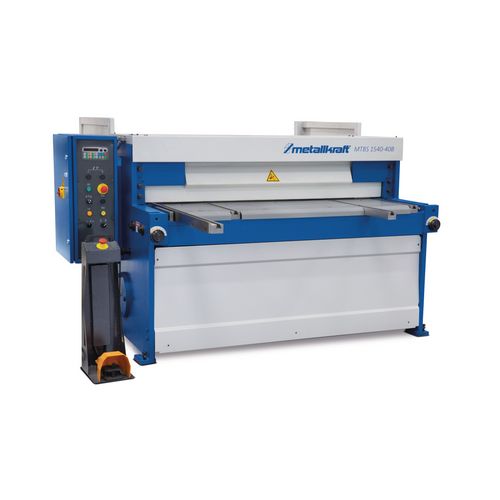

    Motorized sheet metal shears

    MTBS 1540-40 B

    With NC-controlled backgauge

    25.790,00 EUR excl. Tax / pc(s).
    30.948,00 EUR incl. 20% Tax / pc(s).
    Promotional price *
    21.999,00 EUR excl. Tax / pc(s).
    26.398,80 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3815515

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Heavy, robust welded construction
    • Splitter-guided upper beam with adjustable flat guides
    • Manual cutting gap adjustment at the front of the machine

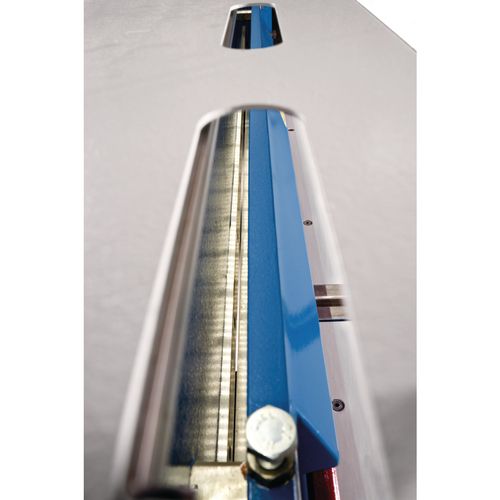

    • LED cutting line illumination and elongated holes in the top cover for an optimal view of the cutting edge and for cutting on tear-off
    • Solid 90° side stop with 1000 mm length, T-slot, tilting cam and scale

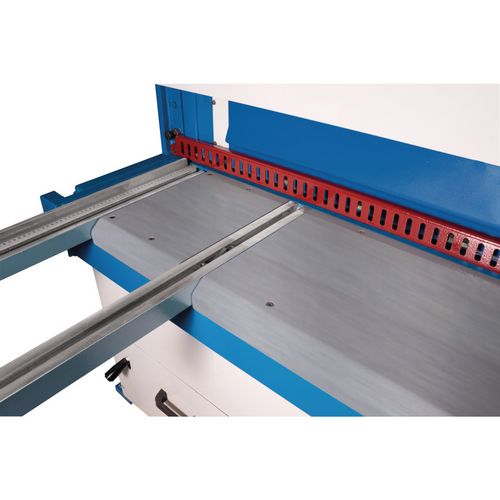

    • Two solid sheet support arms with T-slots and tilting cams
    • Motorized, NC-controlled backgauge with 750 mm travel range
    • Backgauge drive with frequency converter, motor with brake and recirculating ball screws
    • High-quality, rotatable knives suitable for cutting stainless steel
    • Heavy hold-down beam with gentle rubber inserts
    • Rear area protected by light curtain

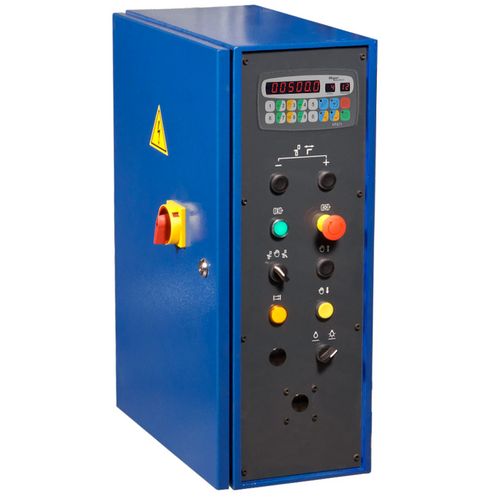

    • Operation via mobile foot pedal console with emergency stop



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Working width1540 mm
    Cutting performance material tensile strength 400 N/mm²4.0 mm
    Cutting performance material tensile strength 700 N/mm²2.5 mm
    Cuts per minute40
    Rear stop adjustment range up to750 mm
    Cutting angle2.0 °
    Air consumption per cycle4 l
    VPE1
    Dimensions and weights
    Length approx.2170 mm
    Width/depth approx.2160 mm
    Height approx.1280 mm
    Weight approx.2200 kg
    Electrical Data
    Drive motor output5.5 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1







    Table support made of stainless steel✔
