| Explanation to cutting performances | with limited material length |
| Rear stop adjustment range up to | 1000 mm |
| Rear stop speed | 120 mm/s |
| Side stop length | 1500 mm |
| Motor output rear stop | 0.37 kW |

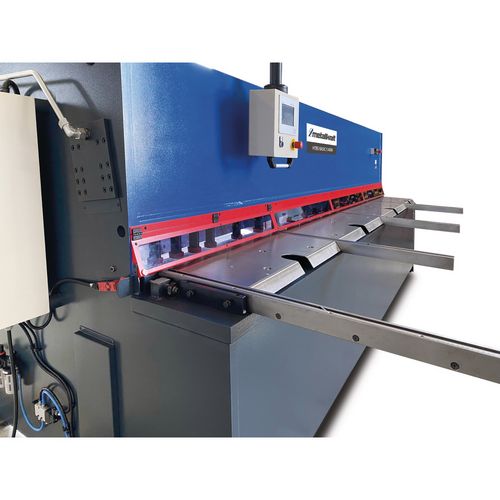

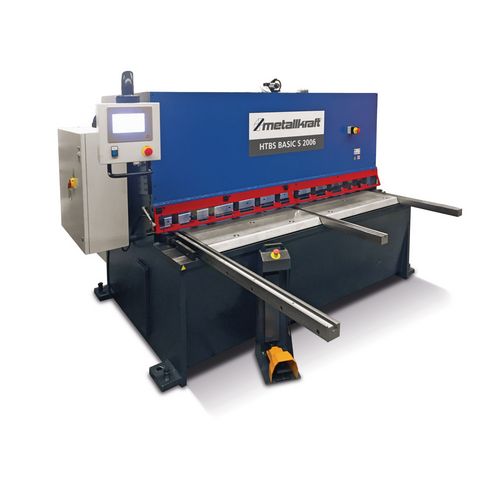

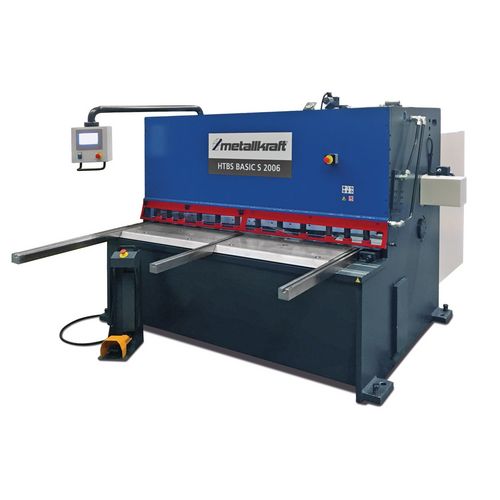

Hydraulic swing cut sheet metal shears
HTBS BASIC S
Equipped with metal slide and motorized cutting gap adjustment
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Electrical Data | Price | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Working width (mm) | Cutting performance material tensile strength 400 N/mm² (mm) | Cutting performance material tensile strength 700 N/mm² (mm) | Number of hold-down units (St) | Number of sheet support arms (St) | Cutting angle (°) | Max. strokes for full cutting length (/min) | Cutting kerf adjustment min. (mm) | Cutting kerf adjustment max. (mm) | Oil tank capacity (l) | VPE | Table length (mm) | Table depth (mm) | Table height (mm) | Length approx. (mm) | Width/depth approx. (mm) | Height approx. (mm) | Weight approx. (kg) | Drive motor output (kW) | EUR excl. Tax | EUR incl. 20% Tax | |
| HTBS BASIC S 2006 | 4205020 | 2060 | 6 | 4 | 12 | 2 | 1,5 | 24 | 0.05 | 0,6 | 180 | 1 | 2320 | 485 | 800 | 2900 | 3120 | 1900 | 5100 | 11 | Price upon request | - | |
| HTBS BASIC S 2010 | 4205021 | 2060 | 10 | 6 | 12 | 2 | 1,5 | 12 | 0.05 | 1 | 300 | 1 | 2370 | 585 | 900 | 2950 | 3450 | 2200 | 7600 | 22 | Price upon request | - | |
| HTBS BASIC S 2506 | 4205026 | 2560 | 6 | 4 | 15 | 2 | 1,5 | 22 | 0.05 | 0,6 | 180 | 1 | 2820 | 485 | 800 | 3530 | 3120 | 1900 | 5450 | 11 | Price upon request | - | |
| HTBS BASIC S 2510 | 4205027 | 2560 | 10 | 6 | 14 | 2 | 1,5 | 12 | 0.05 | 1 | 300 | 1 | 2870 | 585 | 900 | 3460 | 3450 | 2200 | 8300 | 22 | Price upon request | - | |
| HTBS BASIC S 3006 | 4205030 | 3060 | 6 | 4 | 17 | 2 | 1,5 | 20 | 0.05 | 0,6 | 180 | 1 | 3320 | 485 | 800 | 3900 | 3120 | 1900 | 6550 | 11 | Price upon request | - | |
| HTBS BASIC S 3010 | 4205031 | 3060 | 10 | 6 | 16 | 2 | 1,5 | 12 | 0.05 | 1 | 300 | 1 | 3370 | 585 | 900 | 3950 | 3450 | 2200 | 10200 | 22 | Price upon request | - | |
| HTBS BASIC S 3013 | 4205032 | 3060 | 13 | 8 | 16 | 2 | 1,8 | 12 | 0.08 | 1.3 | 400 | 1 | 3440 | 600 | 900 | 3950 | 3650 | 2300 | 12100 | 30 | Price upon request | - | |
| HTBS BASIC S 3016 | 4205033 | 3060 | 16 | 10 | 16 | 2 | 2 | 10 | 0.08 | 1.6 | 500 | 1 | 3500 | 600 | 900 | 4050 | 3650 | 2300 | 16100 | 37 | Price upon request | - | |
| HTBS BASIC S 4006 | 4205040 | 4060 | 6 | 4 | 21 | 3 | 1,2 | 12 | 0.05 | 0,6 | 180 | 1 | 4330 | 485 | 850 | 4950 | 3120 | 1900 | 9510 | 11 | Price upon request | - | |
| HTBS BASIC S 4010 | 4205041 | 4060 | 10 | 6 | 20 | 3 | 1,5 | 10 | 0.05 | 1 | 350 | 1 | 4400 | 585 | 900 | 5000 | 3450 | 2100 | 13800 | 30 | Price upon request | - | |
| HTBS BASIC S 4013 | 4205042 | 4060 | 13 | 8 | 20 | 3 | 1,8 | 8 | 0.08 | 1.3 | 450 | 1 | 4440 | 600 | 900 | 5040 | 3650 | 2300 | 16500 | 37 | Price upon request | - | |
| HTBS BASIC S 4016 | 4205043 | 4060 | 16 | 10 | 20 | 3 | 2 | 6 | 0.08 | 1.6 | 500 | 1 | 4500 | 600 | 900 | 5060 | 3650 | 2300 | 20500 | 45 | Price upon request | - | |
Select Attributes
General
- Working width
- Cutting performance material tensile strength 400 N/mm²
- Cutting performance material tensile strength 700 N/mm²
- Number of hold-down units
- Number of sheet support arms
- Cutting angle
- Max. strokes for full cutting length
- Cutting kerf adjustment min.
- Cutting kerf adjustment max.
- Oil tank capacity
- VPE
Dimensions and weights
- Table length
- Table depth
- Table height
- Length approx.
- Width/depth approx.
- Height approx.
- Weight approx.
Electrical Data
- Drive motor output
Price
- excl. Tax
- incl. 20% Tax
Productdetails
Standard version:

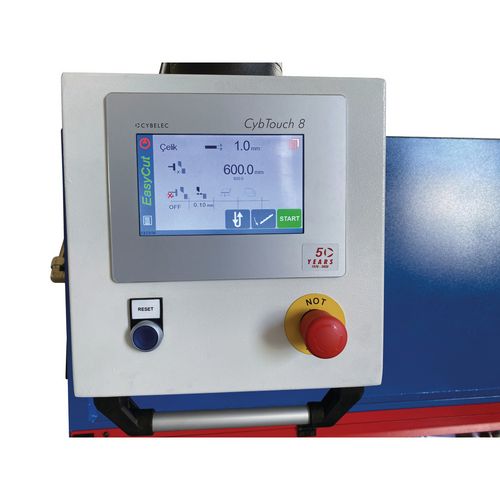

- CybTouch 8 touchscreen NC control in the swivel arm

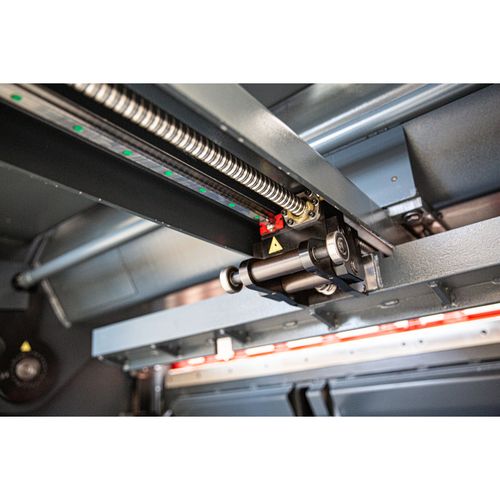

- NC-controlled backgauge (5-1000mm) driven via recirculating ball screws and guided linearly
- Safety light curtain for the rear area

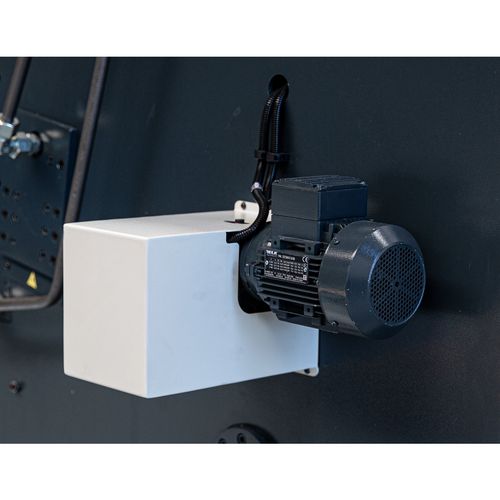

- Motorized cutting gap adjustment via the control unit
- 1500 mm side fence with scale and T-slot
- Front support arms 1000mm with scale and T-slot
- Stainless steel table supports with integrated transfer balls

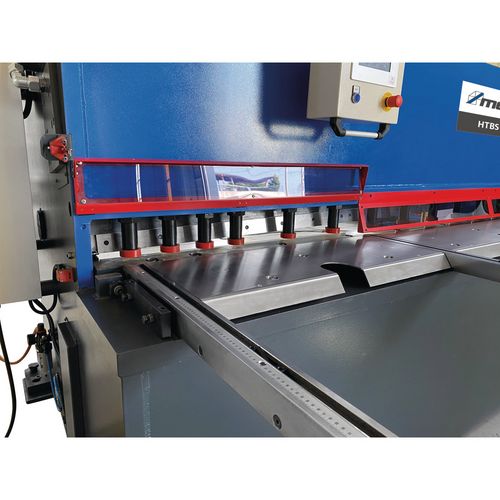

- Hold-down device with plastic caps to protect the material
- Variable cutting length adjustment via the control unit
- Folding finger guard 1000mm with viewing window inserts

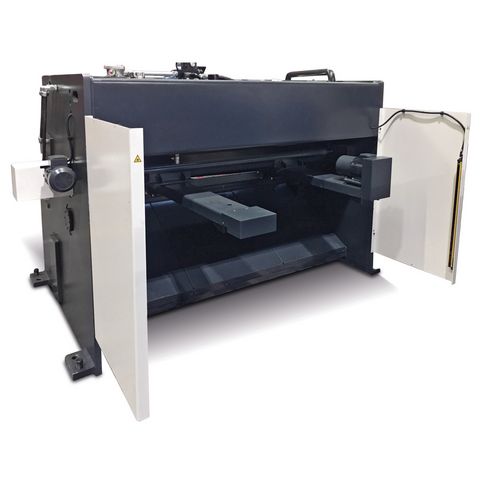

- Sheet chute in the rear area
- Cutting line lighting with silhouette
- Knives suitable for cutting stainless steel
- Upper blade with two cutting edges and lower blade with four cutting edges
- Electrical components from Schneider and Mitsubishi
Equipment options:
- Adjustable angle fence
- Laser cutting line display
- Front light barrier instead of finger guard
- Finger guard can be opened over the entire length
- Additional front support arms
- Additional side stop on the right
- Extensions of the standard support arms, the side or back gauge
- Transfer ball in the side stop and the front support arms
- Servo motor for the back gauge
- Manual or automatic central lubrication
- Pneumatic sheet support systems
- Small parts diverter with pneumatic opening
- Oil cooler or oil warmer
- touch screen NC-control CybTouch 8 in swivel arm
- NC-controlled backgauge (5-1000mm) driven by ball screws
- Safety light barrier for the rear area
- motorized cutting gap adjustment via the control
- side stop 1500mm with scale and T-slot
- Two front support arms 1000mm
- Table supports made of stainless steel with integrated transfer balls
- Folding finger guard 1000mm with viewing glass sowingtzen
- upper knife with two and lower knife with four cutting edges
- Extensive options available
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
