| Cuts per minute | 34 |
| Rear stop adjustment range up to | 550 mm |
| Air consumption per cycle | 4 l |

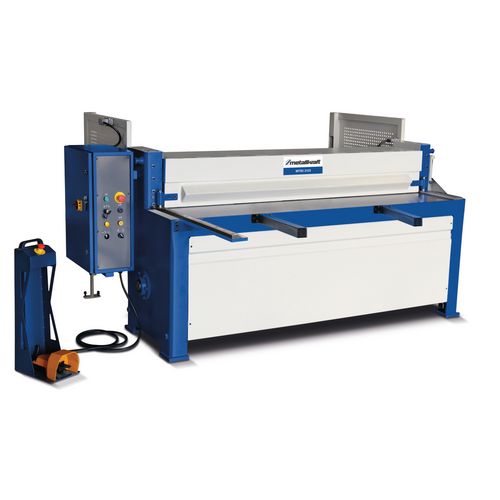

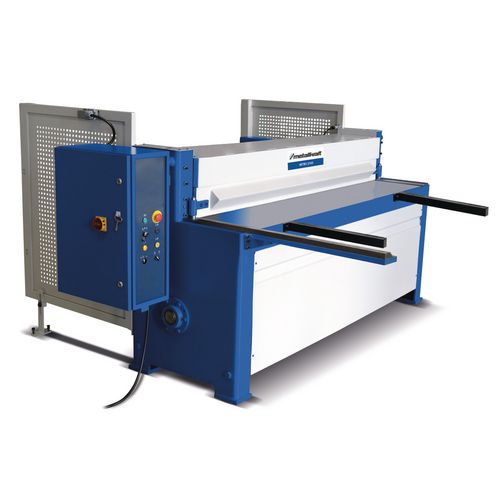

Motorized sheet metal shears
MTBS 2103/3102
Heavy, robust welded construction with manual rear stop
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Electrical Data | Price | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Working width (mm) | Cutting performance material tensile strength 400 N/mm² (mm) | Cutting performance material tensile strength 700 N/mm² (mm) | Number of sheet support arms | Cutting angle (°) | VPE | Length approx. (mm) | Width/depth approx. (mm) | Height approx. (mm) | Weight approx. (kg) | Drive motor output (kW) | Absorbed power drive motor | EUR excl. Tax | EUR incl. 20% Tax | |
| MTBS 2103 | 3815420 | 2040 | 3 | 1,5 | 2 | 2,4 | 1 | 2620 | 1800 | 1370 | 1300 | 3 | Price upon request | - | ||
| MTBS 2103 F | 3815421 | 2040 | 3 | 1.5 | 2,4 | 1 | 2620 | 1800 | 1500 | 1300 | 3 | Price upon request | - | |||
| MTBS 3102 | 3815430 | 3060 | 2 | 1.2 | 2 | 1.6 | 1 | 3650 | 2300 | 1400 | 1820 | 3 | Price upon request | - | ||
| MTBS 3102 F | 3815431 | 3060 | 2 | 1.2 | 1.6 | 1 | 3650 | 2300 | 1400 | 1840 | 3 | Price upon request | - | |||
Select Attributes
General
- Working width
- Cutting performance material tensile strength 400 N/mm²
- Cutting performance material tensile strength 700 N/mm²
- Number of sheet support arms
- Cutting angle
- VPE
Dimensions and weights
- Length approx.
- Width/depth approx.
- Height approx.
- Weight approx.
Electrical Data
- Drive motor output
- Absorbed power drive motor
Price
- excl. Tax
- incl. 20% Tax
Productdetails
- Sliding upper beam with adjustable flat guides
- Manual backgauge with 550 mm travel range

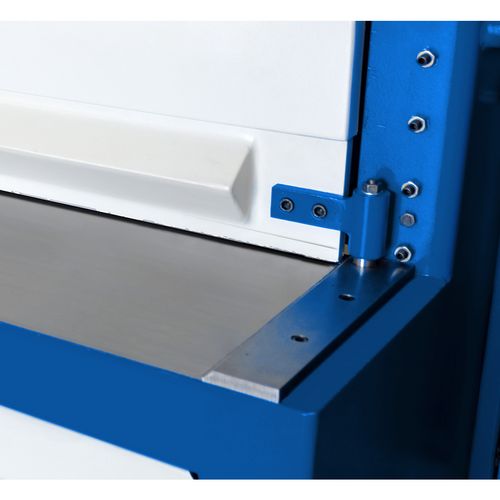

- Solid 90° side fence with 1000 mm length, T-slot, tilting cam and scale
- LED cutting line lighting and slotted holes in the top cover for an optimum view of the cutting edge for cutting on tear
- High-quality, rotatable knives suitable for cutting stainless steel Heavy-duty hold-down beam with material-friendly polyurethane inserts suitable for cutting stainless steel
- Heavy-duty hold-down bar with material-friendly polyurethane inserts

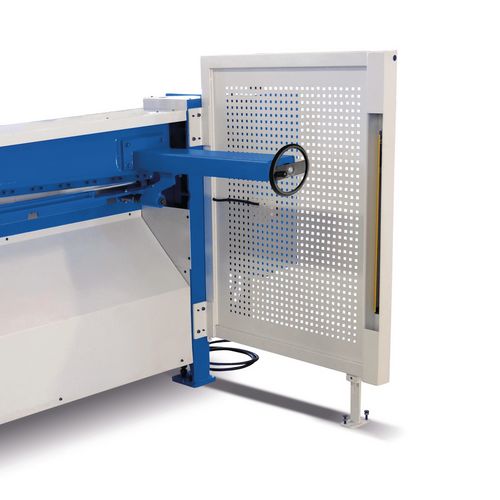

- Rear area protected by light barrier
- Operation via mobile foot pedal console with emergency stop
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
