| Piston stroke | 300 mm |
| Lowering speed | 9 mm/s |
| Press speed | 5 mm/s |
| Return speed | 10 mm/s |

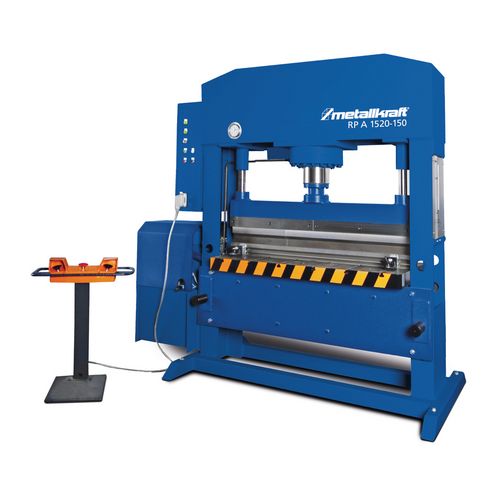

Hydraulic frame press with folding device
RP A
For bending of large plate thicknesses, bending of long sheets and straightening of plates
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Electrical Data | Price | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Pressure force (t) | VPE | Clear width (mm) | Max. installation height (mm) | Min. installation height (mm) | Work table width (mm) | Work table length (mm) | Length approx. (mm) | Height approx. (mm) | Weight approx. (kg) | Drive motor output (kW) | EUR excl. Tax | EUR incl. 20% Tax | |
| RP A 1020-100 | 4021611 | 100 | 1 | 1020 | 680 | 325 | 500 | 1020 | 2110 | 2275 | 1900 | 7,5 | Price upon request | - | |
| RP A 1020-150 | 4021615 | 150 | 1 | 1020 | 610 | 275 | 600 | 1020 | 2110 | 2450 | 2400 | 11 | Price upon request | - | |
| RP A 1520-100 | 4021651 | 100 | 1 | 1520 | 680 | 325 | 500 | 1520 | 2630 | 2275 | 2500 | 7,5 | Price upon request | - | |
| RP A 1520-150 | 4021655 | 150 | 1 | 1520 | 610 | 275 | 600 | 1520 | 2630 | 2450 | 3100 | 11 | Price upon request | - | |
Select Attributes
General
- Pressure force
- VPE
Dimensions and weights
- Clear width
- Max. installation height
- Min. installation height
- Work table width
- Work table length
- Length approx.
- Height approx.
- Weight approx.
Electrical Data
- Drive motor output
Price
- excl. Tax
- incl. 20% Tax
Productdetails

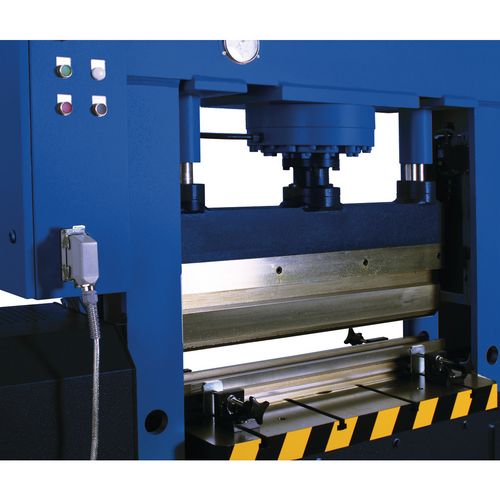

- Very heavy and robust welded construction
- Upper beam twice to ensure parallelism
- Cranked upper tool
- 5-cavity matrix with V-openings 10, 20, 30, 40 and 65mm (for press force table see page 161)
- Upper and lower end position of the piston stroke infinitely adjustable via cams
- Pressure infinitely adjustable
- Pressure gauge for pressure gauge
- Height-adjustable work table
- Two-hand operation and foot pedal
| Dimensions and weights | |
|---|---|
| Hole spacing for table height adjustment | 190 mm |
| Work table bore diameter | 100 mm |
| Width/depth approx. | 1000 mm |
Unit: pc(s).
