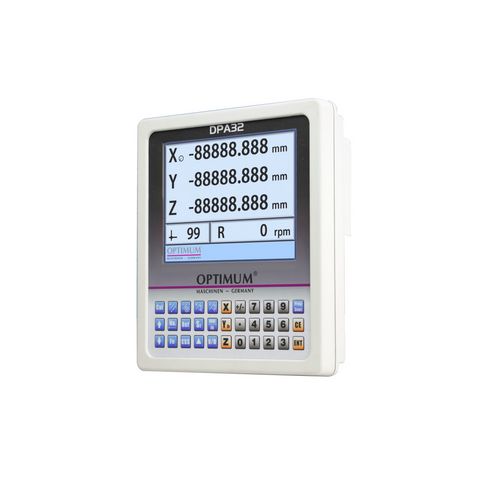

    Productimage for DPA 32
    Brandimage to Product DPA 32

    Digital position indicator

    DPA 32

    Universal digital position indicator for three axes with speed display guarantees excellent results for machines and improves their accuracy - With CSS function and cutting constant VSC

    725,00 EUR excl. Tax / pc(s).
    870,00 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3384033

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails



    Details

    • LED display
    • Higher working accuracy
    • Significant reduction of production times
    • Error rate is reduced
    • Included sensor for recording spindle speeds
    • Switchable from turning to milling machines
    • Ergonomic membrane keyboard, protected against dust and splash water

    Especially for lathes

    • Diameter or radius display
    • Display of Z0 and Z1 axes with addition function, separately or together possible especially for milling machines
    • Trigonomic function (sin, cos, tan)
    • Pitch circle calculation with single coordinate indication

    Application

    • for precise, fast and safe production
    • Fast setup through exact positioning for mounting on lathes, milling machines, drilling machines, etc. for measuring traverse paths
    • No parallax or reading errors
    • Absolute repeatability

    Possible functions

    • Calculator
    • Speed display,
    • Axis coupling (sum Z)
    • Sub D connector sockets
    • Absolute/incremental operation
    • Conversion inch/metric thread
    • Bolt circle calculator (chain dimension)
    • Coordinates in circle (pitch circle)
    • Holes in circle (pitch circle)
    • Measured values radius/diameter switchable
    • Zero reset data preset
    • Self-diagnosis
    • Reference point
    • Linear error compensation
    • 99 tool memories

    suitable for

    • OPTIMUM lathes
    • OPTIMUM milling machines

    Note

    When retrofitting position indicators and measuring bars for lathes and milling machines, holes and threads must be provided on the machine by the customer.



    Unit: pc(s).
    Packaging unit: 1
