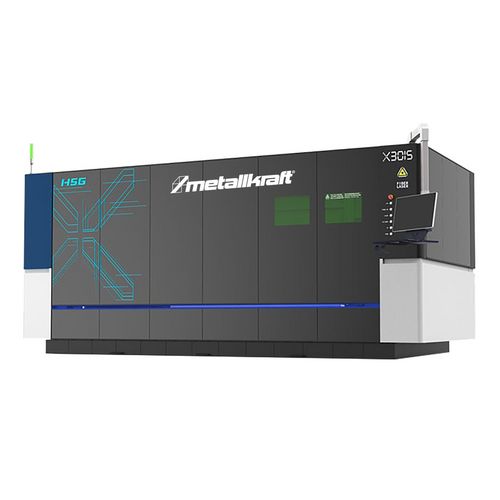

Laser cutting system
X3015 3kW
Compact laser cutting system with extendable table
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4650090
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Compact, space-saving and inexpensive fiber laser
- Manually extendable work table - electrically supported
- Work table safety door can be opened and closed electrically
- Sturdy welded construction for high rigidity, precision and durability
- Machine bed shielded by manganese steel plates to protect against heat, sparks and slag
- Effective cutting fume extraction, controlled flaps concentrate the suction power on the current work area
- Raycus laser source with autofocus laser head from HSG (optional laser source from IPG)
- Laser head with higher focusing speed than comparable units, resulting in higher piercing speeds for thick materials
- Main lens protected by easily replaceable double protective lens
- Efficient water cooling of the laser head
- Current stabilizer to compensate for voltage fluctuations and thus ensure consistent cutting quality
- Very easy handling of the machine and the user-friendly software
- Control software with many templates for programming simple components
- Material storage management
- User-friendly nesting software with many features
- Camera-monitored working area of the laser with transmission to screen
| Max. travel X-axis | 3000 mm |
| Max. travel Y-axis | 1500 mm |
| Max. travel speed | 120 m/min |
| Position accuracy | ± 0.03 mm/m |
| Max. machine table load | 1000 kg |
| Acceleration | 1.5 G |
| VPE | 1 |
| Cutting performance | |
|---|---|
| Material thickness max. mild steel | 20 mm |
| Material thickness max. stainless steel | 10 mm |
| Material thickness max. aluminum | 6 mm |
| Material thickness max. brass | 6 mm |
| Material thickness max. copper | 4 mm |
| Explanation Material thickness max. | Information on the maximum material thickness depending on the cutting gas used (nitrogen, oxygen, air) |
| Dimensions and weights | |
|---|---|
| Length approx. | 4900 mm |
| Width/depth approx. | 5000 mm |
| Height approx. | 2521 mm |
| Weight approx. | 4800 kg |
| Electrical Data | |
|---|---|
| Laser power | 3 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
