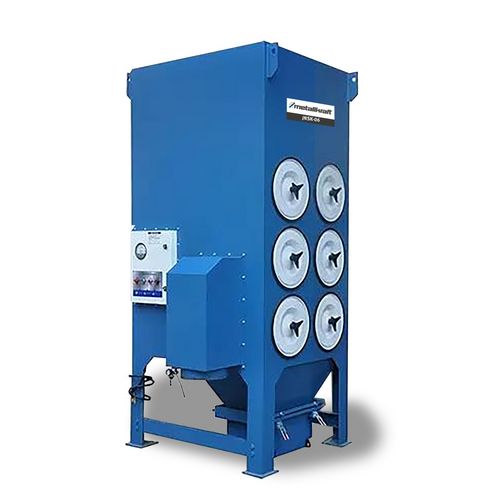

Extraction system for laser cutting systems
JNSK-06
High air volume for efficient dust separation
7.990,00
EUR excl. Tax / pc(s).
9.588,00
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4670070
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Pulse-controlled reverse blowing technology for effective cleaning of the filters and reduced maintenance effort
- Designed for continuous operation with consistently high performance
- Replaceable filter cartridges
- Suitable for all GH and GX 3015 and 4020 and TS and TPS models
| Nominal volume flow | 6000/7000 m³/h |
| Filter category | F9 |
| Filter cleaning | Automatic |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 1220 mm |
| Width/depth approx. | 1060 mm |
| Height approx. | 2650 mm |
| Weight approx. | 500 kg |
| Electrical Data | |
|---|---|
| Absorption capacity | 7.5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Sound pressure level max. | 88 dB(A) |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
