Pipe grinding machine
RSM 760
Handy and flexible for grinding, polishing and satin finishing
609,00
EUR excl. Tax / pc(s).
730,80 EUR incl. 20% Tax / pc(s).
730,80 EUR incl. 20% Tax / pc(s).
Promotional price *
539,00 EUR excl. Tax / pc(s).646,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 3990760
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Handy and flexible pipe grinder for locksmiths, metalworking and railing construction

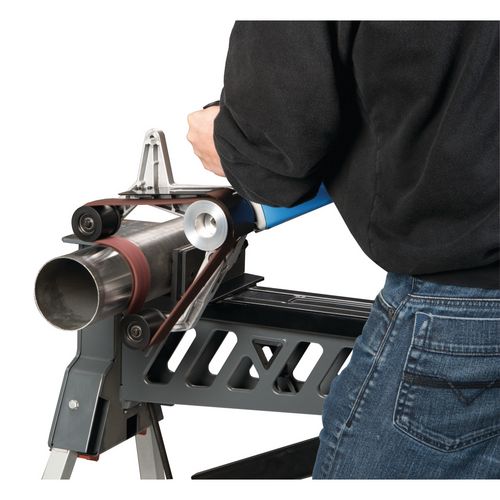

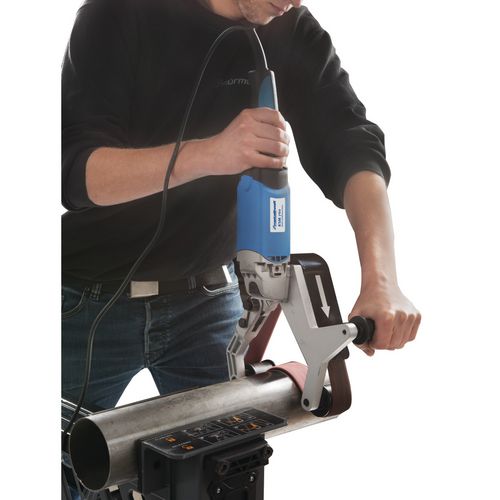

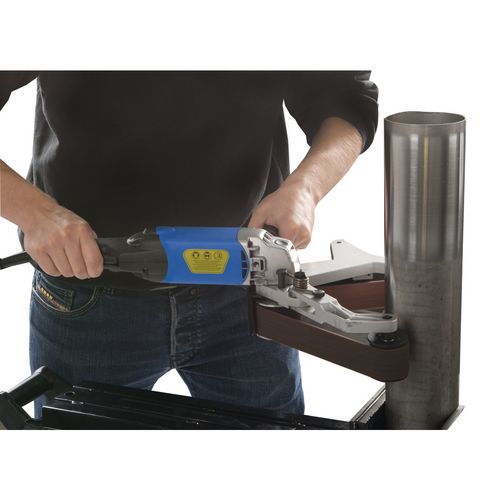

- Designed for grinding and polishing pipe constructions

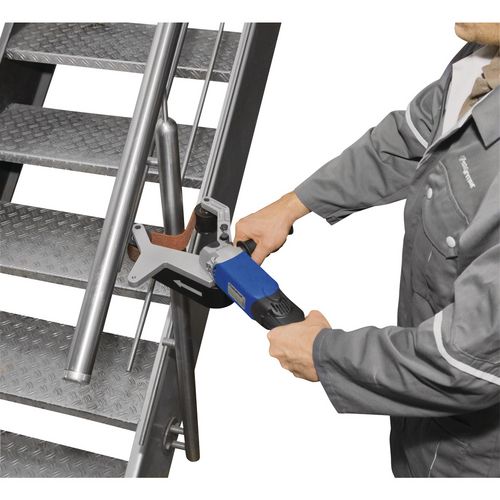

- Especially suitable for sanding, satin finishing and mirror polishing of already mounted railings
- Ideal for working in confined spaces, as the handle can be turned through 180 °
- Heavy duty motor with soft start and overload protection
- With constant electronics for consistent belt speed even under load
- With stepless adjustment of the belt speed for an optimal adaptation to the different applications
- Speed can be adjusted comfortably via the thumb wheel on the handle
- Simple, tool-free grinding belt change
- 360 ° circumferential grinding takes only two working steps

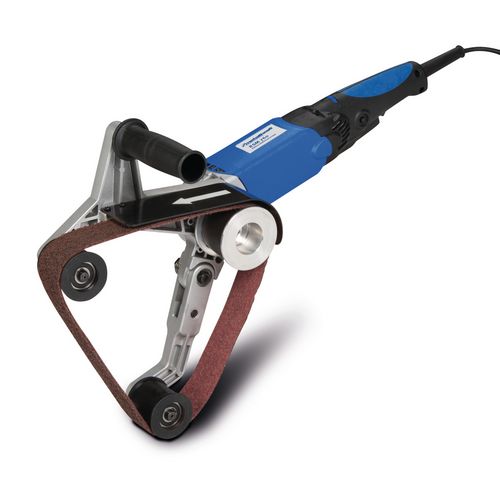

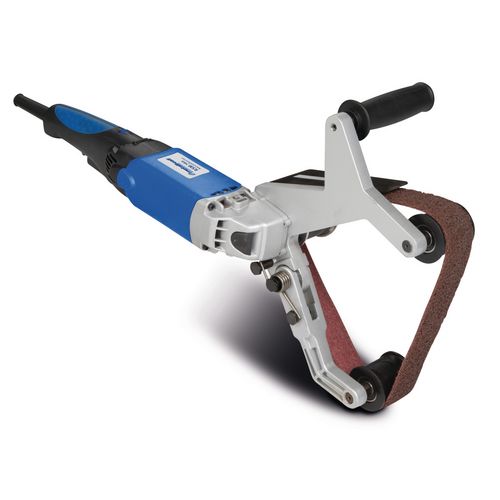

- High-quality 270 ° light metal arm with 2 pulleys
- Handle can be screwed in at three different positions for optimal handling
| Dimensions and weights | |
|---|---|
| Weight approx. | 3.4 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1,2 kW |
| Motor speed(s) | 1600 – 3200 min¯¹ |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Sanding machine | |
|---|---|
| Sanding belt length | 760 mm |
| Sanding belt width | 40 mm |
| Circumferential belt speed(s) | 3 – 12 m/s |
| Workpiece | |
|---|---|
| Min. pipe diameter | 15 mm |
| Max. pipe diameter | 180 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Plastic case
- Abrasive fleece coarse (40 x 760 mm)
- 5 pieces sanding belt K 120 (40 x 760 mm)
- 5 pieces sanding belt K 220 (40 x 760 mm)
