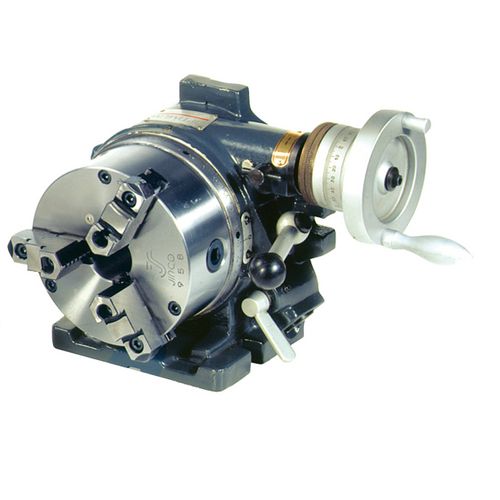

    Productimage for RTU 165
    Brandimage to Product RTU 165

    Horizontal-vertical rotary indexing table with 3-jaw chuck

    RTU 165

    Quality round table made of high-quality Meehanite cast

    1.379,00 EUR excl. Tax / pc(s).
    1.654,80 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3354165

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Precision cone roller bearings
    • Stability even under high stress
    • 24 positions (15° pitch)
    • Large spindle bore, for clamping longer workpieces
    • Three-jaw lining
    • Direct parts via latboards for higher production speed for mass parts
    • Including clamping disc with 3 grooves

    RTU 165

    • 24 divisions with direct part disc and angular degree parts over 360 degree angle scale - no groove, three-jaw lining mounted, with optional indirect partial disc swiel divisions in high number possible
    • Degree parts over 360° scale with crank and nonius



    • Degree indexing via 360° scale with crank and vernier scale



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Clamping surface diameter165 mm
    Closed height221 mm
    Max. height130 mm
    Passageway36 mm
    Direct indexing disc division24
    Indirect indexing disc division2, 3, 4, 6, 8, 12
    Indexing precision of direct indexer45 "
    Clamping optionsHorizontal and vertical
    VPE1
    Dimensions and weights
    Length approx.235 mm
    Width/depth approx.250 mm
    Weight approx.48 kg
    Unit: pc(s).
    Packaging unit: 1

    • 3-jaw chuck (mounted)
    • Clamping disc 203 mm with 3 grooves
    • Main indexing disk (24x division, mounted)
    • 6 Indexing disks
    • Grips for handwheel
