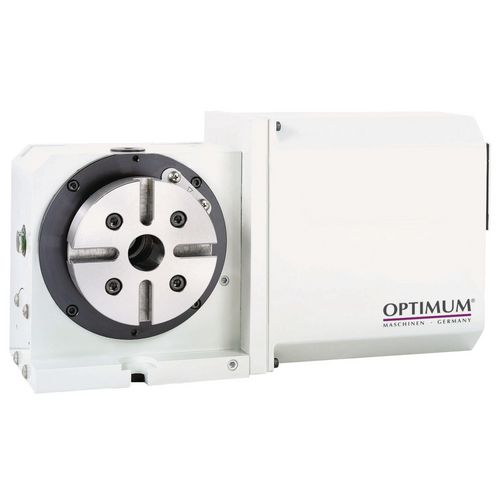

    Productimage for OPTImill F150-F410HSC
    Brandimage to Product OPTImill F150-F410HSC

    4-axis rotary dividing table

    OPTImill F150-F410HSC

    Price upon request

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3511290210

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Table diameter120 mm
    Centre height table vertical115 mm
    Horizontal table height170 mm
    Total vertical height193 mm
    Explanation Total vertical heightwithout motor cover
    Through hole30 mm
    T-slot width10 H7
    Slot width14 H7
    Servo motor typeSiemens
    Transmission ratio1:60
    Minimum step size0,001 °
    Maximum speed33.3 min¯¹
    Pneumatic clamping force120 Nm
    Explanation Pneumatic clamping forcewith connection to compressed air and 5 bar operating pressure
    Hydraulic clamping force240 Nm
    Explanation Hydraulic clamping forcewith connection to hydraulics and 20 bar operating pressure
    Parts accuracy30 "
    Unidirectional repeatability4 "
    Bidirectional repeatability12 "
    Max. tool weight vertical35 kg
    Max. tool weight horizontal75 kg
    VPE1
    Dimensions and weights
    Weight approx.28 kg
    Unit: pc(s).
    Packaging unit: 1

    • Three-jaw lathe chuck Ø 100 mm
    • tailstock
    • SIEMENS engine
    • Assembly
