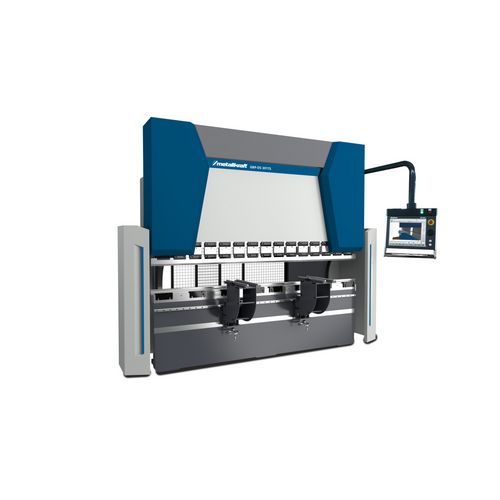

    Productimage for GBP DS 40220
    Brandimage to Product GBP DS 40220

    CNC-controlled, hydraulic press brake

    GBP DS 40220

    with graphic 2-D control

    Price upon request

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 4544004

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails



    Standard version:

    • Heavy and robust
    • welded steel construction
    • Optimized hydraulic unit with reduced noise level
    • Graphic 2D CNC control Cybelec CybTouch 15 with large 15" touch screen, ergonomically mounted on swivel arm
    • VisiTouch 2D offline software
    • Energy, environment and machine friendly ECO mode - automatic pump shutdown when not in use for several minutes X Y1, Y2 and X-axes CNC controlled
    • Motorized backgauge driven by backlash-free ball screws and solid guides
    • Two backgauge fingers manually adjustable in longitudinal direction on linear rail
    • Motorized table crowning, CNC controlled
    • Two adjustable front support arms
    • Promecam/Amada tooling system
    • Upper die clamping with lateral removal of dies
    • Simple die clamping via clamping plates
    • Complete set of sectioned dies
    • Slightly cranked upper die 85° with 104mm height
    • Quadruple die 85° with V-openings 16, 22, 35 and 50mm
    • Safety laser Fiessler AKAS II moving with the upper die Safety PLC Fiessler FMSC
    • Side and rear doors electronically monitored
    • High quality hydraulic and electronic components
    • Mobile double foot pedal
    • LED work area lighting
    • Oil filling

    Special accessories:

    • Various CNC controls (e.g.: Delem DA-66T or Delem DA-69T)
    • 4-, 5-, or 6-axis backgauge systems
    • Additional backgauge fingers
    • Hydraulic or pneumatic
      tool clamping system



    Pressing force220 t
    Bending length4050 mm
    Distance between columns3550 mm
    Stroke350 mm
    Rapid mode140 mm/s
    Bending speed10 mm/s
    Retraction130 mm/s
    Table height920 mm
    Table width98 mm
    X axis stroke750 mm
    X axis speed300 mm/s
    Oil tank capacity300 l
    VPE1
    Dimensions and weights
    Length approx.4740 mm
    Width/depth approx.2500 mm
    Height approx.3050 mm
    Weight approx.13200 kg
    Electrical Data
    Drive motor output22 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1







    CrowningCNC controlled
