| Pressing force | 100 t |
| Bending length | 3020 mm |
| Distance between columns | 2555 mm |
| Stroke | 300 mm |
| Rapid mode | 160 mm/s |
| Bending speed | 10 mm/s |
| Retraction | 150 mm/s |
| Table height | 900 mm |
| Table width | 98 mm |
| X axis stroke | 750 mm |
| X axis speed | 300 mm/s |
| Oil tank capacity | 190 l |
| VPE | 1 |

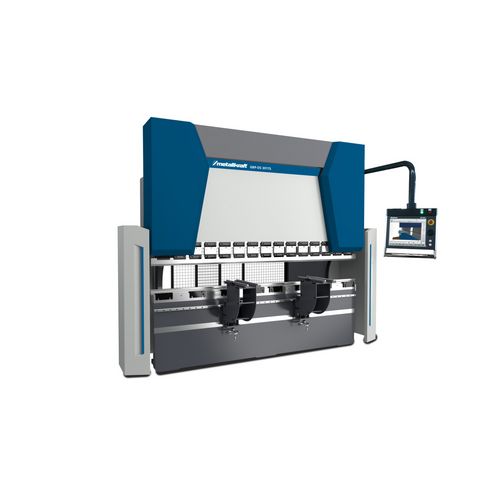

CNC-controlled, hydraulic press brake
GBP DS 30100
with graphic 2-D control
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4543001
Are you interested in this product?
Put a request
Find Trader
Productdetails
Standard version:
- Heavy and robust
- welded steel construction
- Optimized hydraulic unit with reduced noise level
- Graphic 2D CNC control Cybelec CybTouch 15 with large 15" touch screen, ergonomically mounted on swivel arm
- VisiTouch 2D offline software
- Energy, environment and machine friendly ECO mode - automatic pump shutdown when not in use for several minutes X Y1, Y2 and X-axes CNC controlled
- Motorized backgauge driven by backlash-free ball screws and solid guides
- Two backgauge fingers manually adjustable in longitudinal direction on linear rail
- Motorized table crowning, CNC controlled
- Two adjustable front support arms
- Promecam/Amada tooling system
- Upper die clamping with lateral removal of dies
- Simple die clamping via clamping plates
- Complete set of sectioned dies
- Slightly cranked upper die 85° with 104mm height
- Quadruple die 85° with V-openings 16, 22, 35 and 50mm
- Safety laser Fiessler AKAS II moving with the upper die Safety PLC Fiessler FMSC
- Side and rear doors electronically monitored
- High quality hydraulic and electronic components
- Mobile double foot pedal
- LED work area lighting
- Oil filling
Special accessories:
- Various CNC controls (e.g.: Delem DA-66T or Delem DA-69T)
- 4-, 5-, or 6-axis backgauge systems
- Additional backgauge fingers
- Hydraulic or pneumatic
tool clamping system
| Dimensions and weights | |
|---|---|
| Length approx. | 3725 mm |
| Width/depth approx. | 2550 mm |
| Height approx. | 2800 mm |
| Weight approx. | 8550 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 11 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Crowning | CNC controlled |
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
96103 Hallstadt
Deutschland / Germany
info@stuermer-maschinen.de
Dr.-Robert-Pfleger-Str. 26
96103 Hallstadt
Deutschland / Germany
info@stuermer-maschinen.de
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Optional parts
Optional parts can not be retrofitted and are available only when ordering new machines.
