| Rapid mode | 100 mm/s |
| Retraction | 80 mm/s |
| Table width | 98 mm |
| X axis stroke | 500 mm |
| X axis speed | 500 mm/s |

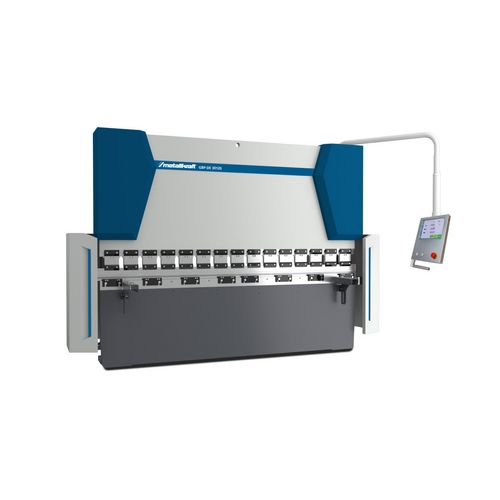

CNC-controlled, hydraulic press brake
GBP DE
With simple equipment
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Electrical Data | Price | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Pressing force (t) | Bending length (mm) | Distance between columns (mm) | Stroke (mm) | Bending speed (mm/s) | Table height (mm) | Oil tank capacity (l) | VPE | Length approx. (mm) | Width/depth approx. (mm) | Height approx. (mm) | Weight approx. (kg) | Drive motor output (kW) | EUR excl. Tax | EUR incl. 20% Tax | |
| GBP DE 2680 | 4552600 | 80 | 2600 | 2200 | 160 | 10 | 880 | 120 | 1 | 3230 | 1340 | 2160 | 5500 | 7.5 | Price upon request | - | |
| GBP DE 30120 | 4553000 | 125 | 3020 | 2650 | 200 | 10 | 900 | 120 | 1 | 3660 | 1340 | 2400 | 9600 | 11 | Price upon request | - | |
| GBP DE 30200 | 4553001 | 200 | 3020 | 2650 | 200 | 7,5 | 900 | 210 | 1 | 3680 | 1350 | 2460 | 11100 | 15 | Price upon request | - | |
Select Attributes
General
- Pressing force
- Bending length
- Distance between columns
- Stroke
- Bending speed
- Table height
- Oil tank capacity
- VPE
Dimensions and weights
- Length approx.
- Width/depth approx.
- Height approx.
- Weight approx.
Electrical Data
- Drive motor output
Price
- excl. Tax
- incl. 20% Tax
Productdetails
Standard design:
- Rugged welded steel construction
- Graphical 2D CNC control Cybelec CybTouch 12 with large 12" touch screen, ergonomically mounted on swivel arm
- Offline software VisiTouch 2D
- Energy- and environment- and machine-friendly ECO mode - automatic pump shutdown when not in use for several minutes
- Y1, Y2 and X axes CNC controlled
- Motorized backgauge driven by backlash-free ball screws and solid guides
- Two backgauge fingers manually adjustable in longitudinal direction on linear rail
- Motorized table crowning, CNC controlled
- Manual height adjustment of the stop fingers (R-axis)
- Two adjustable front support arms
- Promecam/Amada tooling system
- Upper die clamping with lateral removal of dies
- Simple die clamping via clamping plates
- Complete set of sectioned dies
- Light cranked upper die 85° with 104mm height
- Quadruple die 85° with V-openings 16, 22, 35 and 50mm
- Safety laser Fiessler AKAS II moving with the upper beam
- Safety PLC Fiessler FMSC
- Side and rear doors electronically monitored
- High quality hydraulic and electronic components
- Mobile double foot pedal
- Oil filling
Special accessories:
- Various CNC controls (e.g.: CybTouch 15, Delem DA-58T or DA-66T)
- Motorized R-axis
- Motorized Z1/Z2-axis
- Additional backgauge fingers
- Manual or motorized central lubrication
- Additional front support arms
- Second foot pedal for 2-man operation
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 – 60 Hz |
Unit: pc(s).
