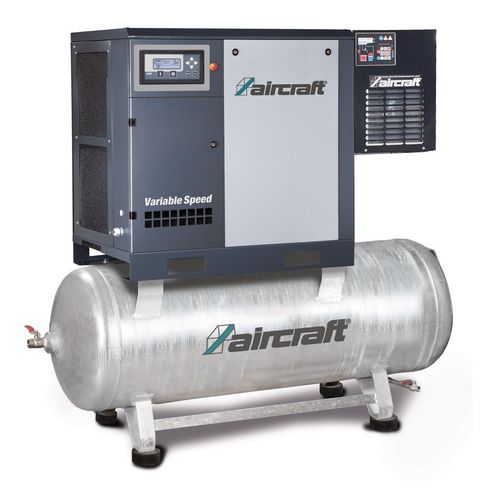

Direct coupled screw compressor
A-K-MAX 1110-500F K VS
With frequency control (SpeedTronic Control) for use in continuous operation and at 100% utilization
12.690,00
EUR excl. Tax / pc(s).
15.228,00
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2095774
Are you interested in this product?
Put a request
Find Trader
Productdetails

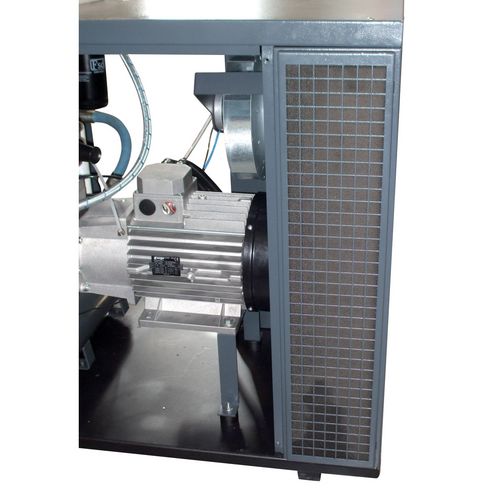

- Absolutely Low maintenance drive with maximum energy efficiency thanks to directly coupled coaxial screw compressor
- EasyTronic IV control as standard prevents motor overload, reduces wear and ensures a longer service life
- High cooling effect and Lower noise level thanks to the thermostatically controlled radial fan
- Longer service life of the device and less fluctuations in the oil temperature thanks to the thermostatically controlled fan, optimal cooling air flow and generously sized heat exchanger

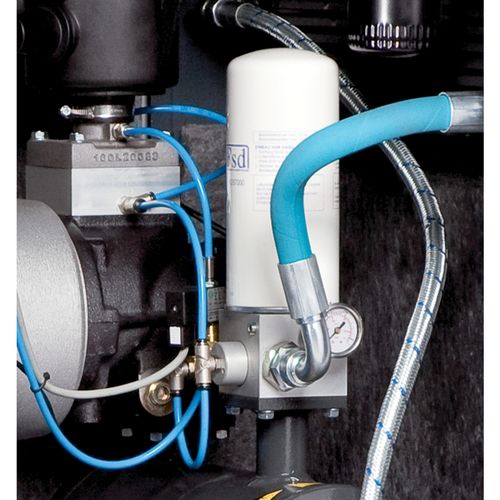

- Less effort for drying and filtering the generated compressed air Integrated aftercooler
- Guaranteed compliance with the maintenance intervals by recording the load and run-on times via the operating hours counter
- Display of the maintenance requirement via automatic notification
- Avoiding damage during commissioning or after changing location through integrated direction of rotation control for the motor
- Service-friendly due to optimal accessibility and simple assembly / disassembly of all components to be serviced
- Easy transport and assembly due to small external dimensions
- Monitoring as standard the engine and compressor speed through SpeedTronic Control control
- Fifteen-year guarantee against rusting through on the inside and outside of hot-dip galvanized compressed air tanks
Energy savings with frequency-controlled compressors:
Based on the frequency converter technology, the delivery quantity of the compressor adapts to the actual consumption. The electronic control monitors the engine and compressor speed and keeps the network pressure constant. The user receives advanced cutting-edge technology in the smallest of spaces.
Your advantages:
- Active energy saving
- Ideal for frequently changing compressed air consumption
- The speed-controlled compressor achieves maximum efficiency and keeps the network pressure constant, even when consumption fluctuates greatly.
| Effective delivery quantity of up to approx. | 620 1550 l/min |
| Maximum Pressure | 10 bar |
| Air outlet | 2 " |
| VPE | 1 |
| Compressed air tank | |
|---|---|
| Pressure vessel capacity | 500 l |
| Dimensions and weights | |
|---|---|
| Length approx. | 2000 mm |
| Width/depth approx. | 730 mm |
| Height approx. | 1700 mm |
| Weight approx. | 432 kg |
| Electrical Data | |
|---|---|
| Absorbed power electric motor | 11 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electrical |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 68 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Compressed air tank | Hot-dip galvanised inside and out |
| Drive transmission | Direct coupling |
| Compressor type | FSC 50 |
