| Compressed air tank | |
|---|---|
| Maximum pressure | 10 bar |
| Pressure vessel capacity | 200 l |
| Explanation Pressure vessel capacity | 2 x 100 l |
| Tank surface | Galvanised |

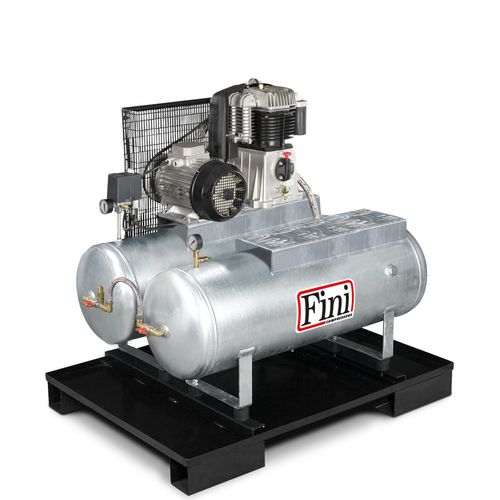

Stationary piston compressor with 2 x 100 liter compressed air tanks
AIRPROFI BK119-2X100F-7.5
Universal compressed air station with 2 x 100 L compressed air tanks ready mounted on a safety stand pallet, space-saving and transportable
3.359,00
EUR excl. Tax / pc(s).
4.030,80
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2773085
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Two-stage compression two-cylinder high-performance unit with gray cast iron cylinder block
- The low speed ensures quiet, low-vibration operation and a long service life
- Large fan wheel for optimal cooling
- Quality electric motors protected by motor circuit breaker from overheating and overload
- With phase inverter for easy manual reversal of the direction of rotation
- Intermediate and aftercooler reduces the formation of condensation
- Maintenance block with two manometers for tank pressure and working pressure and high quality CONDOR pressure switch
- Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank
- Tank in AD 2000 version
- Fully automatic on-off operation
- Ready for connection with all fittings
| Compressor | |
|---|---|
| Compressor system | HOS |
| Suction capacity approx. | 850 l/min |
| Filling capacity approx. | 680 l/min |
| Explanation filling capacity | at 6 bar working pressure |
| Number of cylinders | 2 |
| Number of compressor stages | 2 |
| Dimensions and weights | |
|---|---|
| Length approx. | 1200 mm |
| Width/depth approx. | 900 mm |
| Height approx. | 1140 mm |
| Weight approx. | 235 kg |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 83 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Drive transmission | V-belt |
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Optional parts
Optional parts can not be retrofitted and are available only when ordering new machines.
