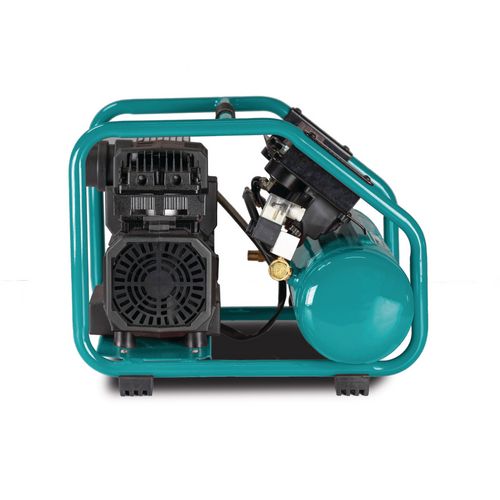

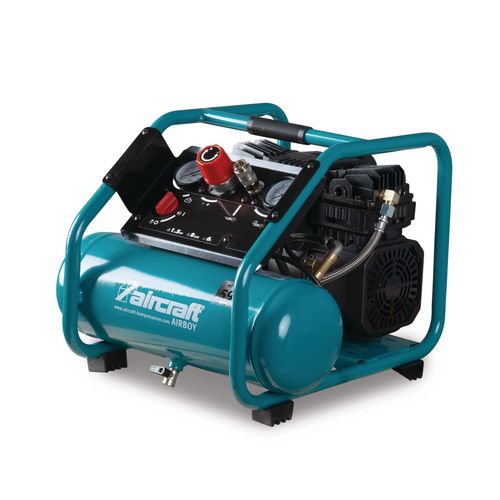

Piston compressor
AIRBOY SILENCE 171 OF E
Handy oil-free compressor with 8 bar maximum pressure
195,00
EUR excl. Tax / pc(s).
234,00 EUR incl. 20% Tax / pc(s).
234,00 EUR incl. 20% Tax / pc(s).
Promotional price *
175,00 EUR excl. Tax / pc(s).210,00 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 2001265
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Small, compact design
- Very smooth operation
- Oil-free piston compressor, thus no oil change necessary and no oil in the condensate
- Air sampling over a one-hand quick couplings
- Pressure regulator for stepless adjustment of the desired working pressure
- Based on a pressure gauge for display of the container and work pressure
- Electric motor equipped with motor protection switch
- Vibration damping rubber feet
- Rubberized handle to prevent it slipping off during transport
- Compressed air tank powder coated
| Compressed air tank | |
|---|---|
| Maximum pressure | 8 bar |
| Pressure vessel capacity | 6 l |
| Compressor | |
|---|---|
| Compressor system | WDS |
| Oil-free / oil-lubricated | Oil-free |
| Suction capacity approx. | 160 l/min |
| Filling capacity approx. | 77 l/min |
| Explanation filling capacity | at 6 bar working pressure |
| Number of cylinders | 2 |
| Number of compressor stages | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 445 mm |
| Width/depth approx. | 435 mm |
| Height approx. | 410 mm |
| Weight approx. | 20 kg |
| Electrical Data | |
|---|---|
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 59 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Pressure regulation | Pressure regulator |
| Automatic pressure switch | ✔ |
| Drive transmission | Direct-coupled |
| Compressed air outlet | A one-hand quick coupling |
| Pressure vessel | Powder-coated |
| Compressor base | Vibration damping rubber feet |
