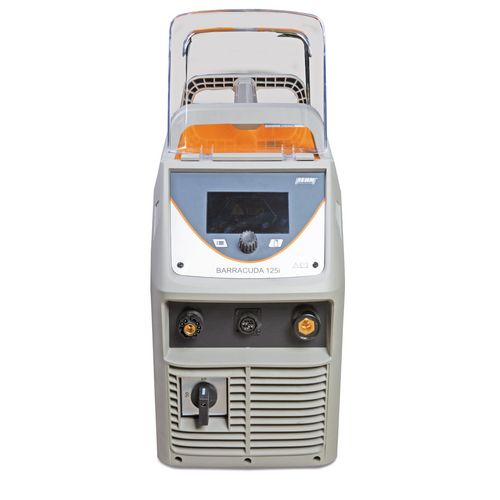

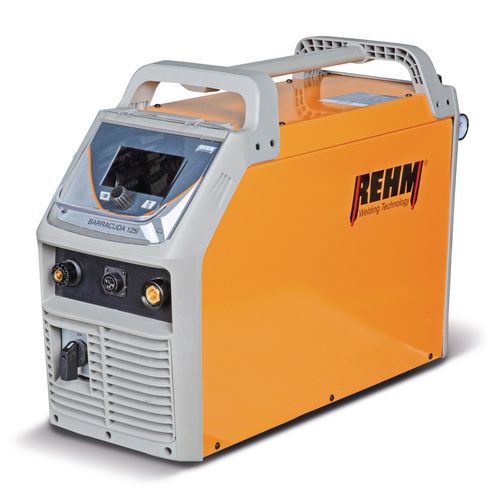

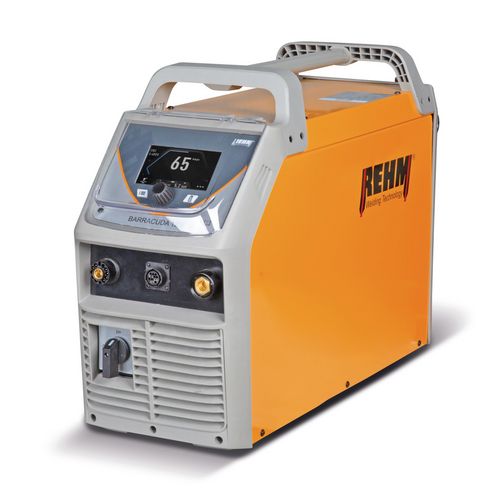

BARRACUDA 125i with torch Pluscut 105

Efficient and powerful

4.563,00 EUR excl. Tax / pc(s).
5.475,60 EUR incl. 20% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Sicherheitsdatenblatt 2

Safetydatasheet 2

Art.-No. 1301125

Are you interested in this product?

Put a request

Find Trader

Productdetails

Mobility, maximum economic efficiency and first-class cutting quality are the special features of the REHM plasma cutting systems.
The new compact BARRACUDA® is available in two sizes and four performance classes
Large dimensioned performance components and 100 percent tested quality guarantee the reliability of the BARRACUDA®.

Universally applicable

For unalloyed and high-alloyed steels, aluminum, copper, brass, bronze, nickel, non-ferrous metals and all other electrically conductive metals, also with painted surfaces
Optimum cutting quality and cut quality
Through precisely controlled, infinitely adjustable cutting current
Through optimized plasma cutting torches
With high power reserves - even at the critical end of the cut

Economical

Immediate start of cutting, the material can be cut without prior heating
High cutting speed combined with long tool life and best cutting quality
No technical gas required, only compressed air

Mobile

Suitable for use on generator
Compact design
Optimally portable on sturdy handle and a light weight

BARRACUDA® 45i with POWER FACTOR CONTROLLER (PFC)

Compliance with the new regulation EU 2019/1784
Highest energy efficiency
Worldwide use
Clean mains power consumption
Can be used anywhere

BARRACUDA® 45i with Eurocentral connection
BARRACUDA® 65i/105i/125i Connection of plasma torches via TRAFIMECTOR®: With 140 mm projection, one of the most compact connections on the market. Allows torch to be changed without tools.

No tools required
Can be operated with one hand
The connection is designed for 160A
TRAFIMECTOR® is connected with maximum operator safety

Data sheets
Sicherheitsdatenblatt 2
Safetydatasheet 2

Cutting performance
Quality cutting steel (ST37) max.	40 mm
Separating cut steel (ST37) max.	50 mm
Quality cutting stainless steel max.	35 mm
Separating cut stainless steel max.	40 mm
Quality cutting aluminium max.	35 mm
Separating cut aluminium max.	45 mm

Device data

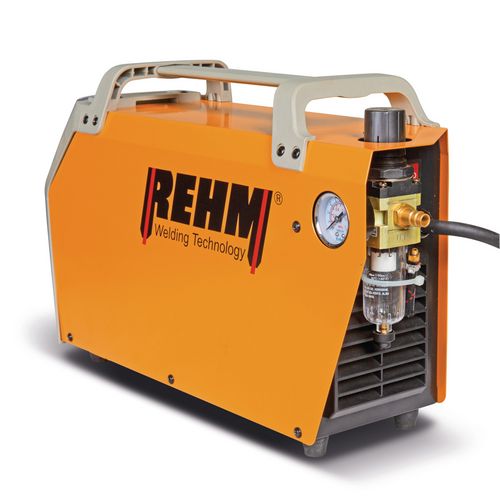

Air consumption	200 l/min
Pressure	5 bar

Dimensions and weights
Length approx.	740 mm
Width/depth approx.	260 mm
Height approx.	484 mm
Weight approx.	32.4 kg

Duty cycle
Duty cycle plasma	60 %
Current at 100% DC 40°C Plasma	95 A

Electrical connections
Input current	34.1 A

Electrical Data
Supply voltage	400 V
Mains frequency	50/60 Hz

Setting range
Adjusting range plasma approx.	20 – 120 A

Standards and certifications
Standard	EN 60974-1:2012, EN 60974-10:2014
EMC class	A
Explanation EMC class	This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system.
Marking	CE

VPE

Unit: pc(s).
Packaging unit: 1

Plasma torch Pluscut 105 6m
Ground cable 12mm² 4m with 300A ground clamp

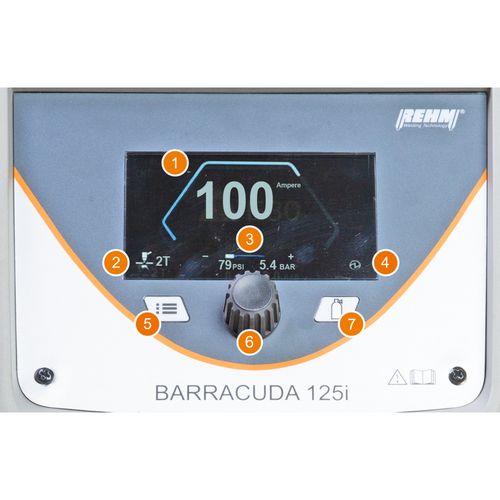

LC display	5 "
PFC operation	✔
Pilot ARC control	✔
Sealed board	✔
CNC interface	for machine connection
Perforated plate function	✔
Gouging function	✔
2-stroke function	✔
4-stroke function	✔
